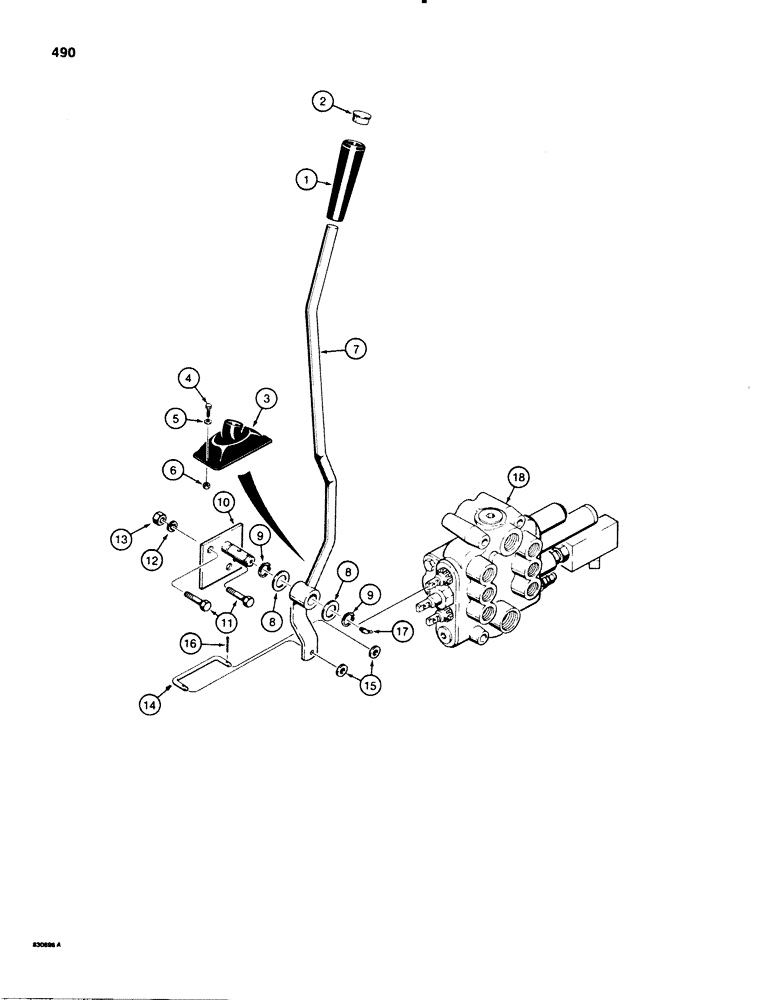

Запчасти Case 580SE (490) - LOADER CONTROLS - CLAM SPOOL (09) - CHASSIS/ATTACHMENTS

1

D91439

TUBE

KNOB control lever

1шт.

2

353-406

PLUG,Dome, .625" hole, Nylon

nylon, 5/8", control lever

1шт.

3

D72302

BOOT

control lever

1шт.

4

163-15

SCREW,Hex, #10 - 24 x 5/8"

hex head, machine, plated, No. 10 - 24 NC x 5/8"

2шт.

5

195-513

WASHER,#10

flat, plated, No. 10

2шт.

6

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT lock washer, plated, No. 10 - 4 NC

2шт.

7

D89889

LEVER

control, loader clam

1шт.

8

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER spacer

2шт.

9

D95097

RING, SNAP

RING snap, control lever retaining

2шт.

10

D92134

BRACKET

See Figure 488 for control valve mounting plate and related parts

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex head, plated, 3/8" - 16 NC x 3/4"

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

D122541

LINK

control lever to spool, rod type

1шт.

15

195-102

WASHER,1/4"

flat, plated, 1/4"

2шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

17

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 1/4" - 28 NF taper, 45°

1шт.

18

REF

INSTRUCTION

VALVE control, loader, Figure 392, for mounting See Figure 488

1шт.
