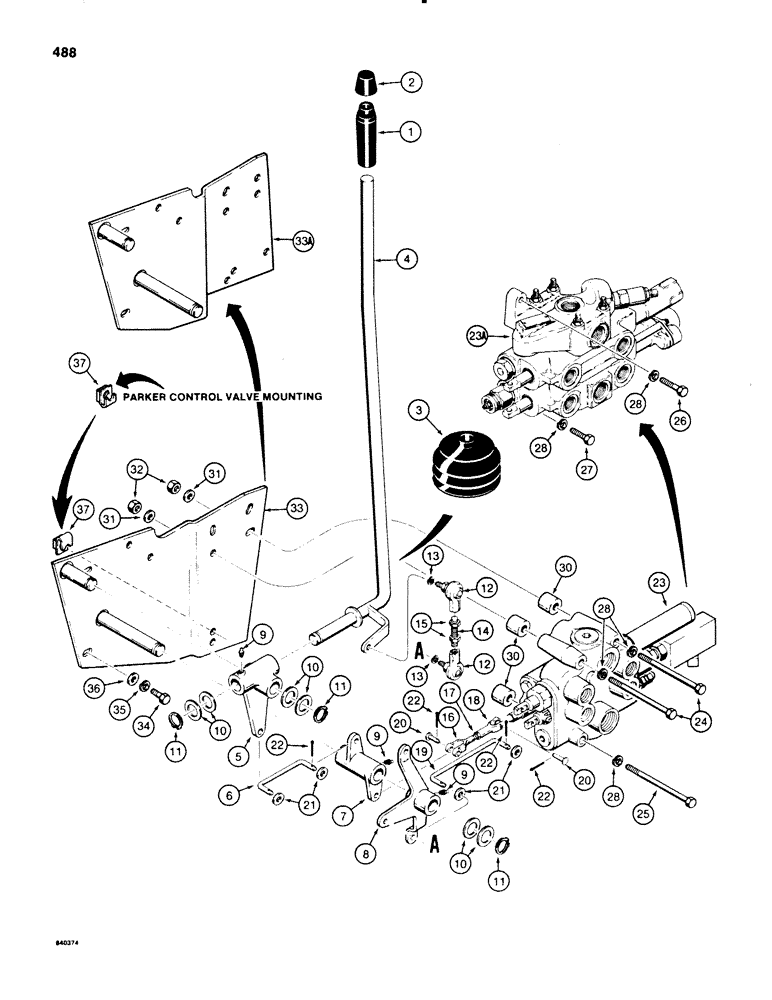

Запчасти Case 580SE (488) - LOADER CONTROLS - LIFT AND BUCKET SPOOLS (09) - CHASSIS/ATTACHMENTS

1

D91439

TUBE

KNOB control lever, See Figure 120 for clutch cutout switch and wire

1шт.

2

REF

INSTRUCTION

COVER switch, See Figure 120 or switch and cover

1шт.

3

D86664

BOOT

control lever

1шт.

4

D86502

LEVER

control, loader lift and bucket

1шт.

5

D86520

LEVER

pivot, loader lift

1шт.

6

D121193

LINK

lever to bellcrank, rod like

1шт.

7

D86484

CRANK

BELLCRANK loader lift

1шт.

8

D86491

CRANK

BELLCRANK loader bucket

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

3шт.

10

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

1шт.

11

D95097

RING, SNAP

RING snap, retaining

3шт.

12

D64925

JOINT

ball, bucket control

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

D86680

ROD

threaded

1шт.

15

129-123

NUT,3/8"-24, G5

2шт.

16

D93270

CLEVIS

male, loader lift

1шт.

17

129-122

NUT,5/16"-24, G5

1шт.

18

H44198

YOKE

CLEVIS female, metal, plated, Replaces fiberglass clevis on some models

1шт.

19

D121838

LINK

bucket spool, rod type

1шт.

20

D88430

PIN,7.9mm OD x 26.47mm L

clevis, lift and bucket control

2шт.

21

195-102

WASHER,1/4"

flat, plated, 1/4"

4шт.

22

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

23

REF

INSTRUCTION

VALVE control, loader, Parker, for correct assembly and components, See Figure 390 and 392

1шт.

23a

REF

INSTRUCTION

VALVE control, loader, Case, See Figure 406

1шт.

24

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

Upper mounting holes, used with Parker two or three spool control valve Hex, 3/8"-16 x 5", G5

2шт.

25

113-2238

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

Lower mounting hole, used with Parker two or three spool control valve Hex, 3/8"-16 x 5 1/4", G5

1шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Upper mounting hole, used with Case control valve Hex, 3/8"-16 x 1 1/2", G5

1шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Lower mounting holes, used with Case control valve Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

29

RESERVED

1шт.

30

D123696

SPACER

Parker, two or three spool control valve mounting only

3шт.

31

95-6

WASHER,3/8"

flat, 3/8"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

D92132

PLATE

valve mounting, used with Parker control valves

1шт.

33a

D123559

PLATE ASSY.

PLATE valve mounting, used with Case control valve

1шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

95-6

WASHER,3/8"

flat, 3/8"

2шт.

37

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

1шт.
