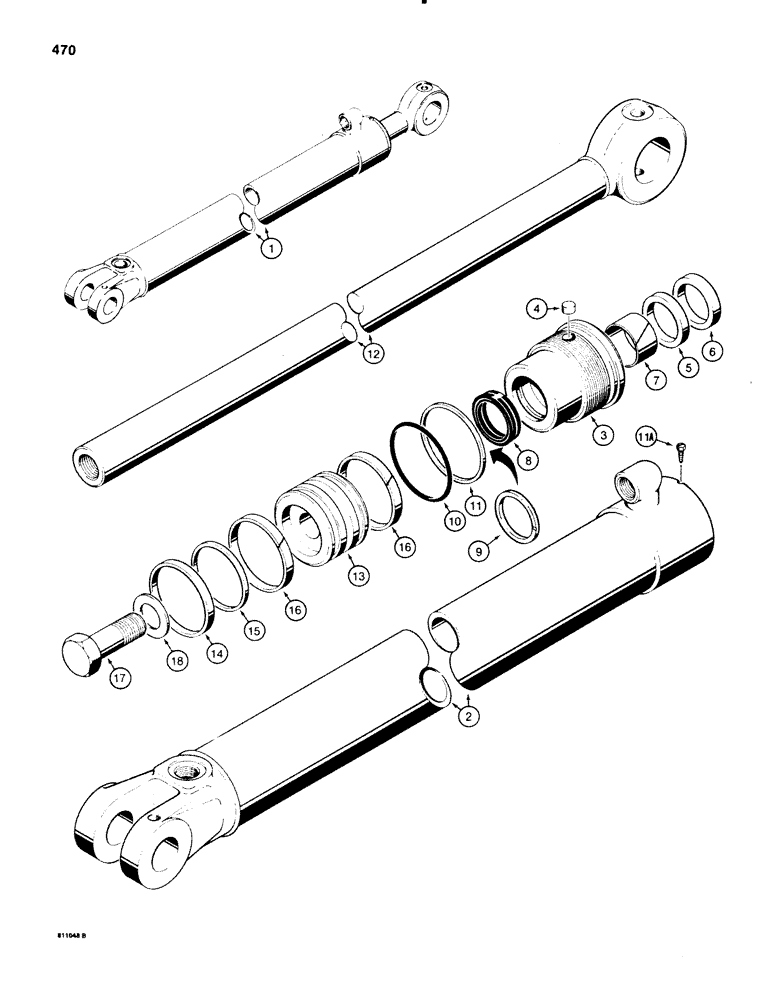

Запчасти Case 580SE (470) - G106168 BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

G106168

CYLINDER,Double Acting, 44.45mm Rod, 1062.99mm Stroke

ASSEMBLY, boom, 3-1/4" (83 mm) ID x 42-27/32" (1063 mm) stroke, Replaces: P/N G109339 cylinder used in production on some models, Includes: Ref. 2 - 18

2шт.

1

G106168R

REMAN-HYD CYLINDER

580SE CASE SUPER-E CONSTRUCTION KING LOADER BACKHOE, ASSEMBLY, boom

2шт.

1

G106168C

CORE-HYD CYLINDER

Return Number

2шт.

2

G106169

TUBE,3.25" DIA x 51.49" L

cylinder

1шт.

G107671

GLAND

ASSEMBLY, cylinder, Includes: Ref. 4 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining, bushing

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod, outer

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

u cup, piston rod, wide, with O ring

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

u cup, piston rod, service option for severe heat or cold

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

O RING gland

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland O ring

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self tapping, plated, No. 8 - 32 NC x 3/8", if used

1шт.

12

G33885

ROD

piston, 1-3/4" (44 mm) from end of rod to center of eye, 1.75" diameter, 2.00" ID

1шт.

13

G100642

PISTON

cylinder

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup, piston seal

1шт.

16

S109445

RING,82.55mm OD, Ext

wear, piston

2шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

hardened

1шт.

G109417

GASKET KIT

KIT, seal, Includes: Ref. 6, 7, 8, P/N G107922, 9, 10, 11 and 14 - 16

1шт.
