(020) - A170974 AIR CLEANER, MODELS WITHOUT TURBOCHARGED ENGINE

Запчасти Case 580SE (020) - A170974 AIR CLEANER, MODELS WITHOUT TURBOCHARGED ENGINE (02) - ENGINE

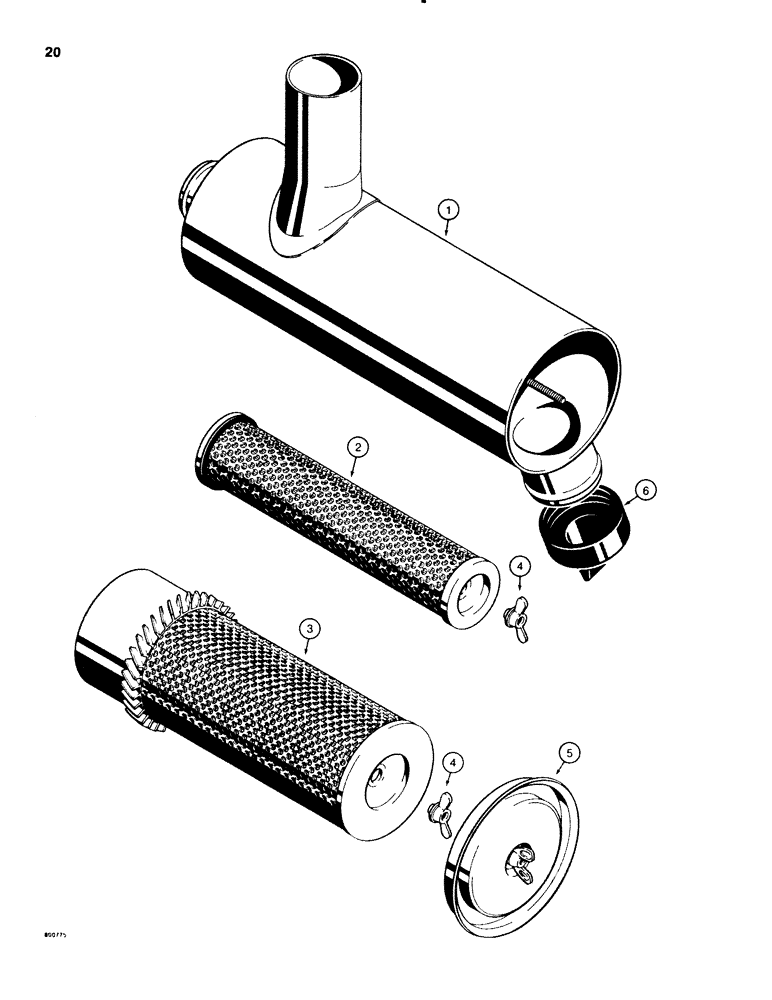

Схема запчастей Case 580SE - (020) - A170974 AIR CLEANER, MODELS WITHOUT TURBOCHARGED ENGINE (02) - ENGINE
2
1
6
4
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A170974

AIR CLEANER

ASSEMBLY, engine, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

2

N6777

FILTER, ELEMENT

ELEMENT secondary

1шт.

3

N6778

FILTER, ELEMENT

ELEMENT primary

1шт.

4

D78354

WING NUT

NUT wing, element and cover

2шт.

5

N6779

COVER

end

1шт.

6

S113982

CAP

VALVE dust, rubber

1шт.
