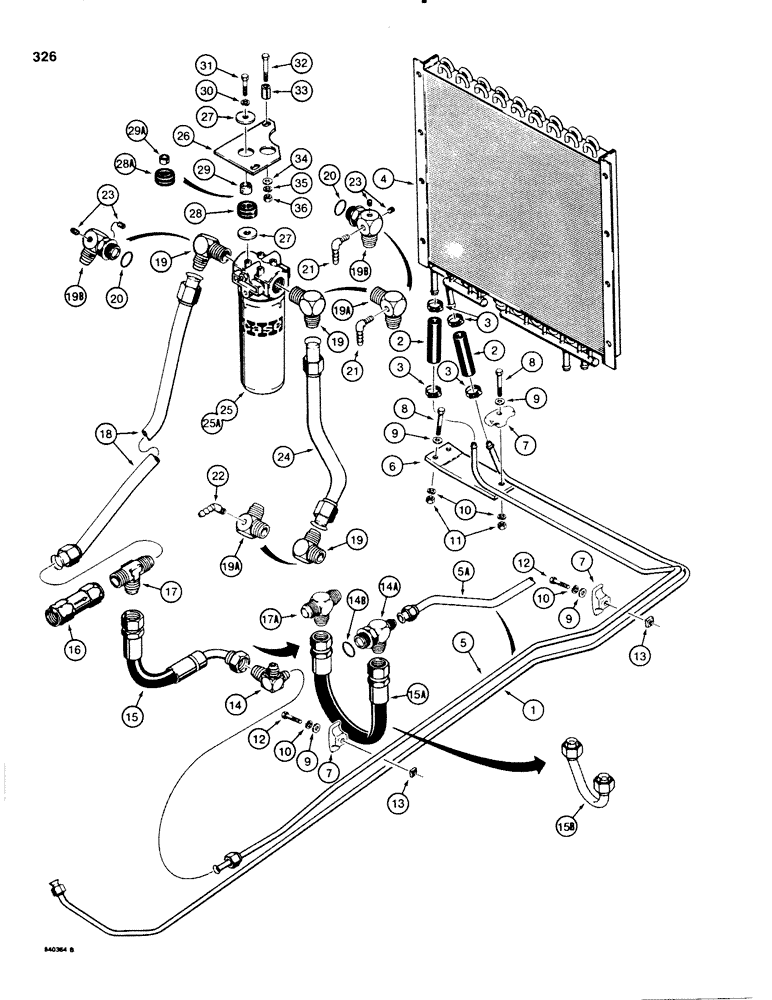

Запчасти Case 580SE (326) - EQUIP HYD SYSTEM, OIL COOLER LINES W/STRAIGHT CONN., RETURN LINES & FILTER, W/O TURBOCHARGED ENGINE (08) - HYDRAULICS

1

D128156

TUBE

, Serial Range: lower,-cooler

1шт.

2

REF

INSTRUCTION

HOSE, 1/2" (13 mm) ID x 4" (102 mm) long, oil cooler to tubes, cut from S118388 bulk, see below

2шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose

4шт.

4

A171876

COOLER ASSY.

COOLER oil, for oil cooler mounting and power shuttle cooling lines, See Figure 180

1шт.

5

D128157

TUBE

upper, from cooler, used with items 14, 15, and 17, if used

1шт.

5a

D128693

TUBE

upper, from cooler, used with items 14A, 15A, and 17A, if used

1шт.

6

D127123

BRACKET

tube mounting

1шт.

7

D120613

CLAMP,20mm ID

plastic, oil cooler tubes

3шт.

8

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

9

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

5шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

2шт.

14

D125458

TEE

special, used with items 5 and 15, if used

1шт.

14a

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

male, adjustable, connects to steering relief valve return port, See Figure 154, used with items 5A and 15A, if used, Includes: Ref. 14B

1шт.

14b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING tee

1шт.

15

D90273

HOSE

special, to main return tube, used with items 5, 14, 15, and 17, if used

1шт.

15a

D129650

TUBE

HOSE, 17-11/16" (450 mm) long, used with items 5A, 14A, and 17A, no longer used, order D134104 tube

1шт.

15b

D134104

TUBE

return, used with items 5A, 14A, and 17A

1шт.

16

D89332

VALVE

check, return line

1шт.

17

218-618

TEE,1 1/16"-12, 37º x 1"-11 1/2, NPTF Run

male, return line, used with item 15 hose, if used

1шт.

17a

218-1123

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Run

male, used with item 15A hose, if used

1шт.

18

D125130

TUBE ASSY.

TUBE, Serial Range: return,-filter

1шт.

19

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

90 degree, at filter and reservoir, if used

1-3шт.

19a

D71940

ELBOW

90 degree, at filter and reservoir, if used

1-2шт.

19b

D132008

ELBOW

90 degree, adjustable, used with D131293 oil filter with O ring ports, See Figure 456 for filter

2шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O RING D132008 elbow

1шт.

S118388

HOSE,0.50" ID x 168.00", SAE 100R3

Bulk 0.50" ID x 168.00", SAE 100R3

1шт.

21

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

barb, brass, 90 degree, used with D71940 elbow at filter, if used

1-2шт.

For further hydraulic related parts, see brake master cylinder hydraulic circuit on Figure 292.

1шт.

22

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Brass, used with D71940 elbow at reservoir, if used 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

For further hydraulic related parts, see brake master cylinder hydraulic circuit on Figure 292.

1шт.

23

221-849

PLUG,Hex Soc, 1/8"-27

hex socket head, 1/8" NPT, used with D132008 elbow

3шт.

24

D125132

TUBE ASSY.

TUBE, Serial Range: filter-reservoir

1шт.

25

D122362

FILTER

hydraulic oil, without O ring ports, See Figure 456

1шт.

25a

D131293

FILTER

hydraulic oil, with O ring ports, See Figure 456

1шт.

26

D125598

PLATE

BRACKET filter mounting

1шт.

27

195-2042

WASHER,.469" x 1 1/2" x .134"

flat, special, 7/16"

4шт.

28

D67915

GROMMET

filter mounting bracket, 7/8" ID, used with item 29 spacer, if used

2шт.

28a

D132895

GROMMET

filter mounting bracket, 5/8" ID, used with item 29A spacer, if used

2шт.

29

D89934

BUSHING

SPACER filter mounting, 7/8" OD x 7/32" thick, used with item 28 grommet, if used

2шт.

29a

D76209

SPACER

split, filter mounting, 5/8" OD x 1/8" thick, used with item 28A grommet, if used

2шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

33

D76210

SPACER

filter bracket

2шт.

34

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
