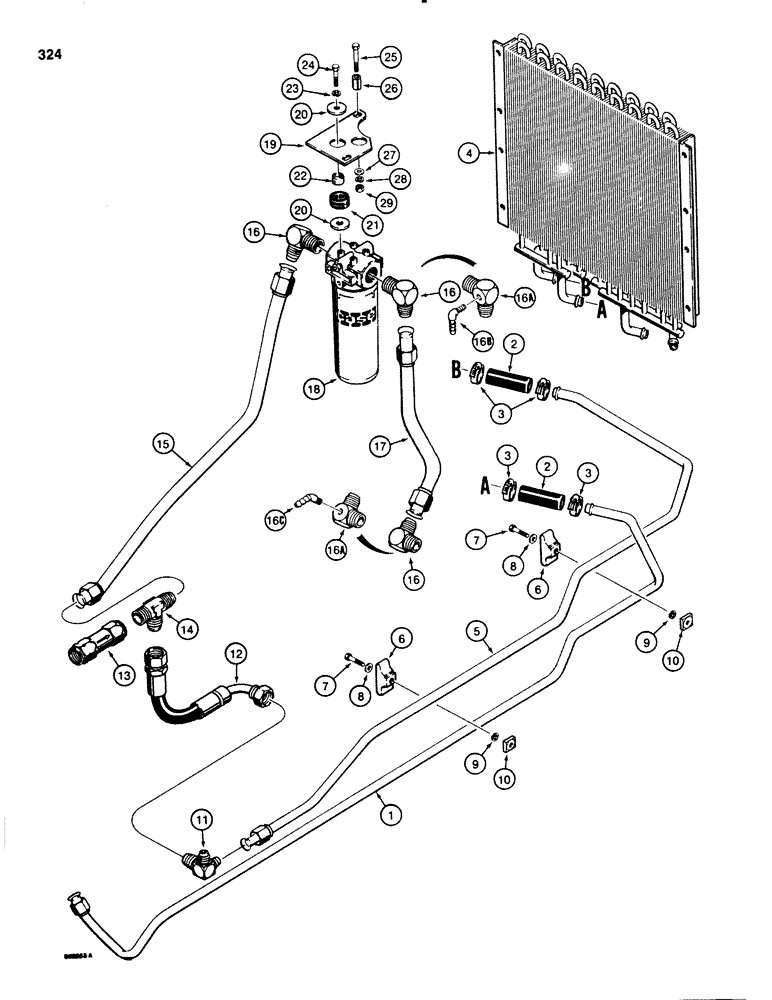

Запчасти Case 580SE (324) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES W/ANGLED CONNECTIONS, RETURN LINES & FILTER (08) - HYDRAULICS

1

D124379

TUBE ASSY.

TUBE, Serial Range: lower,-cooler

1шт.

2

D125080

HYDRAULIC HOSE,15.88 mm ID x 150.00 mm

15.90 mm ID x 150.00 mm, Oil Cooler to Tubes

2шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose

4шт.

4

A171130

OIL COOLER

COOLER oil, for oil cooler mounting and power shuttle cooling lines, See Figures 176 and 178

1шт.

5

D124381

TUBE ASSY.

TUBE upper, from cooler

1шт.

6

D120613

CLAMP,20mm ID

plastic, oil cooler tubes

2шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

8

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

2шт.

11

D125458

TEE

special

1шт.

12

D90273

HOSE

special, to main return tube

1шт.

13

D89332

VALVE

check, return line

1шт.

14

218-618

TEE,1 1/16"-12, 37º x 1"-11 1/2, NPTF Run

male, return line

1шт.

15

D125130

TUBE ASSY.

TUBE, Serial Range: return,-filter

1шт.

16

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

90 degree, at filter and reservoir, if used

1-3шт.

16a

D71940

ELBOW

90 degree, at filter and reservoir, if used

2шт.

16b

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

barb, brass, 90 degree, if used

1шт.

For further hydraulic related parts, see brake master cylinder hydraulic circuit on Figure 292.

1шт.

16c

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Brass, if used 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

For further hydraulic related parts, see brake master cylinder hydraulic circuit on Figure 292.

1шт.

17

D125132

TUBE ASSY.

TUBE, Serial Range: filter-reservoir

1шт.

18

D122362

FILTER

hydraulic oil, See Figure 456

1шт.

19

D125598

PLATE

BRACKET filter mounting

1шт.

20

195-2042

WASHER,.469" x 1 1/2" x .134"

flat, special, 7/16"

4шт.

21

D67915

GROMMET

filter mounting bracket

2шт.

22

D89934

BUSHING

SPACER filter mounting

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

25

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

26

D76210

SPACER

filter bracket

2шт.

27

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
