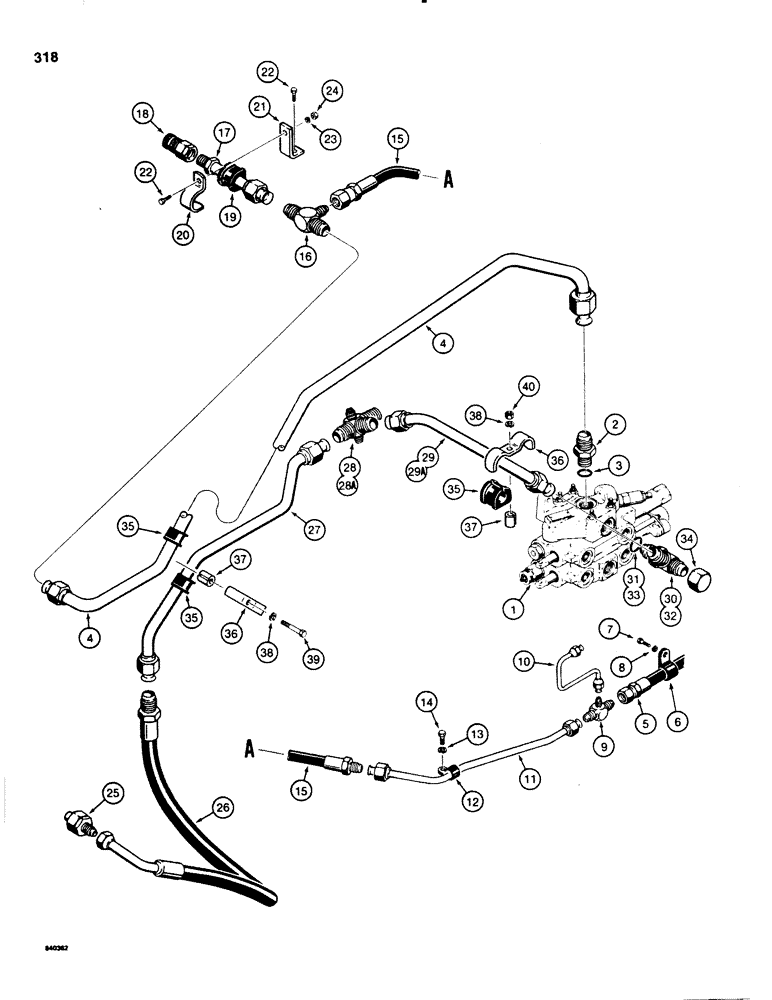

Запчасти Case 580SE (318) - EQUIPMENT HYDRAULIC SYSTEM, REAR EQUIPMENT LINES, USED WITH CASE LOADER CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, loader, Case, See Figure 406

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, power beyond, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING adapter

1шт.

4

D123553

TUBE ASSY.

, Serial Range: TUBE-backhoe

1шт.

5

D89556

HOSE

29-1/2" (750 mm) long, from steering control valve, See Figure 154 item 16

1шт.

6

R14668

CLAMP

steering control valve, Serial Range: hose-frame

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9

218-1581

TEE,37º, 3/4"-16 x 7/16"-20, Br

male, steering hose to backhoe

1шт.

10

D122814

TUBE

tee to relief valve

1шт.

11

D120001

TUBE ASSY.

TUBE, Serial Range: hose-tee

1шт.

12

49771

CLAMP

p type

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

15

37318

HOSE ASSY.

HOSE, 1/2" (13 mm) ID x 16-1/2" (419 mm), Serial Range: long,-backhoe

1шт.

16

218-588

TEE,37 Degree, 1 5/16"-12 x 7/8"-14, Br

male, backhoe pressure line, for three point hitch connecting parts, See Figure 322

1шт.

17

D90402

HYD TUBE,25.4 mm OD x 150 mm L

TUBE to hydraulic coupling

1шт.

18

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT coupling, hydraulic, female, See Figure 458

1шт.

19

D67297

BLOCK

INSULATOR tube clamp

1шт.

20

D68846

CLAMP

tube

1шт.

21

D65647

BRACKET

used with D68846 clamp

1шт.

22

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex head, grade 8, 3/8" - 16 NC x 1"

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

D90260

FITTING

QUICK DISCONNECT coupling, hydraulic, male, See Figure 458

1шт.

26

D89646

TUBE,19.05mm ID x 850mm L, SAE 100R2

HOSE special, from coupling

1шт.

27

D120005

TUBE ASSY.

TUBE backhoe return

1шт.

28

D124952

TEE

MANIFOLD male fitting, special, if used

1шт.

28a

D126802

ELBOW

MANIFOLD male fitting, special, used with D126801 tube, if used

1шт.

29

D123557

TUBE

to control valve, no longer used, for service order D126801 tube, D126802 tee, and 218-5239 tee

1шт.

29a

D126801

TUBE

to control valve, clamping hardware not used with this tube

1шт.

30

218-5298

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run

adjustable, control valve, if used, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING tee

1шт.

32

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, used with D126801 tube, if used, Includes: Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING tee

1шт.

34

218-335

CAP,37 Degree, 1 1/16"-12

hex, 3/4" tube OD x 1-1/16" - 12 NF thread, 218-5298 or 218-5239 tee

1шт.

35

D67297

BLOCK

INSULATOR tube clamps

2-4шт.

36

D83594

CLAMP

double tube

1-2шт.

37

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

double tube clamps

1-2шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1-2шт.

39

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

1шт.
