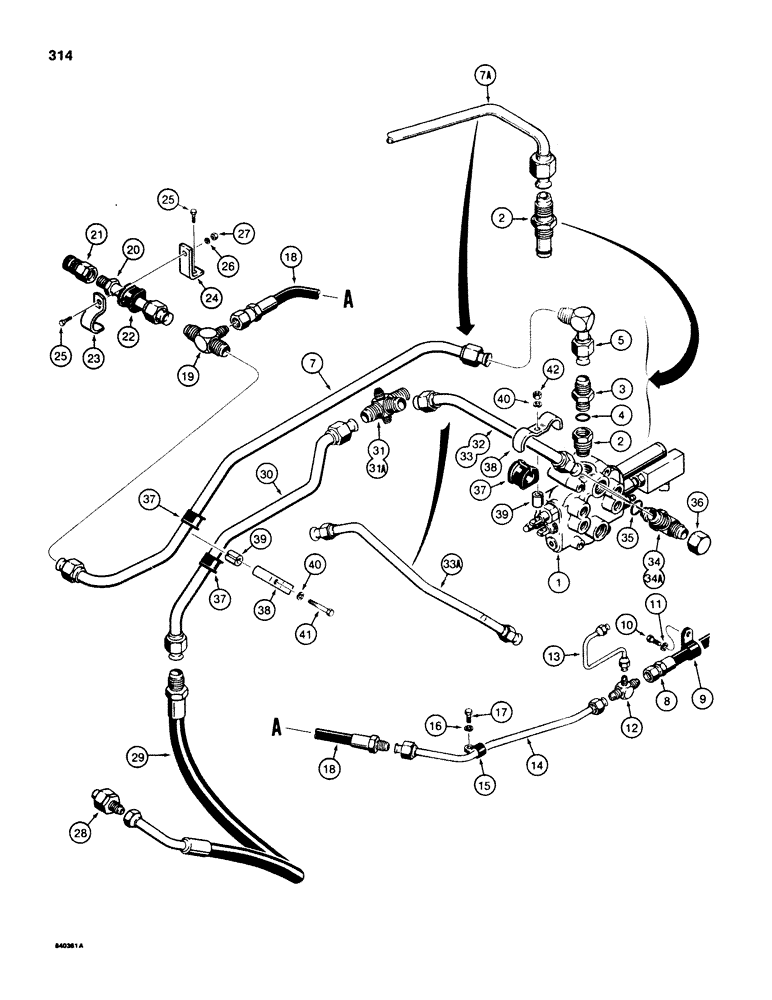

Запчасти Case 580SE (314) - EQUIPMENT HYDRAULIC SYSTEM, REAR EQUIPMENT LINES, USED WITH PARKER LOADER CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, loader, Parker, for correct assembly and components, See Figures 390 and 392

1шт.

2

REF

INSTRUCTION

SLEEVE power beyond, for correct assembly and components, See Figures 390 and 392

1шт.

3

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, used with three spool control valve only, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING adapter

1шт.

5

D93831

FITTING

ELBOW, 90 degree, used with three spool control valve

1шт.

6

RESERVED

1шт.

7

D120003

TUBE ASSY.

TUBE to backhoe, used with three spool control valve

1шт.

7a

D92651

HYD TUBE,25.4 mm OD x 906, 536 mm L

TUBE to backhoe, used with two spool control valve

1шт.

8

D89556

HOSE

29-1/2" (750 mm) long, from steering control valve, See Figure 154, item 16

1шт.

9

R14668

CLAMP

steering control valve, Serial Range: hose-frame

1шт.

10

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

12

218-1581

TEE,37º, 3/4"-16 x 7/16"-20, Br

male, steering hose to backhoe

1шт.

13

D122814

TUBE

tee to relief valve

1шт.

14

D120001

TUBE ASSY.

TUBE, Serial Range: hose-tee

1шт.

15

49771

CLAMP

p type

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

18

37318

HOSE ASSY.

HOSE, 1/2" (13 mm) ID x 16-1/2" (419 mm), Serial Range: long,-backhoe

1шт.

19

218-588

TEE,37 Degree, 1 5/16"-12 x 7/8"-14, Br

male, backhoe pressure line, for three point hitch connecting parts, See Figure 322

1шт.

20

D90402

HYD TUBE,25.4 mm OD x 150 mm L

TUBE to hydraulic coupling

1шт.

21

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT coupling, hydraulic, female, See Figure 458

1шт.

22

D67297

BLOCK

INSULATOR tube clamp

1шт.

23

D68846

CLAMP

tube

1шт.

24

D65647

BRACKET

used with D68846 clamp

1шт.

25

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex head, grade 8, 3/8" - 16 NC x 1"

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

D90260

FITTING

QUICK DISCONNECT coupling, hydraulic, male, See Figure 458

1шт.

29

D89646

TUBE,19.05mm ID x 850mm L, SAE 100R2

HOSE special, from coupling

1шт.

30

D120005

TUBE ASSY.

TUBE backhoe return

1шт.

31

D124952

TEE

MANIFOLD male fitting, used with D86783 tube or D90103 tube, items 32 or 33

1шт.

31a

D126802

ELBOW

MANIFOLD male fitting, used with D126801 tube, item 33A

1шт.

32

D86783

TUBE

to two spool control valve

1шт.

33

D90103

HYD TUBE,25.4 mm OD x 101, 324 mm L

TUBE to three spool control valve, 1" tube OD, if used

1шт.

33a

D126801

TUBE

to three spool control valve, 3/4" tube OD, if used

1шт.

34

218-5298

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run

adjustable, control valves, used with D86783 or D90103 tube, items 32 or 33

1шт.

34a

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, control valve, used with D126801 tube, item 33A, Includes: Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING 218-5298 or 218-5239 tee

1шт.

36

218-335

CAP,37 Degree, 1 1/16"-12

hex, tee, 3/4" tube OD x 1-1/16" - 12 NF thread

1шт.

37

D67297

BLOCK

INSULATOR tube clamps

4шт.

38

D83594

CLAMP

double tube

2шт.

39

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

double tube clamps

2шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

41

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
