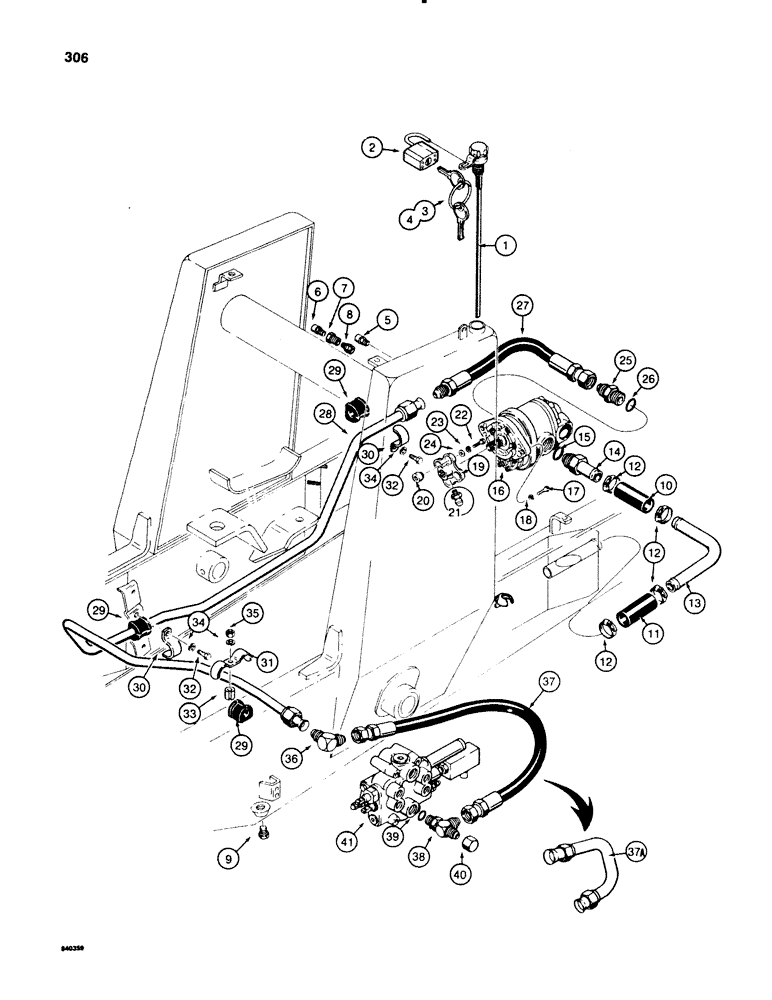

Запчасти Case 580SE (306) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO PARKER LOADER CONTROL VALVE (08) - HYDRAULICS

1

D94386

DIPSTICK

reservoir

1шт.

2

D93753

PADLOCK

includes keys, if used, Includes: Ref. 3 - 4

1шт.

3

R29555

KEY

for Master padlock only

2шт.

4

D93751

SET OF 2 KEYS

KEY for Yale padlock only

2шт.

5

D94060

VALVE

relief, air outlet

1шт.

6

R15538

VALVE

BREATHER air inlet

1шт.

7

D63506

ADAPTER

relief valve

1шт.

8

D63543

BREATHER

FILTER relief valve

1шт.

9

D123893

PLUG

drain, reservoir, hex head, 3/4" NPT

1шт.

10

REF

INSTRUCTION

HOSE suction, 1-1/4" (32 mm) ID x 4" (102 mm) long, cut to required length from

1шт.

D33365, see below

1шт.

11

REF

INSTRUCTION

HOSE suction, 1-1/4" (32 mm) ID x 5" (127 mm) long, cut to required length from

1шт.

D33365, see below

1шт.

12

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

13

D89585

HYD TUBE,31.8 mm OD x 190, 206 mm L

TUBE suction

1шт.

14

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

stem, straight, at pump, Incl. Ref. 15

1шт.

15

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

O RING stem fitting

1шт.

16

REF

INSTRUCTION

PUMP hydraulic, See Figure 388

1шт.

17

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

D90883

SPLINED COUPLING

COUPLING hydraulic pump, Includes: Ref. 20 - 21

1шт.

20

A45216

BUSHING

coupling

4шт.

21

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4"-28 NF

1шт.

22

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

23

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

24

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

flat, special

4шт.

25

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, male, Incl. Ref. 26

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O RING adapter

1шт.

27

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

pump pressure, 20" (508 mm) long

1шт.

28

D123555

TUBE ASSY.

TUBE pressure

1шт.

29

D67297

BLOCK

INSULATOR, Serial Range: tube-clamp

4шт.

30

D68846

CLAMP

tube, single

2шт.

31

D83594

CLAMP

tube, double

1шт.

32

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

33

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

double clamp

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

D33365

HOSE

1-1/4" (32 mm) ID x 18-1/2" (470 mm) long

1шт.

36

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

90 degree

1шт.

37

D86791

HOSE

23-5/8" (600 mm) long, to loader control valve, if used

1шт.

37a

D121553

LINE

TUBE used with two or three spool control valve, if used

1шт.

38

218-5298

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run

adjustable, valve inlet, Includes: Ref. 39

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING tee

1шт.

40

218-335

CAP,37 Degree, 1 1/16"-12

hex, tee, 3/4" tube OD x 1-1/16" - 12 NF thread

1шт.

41

REF

INSTRUCTION

VALVE control, loader, Parker, for correct assembly and components, See Figures 390 and 392

1шт.
