Запчасти Case 580SE (284) - TRANSAXLE PARK BRAKE, TWO WHEEL DRIVE, TRANSMISSION SERIAL NO 16270319 AND AFTER (06) - POWER TRAIN

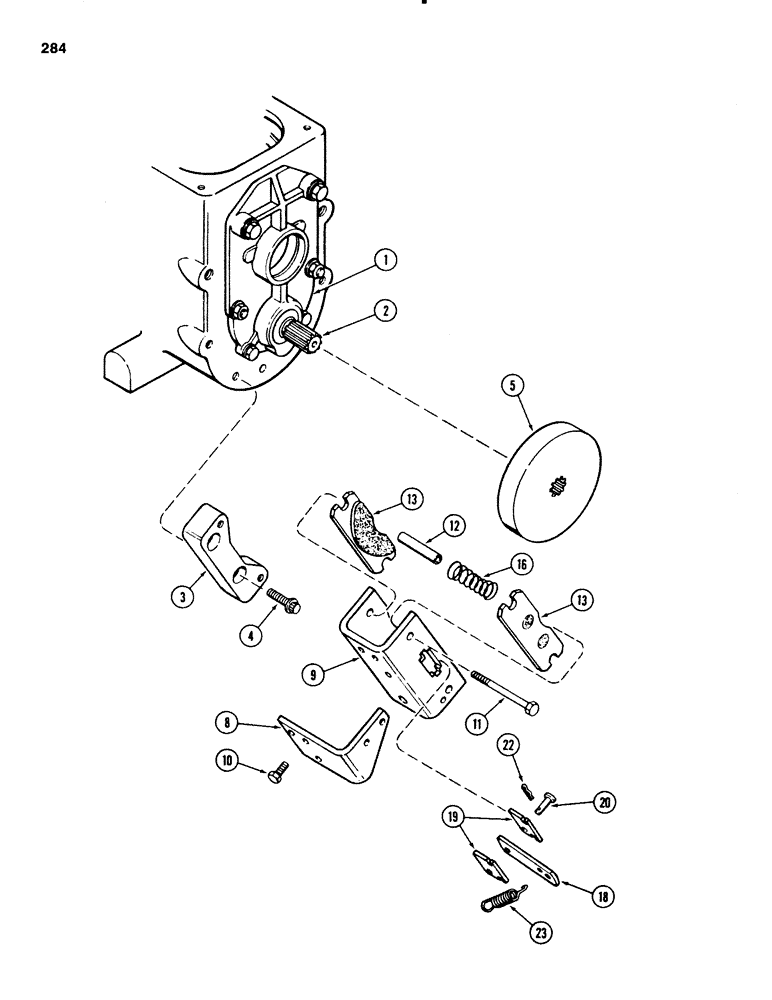

Схема запчастей Case 580SE - (284) - TRANSAXLE PARK BRAKE, TWO WHEEL DRIVE, TRANSMISSION SERIAL NO 16270319 AND AFTER (06) - POWER TRAIN
18
2
13
10
4
3
20
8
16
12
19
23
22
1
13
11
9
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

COVER front, transmission, See Figure 240

1шт.

2

REF

INSTRUCTION

SHAFT counter, See Figure 254

1шт.

3

A179065

LARGE PLATE

PLATE mounting, brake

1шт.

4

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

12 point flanged head, 1/2 NC x 1-1/2 inch

2шт.

5

A168790

DISC

brake, caliper

1шт.

A182271

BRAKE

ASSEMBLY, park, Includes: Ref, 8 - 23

1шт.

8

A52380

BRACKET

mounting, cable

1шт.

9

A52256

HOUSING

brake

1шт.

10

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

3шт.

11

A52263

BOLT

retaining, brake

2шт.

12

A52261

SPACER

stator

2шт.

13

A52255

PAD

brake

2шт.

16

A52262

SPRING

compression

2шт.

18

A52379

LEVER

actuating

1шт.

19

A52257

PIVOT

PLATE pivot

2шт.

20

A52259

PIN

clevis, pivot

1шт.

22

A52260

PIN

retainer, pivot pin

1шт.

23

A52264

SPRING

extension

1шт.

Выбрано товаров: 18
