Запчасти Case 580SE (262) - TRANSAXLE REAR AXLE (06) - POWER TRAIN

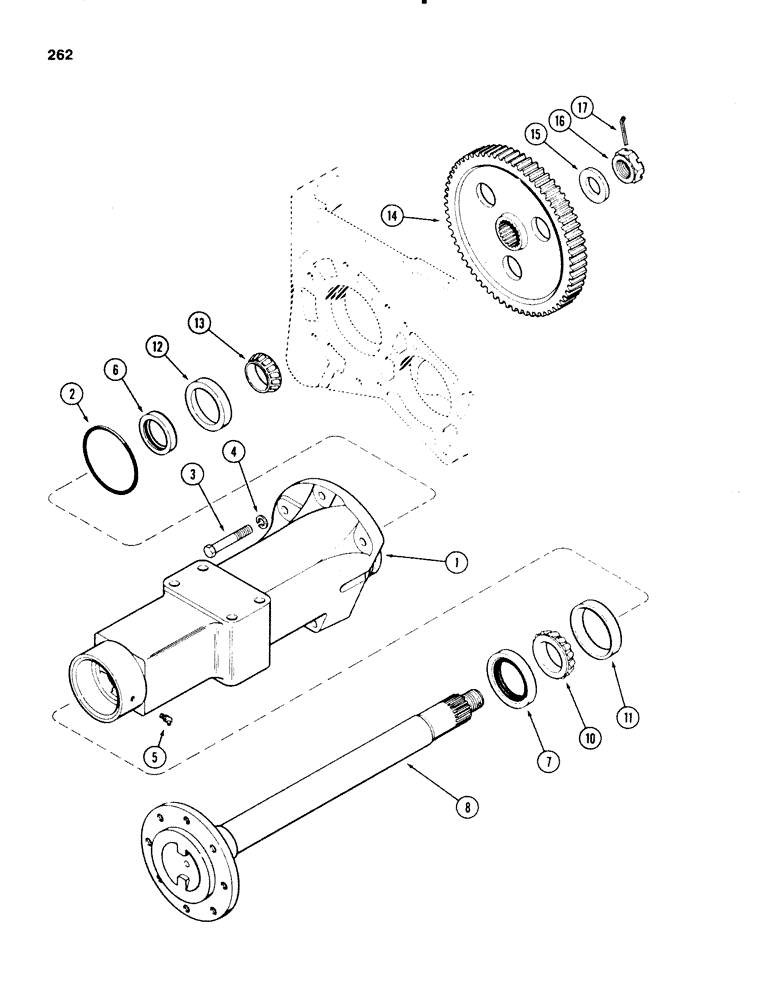

Схема запчастей Case 580SE - (262) - TRANSAXLE REAR AXLE (06) - POWER TRAIN
6
16
4
11
5
10
3
7
15
12
8
13
1
14
2
17

Артикул

Название

Примечание

Количество

1

A153737

HOUSING

axle, right hand

1шт.

1

A153738

HOUSING

axle, left hand, right hand shown

1шт.

2

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O RING axle housing to transmission case

2шт.

3

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex, Grade 8, 5/8 NC x 2 inch

2шт.

3

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

hex, Grade 8, 5/8 NC x 2-1/4 inch

6шт.

3

26-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex, Grade 8, 5/8 NC x 4 inch

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degrees, 1/8 inch PT

2шт.

6

G13801

OIL SEAL

oil, inner, 2-1/4 inch (57 mm) ID

2шт.

7

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

oil, outer, 3 inch (76 mm) ID

2шт.

8

A154936

SHAFT

rear axle

2шт.

10

G15207

ROLLER BEARING

CONE bearing, outer, 2-5/8 inch ID (67 mm)

2шт.

11

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP bearing, outer, 4-11/32 inch OD (110 mm)

2шт.

12

G10415

BEARING CUP

CUP bearing, inner, 3-15/16 inch OD (101 mm)

2шт.

13

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE bearing, inner, 2-1/4 inch ID (57 mm)

2шт.

14

A154940

PINION

GEAR final drive, bull gear, 64 external and 35 internal teeth

2шт.

15

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

take up

2шт.

16

A30075

WHEEL NUT

hex slotted, 1/2 inch NF

1шт.

17

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

Выбрано товаров: 19
