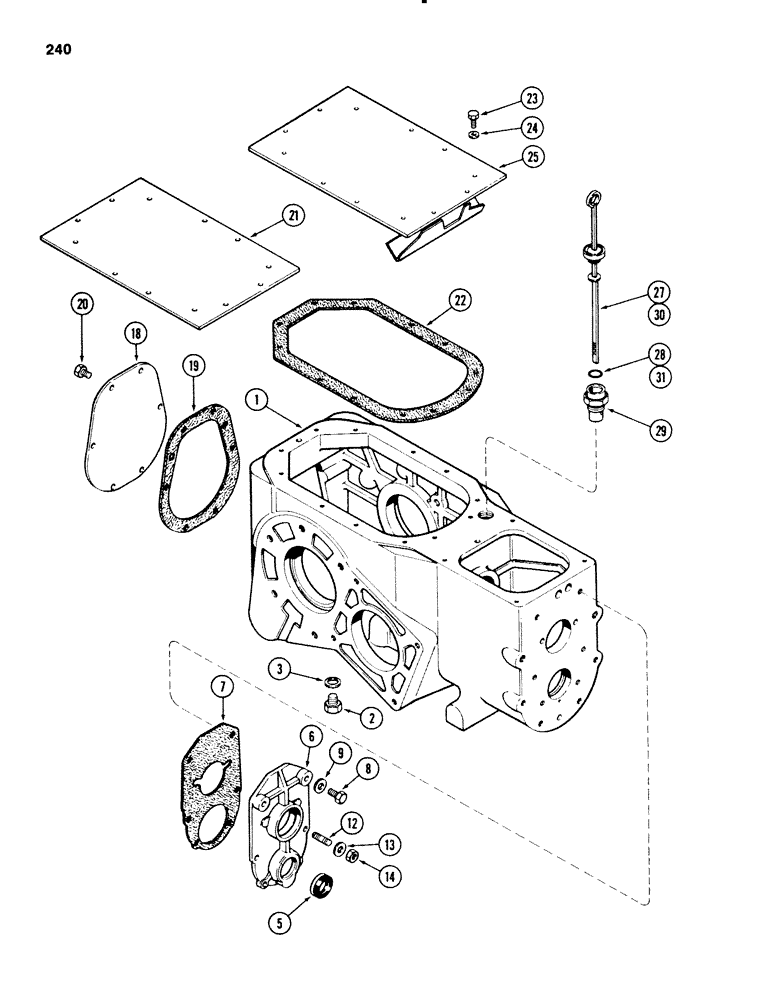

Запчасти Case 580SE (240) - TRANSAXLE TRANSMISSION HOUSING, 2 WHEEL DRIVE, TRANSMISSION SN 16270319 & AFTER (06) - POWER TRAIN

1

A157659

HOUSING

transmission, Transmission Serial No., Serial Range: 16270319-16276842

1шт.

1

A179055

HOUSING

transmission, Transmission Serial No. 16276842 and after

1шт.

2

A140222

PLUG

drain, transmission housing

1шт.

3

A58608

GASKET

drain plug

1шт.

5

A179056

OIL SEAL

oil

1шт.

6

A168851

COVER

transmission housing, front

1шт.

7

G46849

GASKET

front cover to transmission housing

1шт.

8

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

hex, 1/2 NC x 1 inch

2шт.

9

195-533

WASHER,1/2", SAE

flat, 1/2" (17/32 x 1-1/16 x 7/64") (14 x 27 x 3 mm)

2шт.

12

A29717

STUD

cover, center, 1-1/2 inch

2шт.

12

G10710

STUD

cover, bottom, 1-3/4 inch

2шт.

13

195-525

WASHER,3/8", SAE

flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

14

129-123

NUT,3/8"-24, G5

4шт.

18

A39105

COVER

transmission housing, rear

1шт.

19

G10447

GASKET

rear cover to transmission housing, see note

1шт.

JI Case installed housing may not have a cover gasket. If rear housing cover is removed, install a gasket prior to reassembly.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

21

A153744

COVER

housing, top, rear, Transmission Serial No., Serial Range: 16270319-16276842

1шт.

22

A153777

GASKET

GASKET top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex, Grade 8, 3/8 NC x 1 inch

11шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

cover bolt, hardened

11шт.

25

A179385

COVER

housing, top rear, Transmission Serial No. 16276842 and after

1шт.

27

A154968

DIPSTICK

oil gauge, Transmission Serial No. 16270319 to 16276842, Includes: Ref. 28

1шт.

28

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

O RING dipstick

1шт.

29

A154850

TUBE

dipstick and oil filler

1шт.

30

D138048

DIPSTICK

ASSEMBLY, oil gauge, Transmission Serial No. 16276842 and after, Includes: Ref. 31

1шт.

31

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O RING dipstick

1шт.
