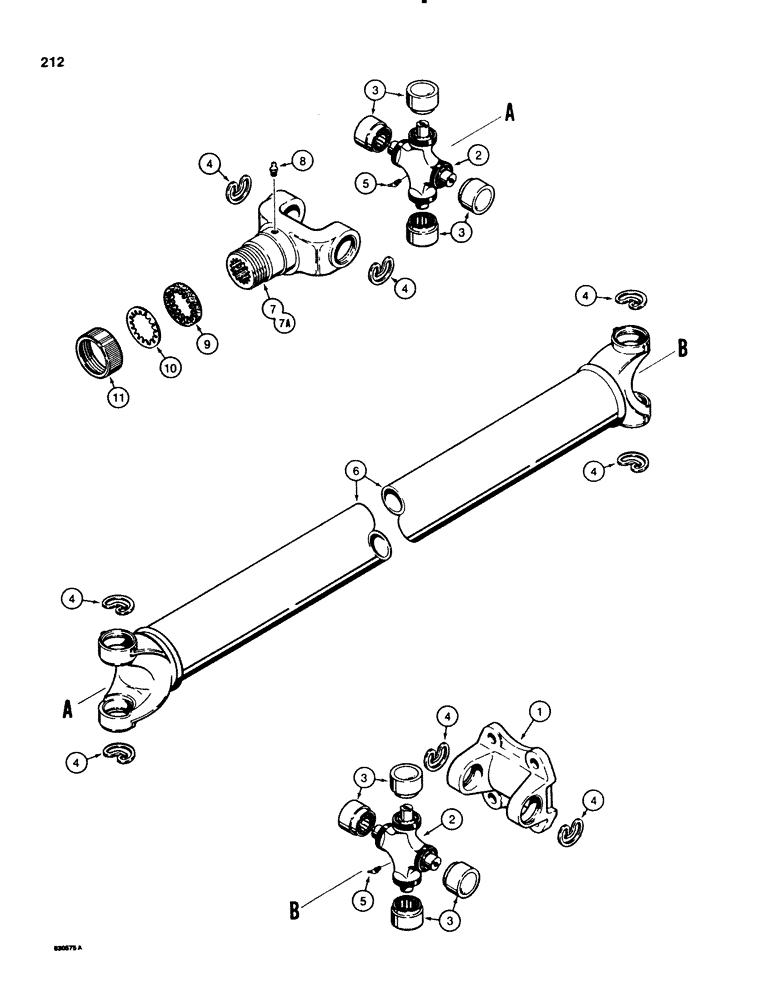

Запчасти Case 580E (212) - DRIVE SHAFT FOR FRONT DRIVE AXLE (06) - POWER TRAIN

D94017

DRIVE SHAFT

SHAFT drive, front drive axle, no longer available, order D128561 drive shaft

1шт.

D128561

DRIVE SHAFT

SHAFT drive, front drive axle, Includes: Ref. 1 - 11

1шт.

1

S80726

YOKE

BRACKET flange

1шт.

R2713

BEARING ASSY

KIT, universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4" - 28 NF taper

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT drive, front drive axle

1шт.

7

N7512

FORK

YOKE splined, D94017 drive shaft only

1шт.

7a

N9926

END

YOKE D128561 drive shaft only

1шт.

Ref #7 and #7A N7512 yoke and N9926 yoke

1шт.

N9926 25mm

1шт.

Dimension from center of eye to end of yoke is: N7512 100mm

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4" - 28 NF taper

1шт.

N7513

SEAL

KIT, dust seal and cap, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER seal, steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP dust seal retaining

1шт.
