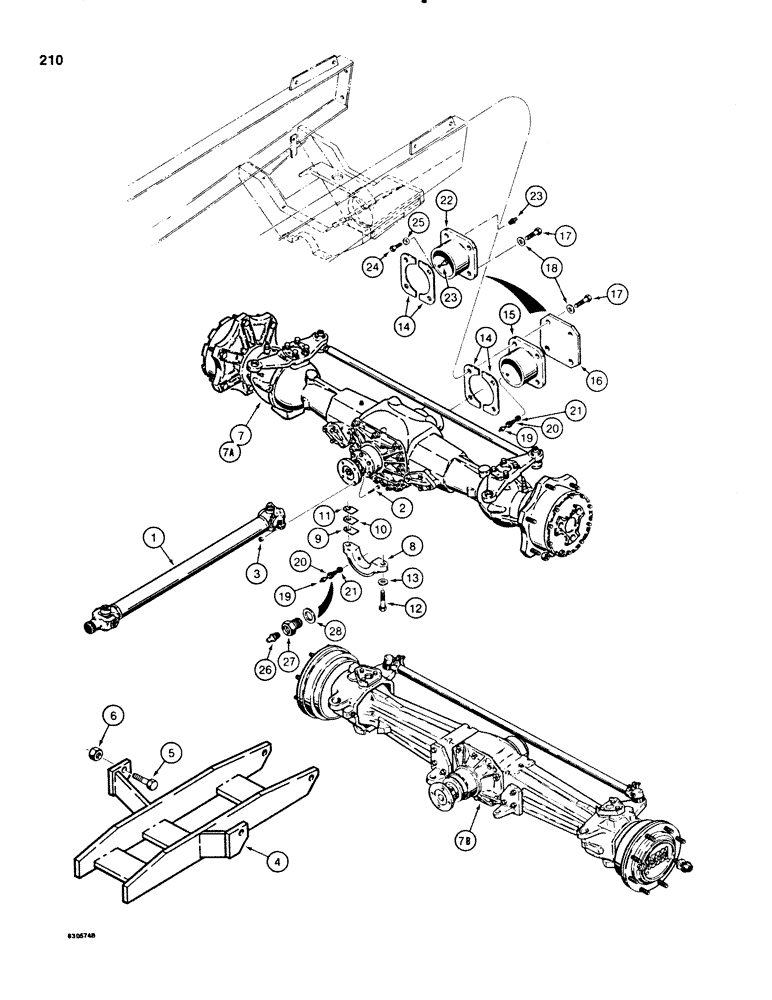

Запчасти Case 580E (210) - FRONT DRIVE AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT drive, front wheel drive, See Figure 212

1шт.

2

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

hex head, grade 8, 7/16" - 20 NF x 1-1/2"

4шт.

3

131-1247

LOCK NUT,7/16"-20, GC

NUT hex, self locking, plated, 7/16" - 20 NF

4шт.

4

D125602

GUARD

drive shaft

1шт.

5

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

6

131-20

LOCK NUT,1"-8, GB

NUT hex, self locking, 1" - 8 NC

4шт.

7

D120346

AXLE

ASSEMBLY, front drive, no longer available, for service order D127422 front drive axle, See Figures 214 - 222

1шт.

7a

D127422

AXLE

ASSEMBLY, front drive, if used, See Figures 214 - 222

1шт.

7b

D127440

AXLE

ASSEMBLY, Carraro 710 front drive, if used, See Figures 226 - 236

1шт.

D126549

KIT

bearing cap, Replaces production axle caps, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CAP axle mounting, rear

1шт.

9

D126551

SHIM,0.3mm Thk

Cap 0.3mm Thk

1шт.

10

D126552

SHIM,0.4mm Thk

Cap 0.4mm Thk

1шт.

11

D126553

SHIM,0.5mm Thk

Cap 0.5mm Thk

1шт.

12

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

hex head, grade 8, 3/4" - 10 NC x 3-1/2"

2шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened, 3/4"

2шт.

14

D122148

SHIM,0.5mm Thk

Front 0.5mm Thk

2шт.

15

D120801

FLANGE

CAP front, no longer available, for service order D101820 kit, see below

1шт.

16

D120332

COVER

PLATE cover, front, if used

1шт.

17

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened, 3/4"

4шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT, used with D93588 adapter

1-2шт.

20

D93588

FITTING

ADAPTER locating, grease fitting, 1-7/8" long, 1/2" socket head depth

1-2шт.

no longer available, for service order D102386 kit, see below

1шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with D93588 adapter 1/2"

1-2шт.

D101820

FLANGE

KIT, four wheel drive flange, Includes: Ref. 22 - 25

1шт.

22

D126791

FLANGE

CAP front, includes cover plate and instructions

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

24

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

hex head, 1/2" - 13 NC x 3/4"

1шт.

25

196-16

WASHER,.521" x 1" x .179", HDN

flat, plated, hardened, 1/2"

1шт.

D102386

ADAPTER

KIT, four wheel drive locating adapter, rear axle mounting cap, includes

1шт.

instruction sheet, Includes: Ref. 26 - 28

1шт.

26

219-17

LUBE NIPPLE,3/16" NPTF

FITTING, grease, straight, 3/16"drive

1шт.

27

D136218

SCREW

locating, grease fitting, 3/16" socket head depth

1шт.

28

196-16

WASHER,.521" x 1" x .179", HDN

Flat, 1/2, Hardened

1шт.
