(208) - FRONT DRIVE AXLE CONTROL, USED WITH TRANSAXLE SN 16270319 AND AFTER

Запчасти Case 580E (208) - FRONT DRIVE AXLE CONTROL, USED WITH TRANSAXLE SN 16270319 AND AFTER (06) - POWER TRAIN

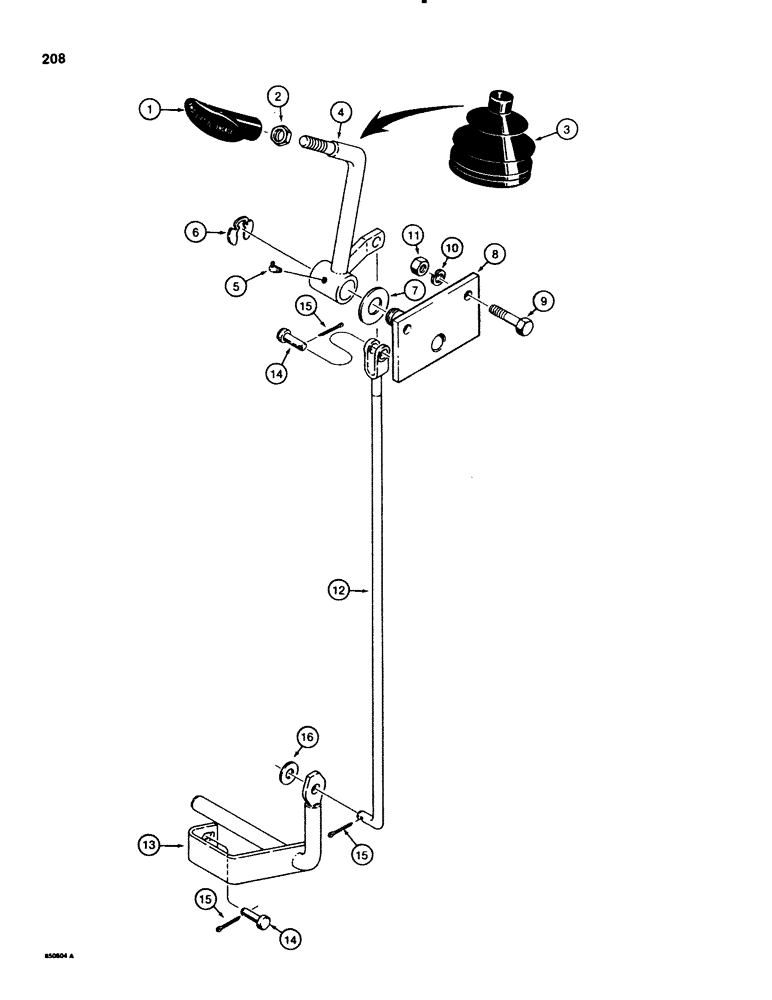

Схема запчастей Case 580E - (208) - FRONT DRIVE AXLE CONTROL, USED WITH TRANSAXLE SN 16270319 AND AFTER (06) - POWER TRAIN
13
15
14
7
12
14
2
8
11
1
16
5
15
4
6
3
15
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D120758

HANDLE

t grip

1шт.

2

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

3

D86664

BOOT

lever

1шт.

4

D133525

LEVER

shift

1шт.

5

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90 degree, 1/4" - 28 NF taper

1шт.

6

D95097

RING, SNAP

RING retaining

1шт.

7

195-545

WASHER,3/4", SAE

flat, plated, 3/4"

1шт.

8

D121853

BRACKET

lever

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

D133526

STABILIZER

ROD shift

1шт.

13

D133527

LEVER

pivot shift

1шт.

14

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

2шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

16

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.
