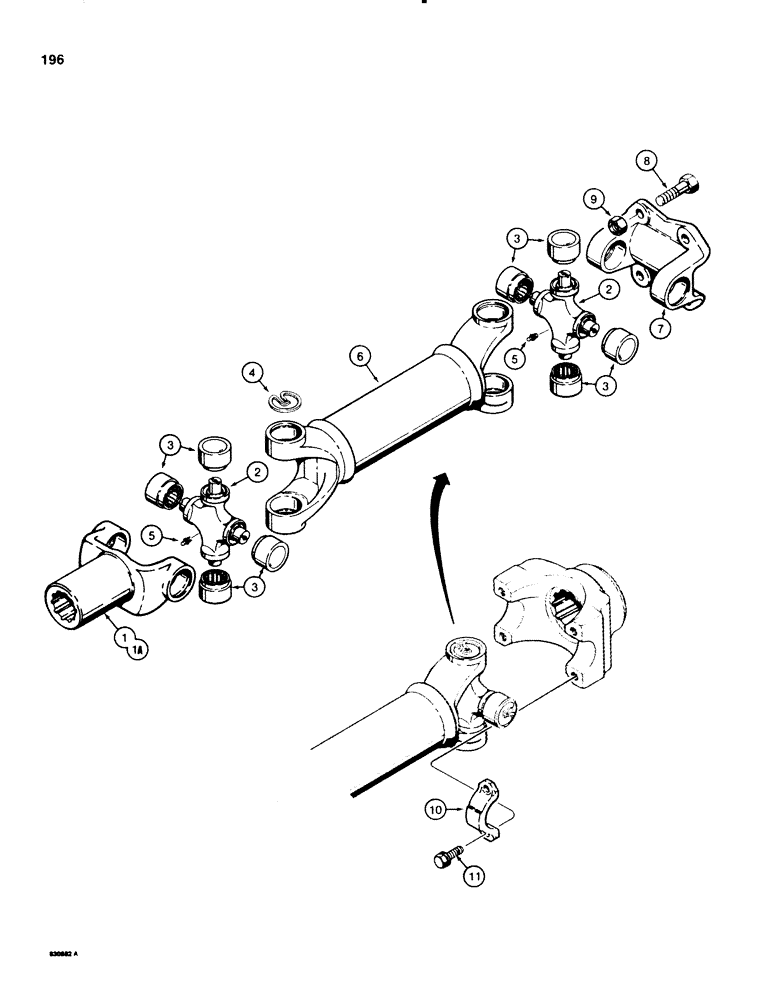

Запчасти Case 580E (196) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (06) - POWER TRAIN

D86246

DRIVE SHAFT

ASSEMBLY, to transaxle, mounts to power shuttle with

1шт.

W13668 bracket, item 7

1шт.

D124145

DRIVE SHAFT

ASSEMBLY, to transaxle, mounts to power shuttle with

1шт.

D124146 strap, item 10, used on models with four wheel drive

1шт.

D128558

DRIVE SHAFT

ASSEMBLY, to transaxle, mounts to power shuttle with

1шт.

D124146 strap, used on models with two wheel drive, Includes: Ref. 1 - 7

1шт.

1

N6834

YOKE

end, to transaxle, D86246 or D124145 drive shaft

1шт.

1a

N9815

YOKE

end, to transaxle, D128558 drive shaft, Includes: Ref. 1B

1шт.

1b

N13653

PLUG

grease, N6834 or N9815 yoke, not shown

1шт.

D70629

U-JOINT SPIDER

KIT, universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

11256

SNAP RING

retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4" - 28 NF taper

1шт.

6

NSS

NOT SOLD SEPARAT

DRIVE SHAFT power shuttle

1шт.

7

W13668

YOKE

BRACKET to power shuttle, used with D86246 drive shaft only

1шт.

8

114-266

BOLT,Hex, 3/8" - 24 x 1", Gr 8, Full Thd

Special thread length, used with W13668 Hex, 3/8"-24 x 1", G8, Full Thd

1шт.

bracket, item 7

4шт.

9

131-1133

NUT,3/8"-24, GC

NUT hex, self locking, plated, 3/8" - 24 NF, used with W13688 bracket, item 7

4шт.

10

D124146

CLAMP

STRAP bearing, used with D124145 or D128558 drive shaft only

2шт.

11

D124151

BOLT

special, used with D124146 strap, item 10

4шт.
