Запчасти Case 580E (194) - SHUTTLE CONTROL AND LINKAGE (06) - POWER TRAIN

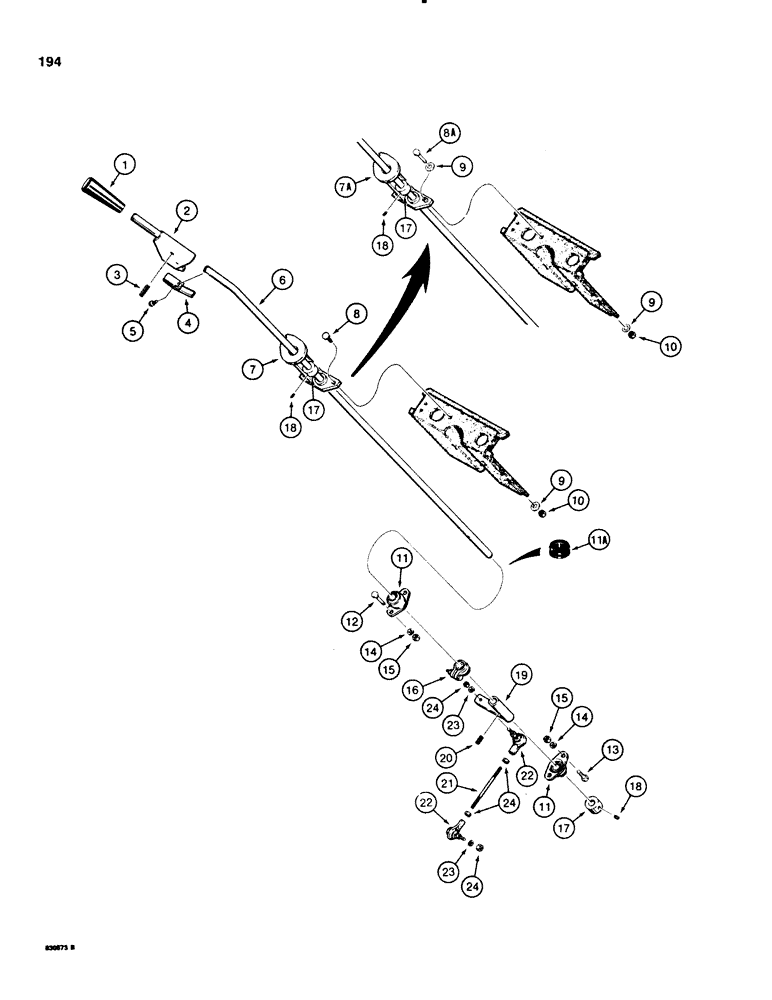

Схема запчастей Case 580E - (194) - SHUTTLE CONTROL AND LINKAGE (06) - POWER TRAIN
18
2
6
22
9
9
11
13
10
18
11a
17
4
20
24
23
17
22
7a
15
18
8a
10
11
15
21
17
14
14
3
1
24
12
9
23
24
8
5
16
7
19

Артикул

Название

Примечание

Количество

1

D86694

KNOB

shuttle control lever

1шт.

2

D86946

LEVER

control, shuttle, upper

1шт.

3

138-2053

PIN,1/4" x 1 1/4", Coiled

1шт.

4

D125772

SPRING

detent

1шт.

5

163-28

SCREW,Hex Wshr Hd, #8 - 32 x 1/4", Gr 5

machine, hex washer head, No. 8 - 32 NC x 1/4"

1шт.

6

D83269

LEVER

ROD lever

1шт.

7

D122306

BRACKET

detent, shuttle lever, with square mounting holes, no longer

1шт.

used, order D126713 bracket and, 3, 113 103 bolts

1шт.

7a

D126713

BRACKET

detent, shuttle lever, with slotted mounting holes

1шт.

8

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2, Used with D122306 bracket, if used

3шт.

8a

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used with D126713 bracket Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

9

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

3-6шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC

3шт.

11

L15401

BEARING,15.89mm ID

lower steering valve bracket, bearing at floor plate no longer

1шт.

used, not required

1-2шт.

11a

D51643

GROMMET

replaces L15401 bearing, item 11, on some models, used

1шт.

as a seal on cab units only

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Upper bearing, if used Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Lower bearing

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2-4шт.

15

9635082

NUT,5/16" - 18, Gr 5

2-4шт.

16

D71880

CLAMP,22.23mm

shuttle control lever, includes hardware

1шт.

D81756

COLLAR

ASSEMBLY, bearing, shuttle rod, Includes: Ref. 17 - 18

2шт.

17

NSS

NOT SOLD SEPARAT

COLLAR bearing

1шт.

18

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket headless, cup point, plated, 1/4" - 20 NC x 1/4"

1шт.

19

D83274

LEVER

shuttle, lower

1шт.

20

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

1шт.

21

D84515

ROD

lever to power shuttle

1шт.

22

D63154

JOINT,1/4" - 28 x 1-1/3"

ball, 1/4"

2шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

24

129-121

NUT,1/4"-28, G5

4шт.
