Запчасти Case 580E (190) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (06) - POWER TRAIN

REF

INSTRUCTION

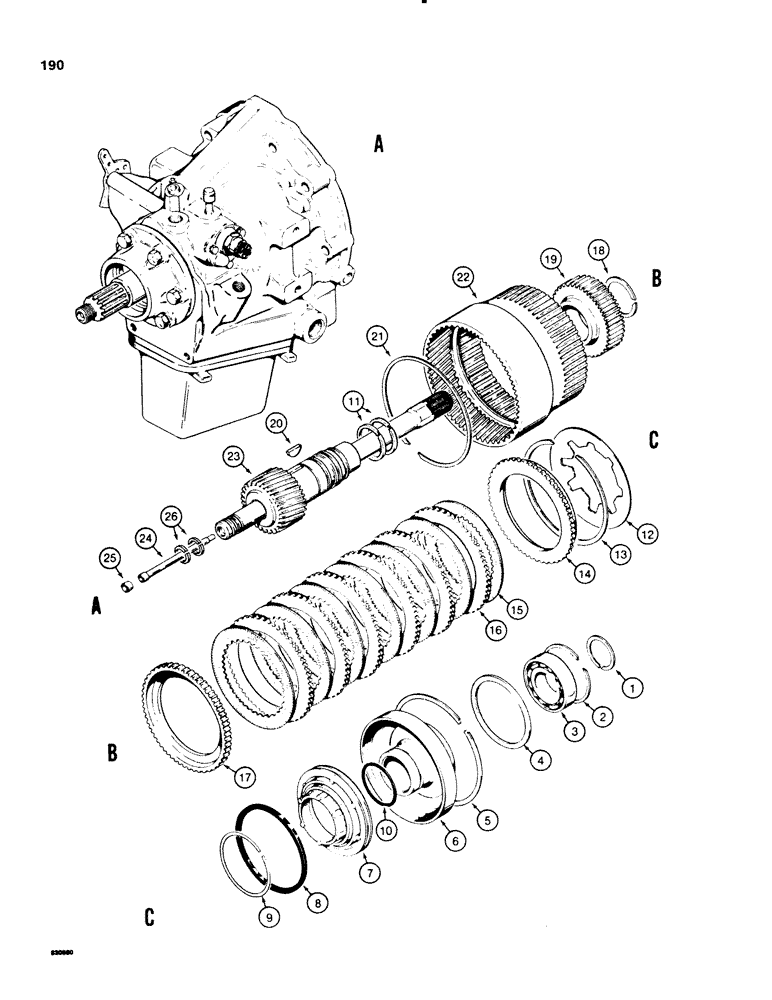

POWER SHUTTLE ASSEMBLY, See Figure 184 for service information, See Figures 184 - 192, Includes: Ref. 1 - 26

1шт.

Check the part number on the power shuttle serial number plate before ordering.

1шт.

1

D50042

RING

snap, bearing retaining, small

1шт.

2

D50043

RING

snap, bearing retaining, large

1шт.

3

D50044

BALL BEARING

BEARING ball, clutch cylinder

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

thrust, forward clutch

1шт.

5

D50046

RING

ring gear retaining

1шт.

6

D50075

CYLINDER

forward clutch

1шт.

7

D70670

PISTON

forward clutch

1шт.

8

D50077

RING

piston

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

piston

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O RING cylinder

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

sealing

2шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

Belleville

1шт.

13

D50048

CIRCLIP

RING retaining, pressure plate

1шт.

14

D50081

PLATE,139.12mm OD

pressure, front

1шт.

15

D70672

PLATE

DISC friction, internal tooth

7шт.

16

D50083

PLATE

DISC friction, external tooth

6шт.

17

D50084

PLATE,139.45mm OD

pressure, rear

1шт.

18

D50049

RING

clutch hub retaining

1шт.

19

D75853

HUB

clutch

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Input shaft #15, 1/4" x 1", HT

1шт.

21

CASD50051

RING

.050" (1.270 mm) to .054" (1.372 mm) thick

1шт.

21

D78397

RING

.062" (1.575 mm) to .066" (1.676 mm) thick

1шт.

21

D50052

RING

.074" (1.880 mm) to .078" (1.981 mm) thick

1шт.

21

D78398

RING

.084" (2.134 mm) to .088" (2.235 mm) thick

1шт.

21

D50053

RING

.096" (2.438 mm) to .100" (2.540 mm) thick

1шт.

22

D50054

GEAR

ring, power shuttle

1шт.

D70666

GEAR

INPUT SHAFT ASSEMBLY, power shuttle, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT input, drive

1шт.

24

N7043

TUBE

forward clutch supply

1шт.

25

D50086

PLUG

shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

sealing

2шт.
