Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

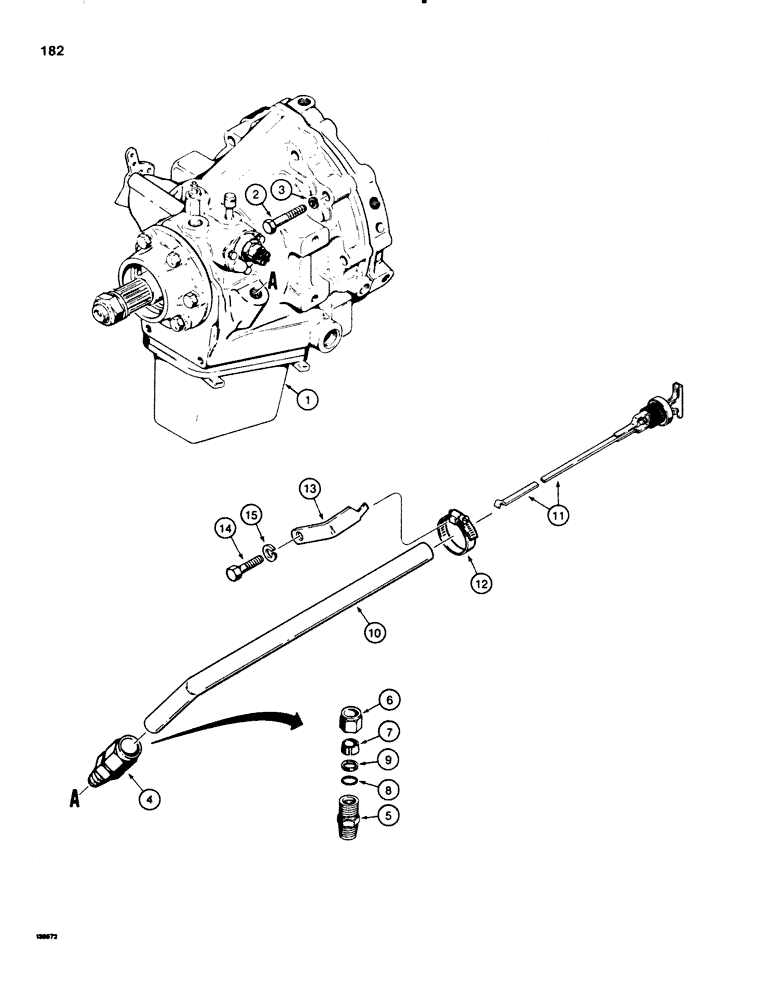

SHUTTLE power, for correct assembly and components See Figures 184 - 192
1шт.
2
113-329
BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5
hex head, plated, 7/16" - 14 NC x 3-1/4"
6шт.
3
192-22
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
6шт.
4
222-3006
FITTING,1 1/2"-12 x 3/4" NPT
CONNECTOR ASSEMBLY, straight, power shuttle to dipstick tube, Includes: Ref. 5 - 9
1шт.
5
NSS
NOT SOLD SEPARAT
BODY connector
1шт.
6
222-3111
TUBE NUT,1"-12
NUT connector
1шт.
7
222-3105
SLEEVE,1" Tube
connector
1шт.
8
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
O RING connector
1шт.
9
D54295
RING
backup, connector O ring
1шт.
10
D125818
TUBE
filler, power shuttle
1шт.
11
D125819
GAUGE
DIPSTICK power shuttle
1шт.
12
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP tube
1шт.
13
D121358
SUPPORT
filler tube
1шт.
14
814-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
plated Hex, M10 x 35, 8.8, Full Thd
1шт.
15
892-1110
LOCK WASHER,M10
WASHER lock, plated, 10 mm
1шт.
Выбрано товаров: 15
