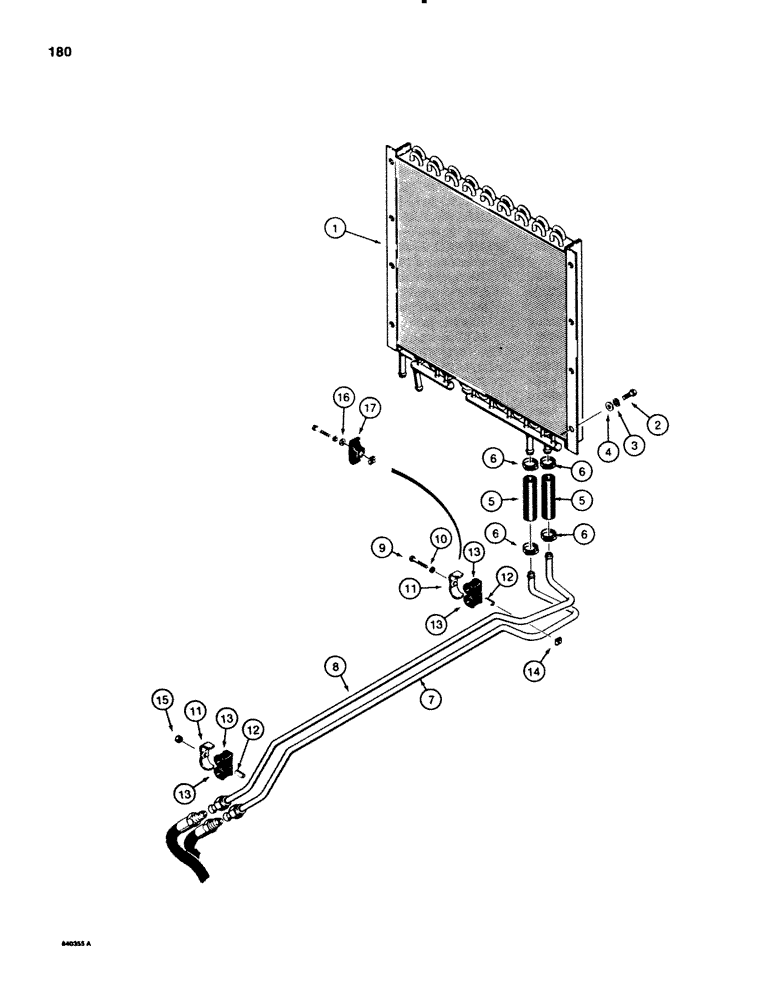

Запчасти Case 580E (180) - POWER SHUTTLE COOLING SYSTEM, OIL COOLER WITH STRAIGHT CONNECTIONS (06) - POWER TRAIN

1

A171876

COOLER ASSY.

COOLER oil, power shuttle and equipment hydraulic oil, for equipment

1шт.

hydraulic oil cooler lines, See Figures 326 - 330

1шт.

2

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm - 1.25 x 16 mm (8.8)

8шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

4

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

8шт.

5

REF

INSTRUCTION

HOSE, 1/2" (13 mm) ID x 4" (102 mm) long, cut from S118388 bulk

1шт.

see below, oil, Serial Range: cooler-tubes

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose, adjustable

4шт.

7

D127116

TUBE ASSY.

TUBE power shuttle to oil cooler

1шт.

8

D127118

TUBE ASSY.

TUBE oil cooler to power shuttle

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

D68646

CLAMP

double, tube

1-2шт.

12

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

tube mounting

1-2шт.

13

D67296

GROMMET

INSULATOR tube mounting

2-4шт.

14

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

16

195-525

WASHER,3/8", SAE

flat, plated, 3/8", used with D120679 plastic tube clamp

1шт.

17

D120679

CLAMP,Tube, 1/2"

plastic, tube, Replaces items 11 - 13 clamp arrangement on some models

1шт.

S118388

HOSE,0.50" ID x 168.00", SAE 100R3

Bulk 0.50" ID x 168.00", SAE 100R3

1шт.
