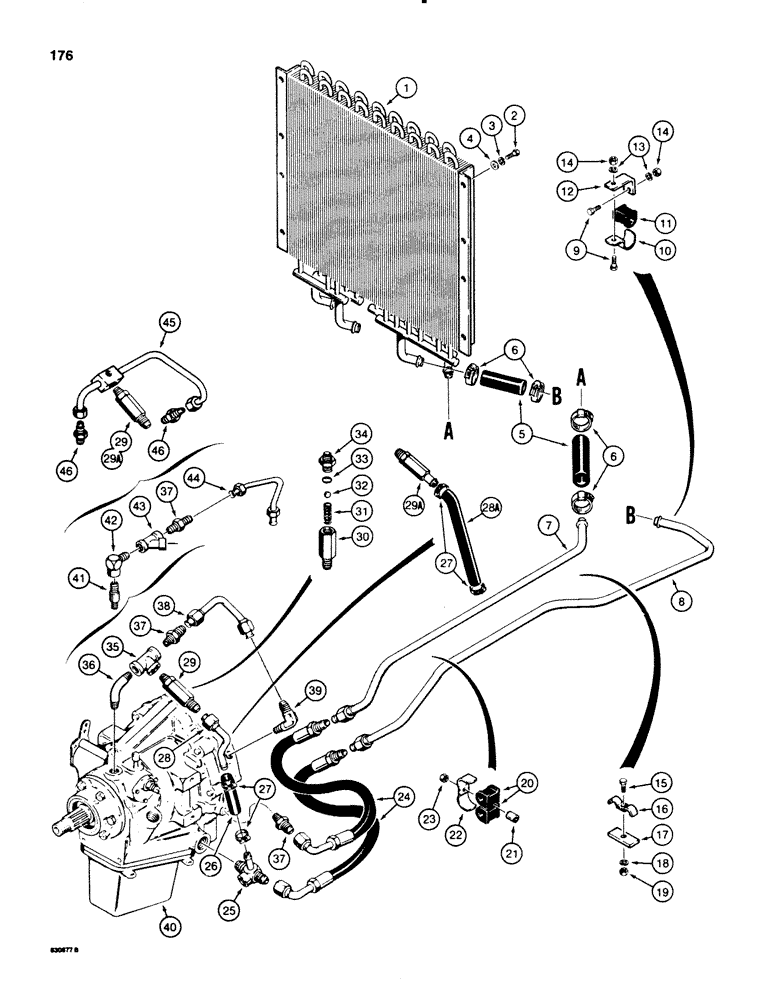

Запчасти Case 580E (176) - POWER SHUTTLE COOLING SYSTEM, OIL COOLER WITH ANGLED CONNECTIONS (06) - POWER TRAIN

1

A171130

OIL COOLER

COOLER oil, power shuttle and equipment hydraulic oil, for equipment hydraulic oil cooler lines, See Figure 324

1шт.

2

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm - 1.25 x 16 mm (8.8)

8шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

4

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

8шт.

5

REF

INSTRUCTION

HOSE, 1/2" (13 mm) ID x 4" (102 mm) long, cut from S118388 bulk, see below, oil, Serial Range: cooler-tubes

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose, adjustable

4шт.

7

D123432

TUBE

power shuttle to oil cooler

1шт.

8

D123434

TUBE ASSY.

TUBE oil cooler to power shuttle

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1-2шт.

10

D68638

CLAMP

D123434, item 8, tube

1шт.

11

D67296

GROMMET

INSULATOR tube mounting

1шт.

12

D124732

BRACKET

tube mounting, at radiator, if used

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1-2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1-2шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

16

D90270

CLAMP

double, tubes

1шт.

17

D70281

PLATE

clamp mounting

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

1шт.

20

D67296

GROMMET

INSULATOR tube mounting

2шт.

21

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

tube mounting

1шт.

22

D68646

CLAMP

double, tube

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

24

D69051

HOSE

18" (457 mm) long, power, Serial Range: shuttle-tubes

2шт.

25

D68972

CONNECTOR, ELEC

TEE special

1шт.

26

REF

INSTRUCTION

HOSE, 1/2" (13 mm) ID x 4" (102 mm) long, cut from S118388 bulk, see below, power shuttle, if used

1шт.

27

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose

2шт.

S118388

HOSE,0.50" ID x 168.00", SAE 100R3

Bulk 0.50" ID x 168.00", SAE 100R3

1шт.

28a

D136710

HOSE,12.5 mm ID x 250.00 mm, SAE 100R3

Used with D133321 Relief Valve, May Replace Items 26 and 28 on Some Models 12.5 mm ID x 250.00 mm, SAE 100R3

1шт.

29

D48540

VALVE POPPET

RELIEF VALVE ASSEMBLY, threaded both ends, power shuttle, includes items 30 - 34, if used

1шт.

29a

D133321

VALVE POPPET

RELIEF VALVE ASSEMBLY, with stem fitting at one end, power shuttle, includes items 30 - 34, if used

1шт.

30

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

31

S73472

SPRING

relief valve

1шт.

32

211-212

BALL

grade 25, chrome alloy steel, 7/16"

1шт.

33

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

O RING seat

1шт.

34

S73469

SEAT, VALVE

SEAT spring

1шт.

35

221-423

TEE,3/8" NPT

if used 3/8" NPT

1шт.

36

D48539

FITTING

ELBOW, 75 degree, special, if used

1шт.

37

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER straight, male

1-2шт.

38

D48523

TUBE

power shuttle inlet, if used

1шт.

39

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90 degree, male, if used

1шт.

40

REF

INSTRUCTION

SHUTTLE power, parts list Figures 184-192

1шт.

41

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE male, 3/8" NPT x 2", if used

1шт.

42

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

street, 90 degree, 3/8" NPT, if used

1шт.

43

221-823

FITTING

y type, 3/8" NPT, if used

1шт.

44

D125845

TUBE ASSY.

TUBE power shuttle inlet, if used

1шт.

D135703

PIPE ASSY.

TUBE power shuttle, items 29A - 34, 45 and 46 are included in D135731 power shuttle assembly and may Replace items 35 - 39 and 41 - 44

1шт.

45

D135703

PIPE ASSY.

TUBE power shuttle, Replaced NSS

1шт.

Does not have check valve P/N D133321. Small test port plug is 218 5152. Has both adapters on it.

1шт.

46

NSS

NOT SOLD SEPARAT

CONNECTOR with sleeve and nut

2шт.
