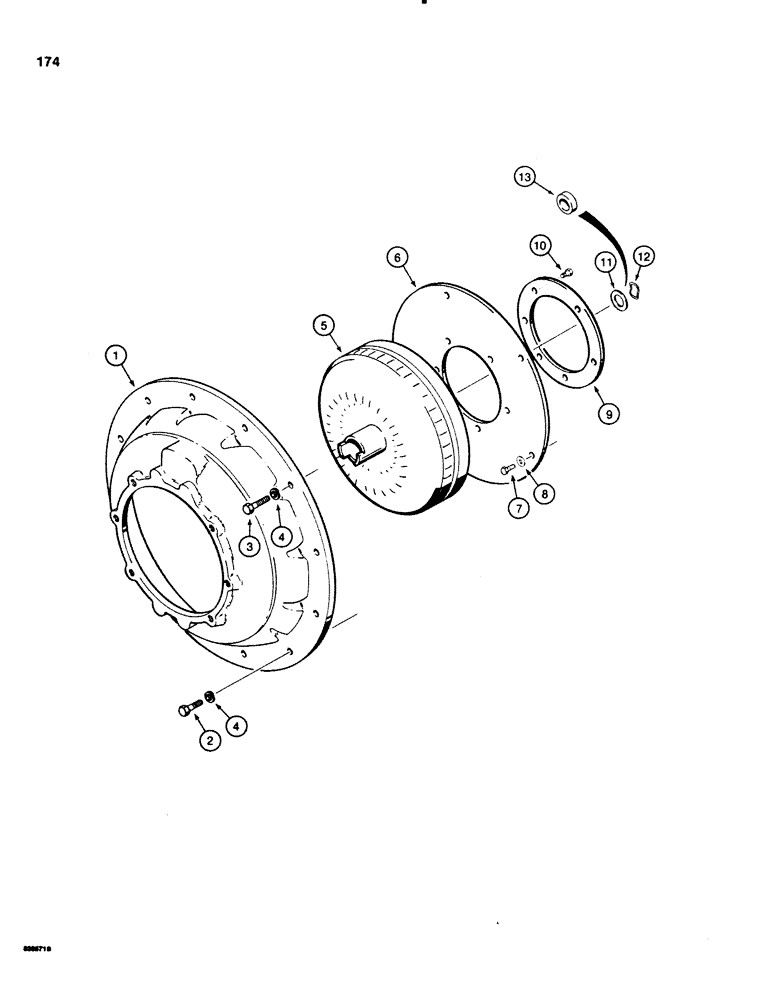

Запчасти Case 580E (174) - TORQUE CONVERTER AND HOUSING (06) - POWER TRAIN

1

D48445

HOUSING

HOUSING torque converter

1шт.

2

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 30, 8.8

11шт.

3

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

BOLT, , plated Hex, M10 x 35, 8.8, Full Thd

1шт.

4

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

12шт.

5

D81693

CONVERTER

CONVERTER torque, transmission

1шт.

5

103293A1R

REMAN-TORQUE CONVERT

ER Remanufactured, Torque Converter

1шт.

5

103293A1C

CORE-TORQUE CONVERTR

Core Torque Converter, Return Part Number

1шт.

6

D131147

PLATE

PLATE torque converter, hardened

1шт.

7

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

BOLT - special, grade 8, torque converter mounting, 5/16" - 18 NC x 5/8"

6шт.

8

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER flat, special

6шт.

9

D81592

PLATE

PLATE torque converter drive

1шт.

10

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

BOLT special, grade 8, drive plate mounting, 3/8" - 24 NF x 1/2"

6шт.

11

D128411

BUSHING

SPACER, 3/32" torque converter, thick, used with item 12 wave washer, no

1шт.

.

longer used, order D135817 spacer and 8-61300 instruction sheet

1шт.

12

G49413

WASHER

WASHER wave, used with item 11 spacer only

1шт.

13

D135817

SPACER

SPACER, 9/16" thick, torque converter, if used

1шт.
