(172) - REAR WHEELS AND TIRES, 14.9 X 24 - FIXED DISC WHEEL, 16.9 X

Запчасти Case 580E (172) - REAR WHEELS AND TIRES, 14.9 X 24 - FIXED DISC WHEEL, 16.9 X (06) - POWER TRAIN

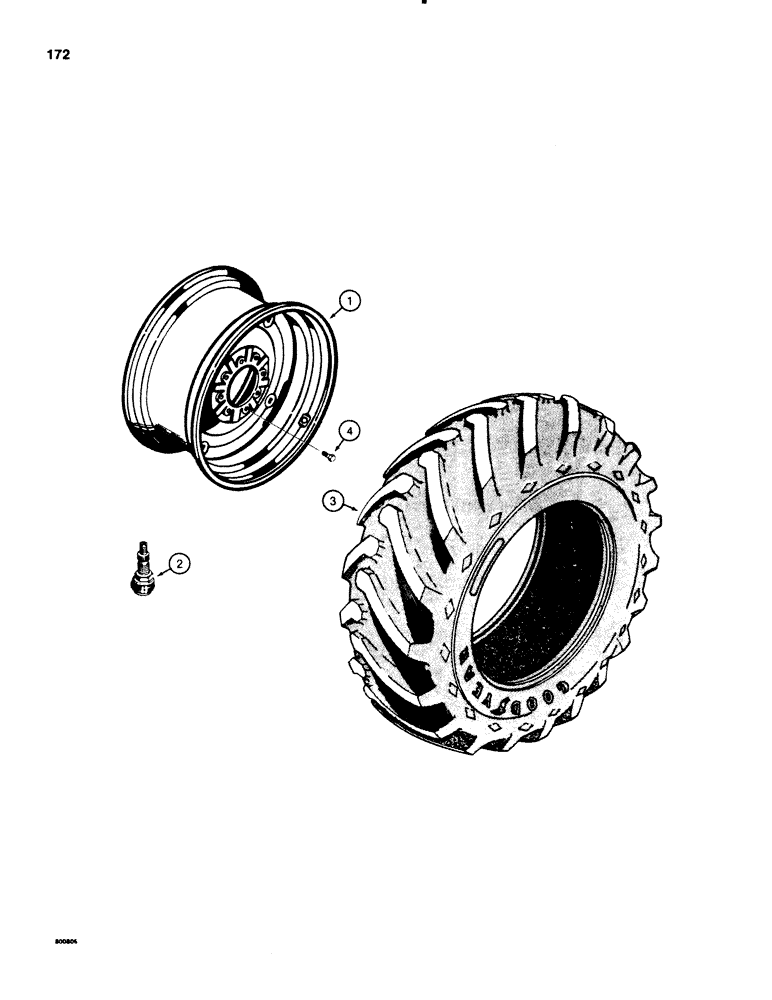

Схема запчастей Case 580E - (172) - REAR WHEELS AND TIRES, 14.9 X 24 - FIXED DISC WHEEL, 16.9 X (06) - POWER TRAIN
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A139083

WHEEL

rim, 14.9 x 24 fixed disc wheel

2шт.

2

A20058

VALVE STEM

Wheel, 14.9 x 24 fixed disc wheel

2шт.

3

REF

INSTRUCTION

TIRE rear, 14.9 x 24 fixed disc wheel

2шт.

1

A139085

WHEEL

rim, 16.9 x 24 and 17.5L x 24 fixed disc wheel

2шт.

2

A20058

VALVE STEM

Wheel, 16.9 x 24 and 17.5L x 24 fixed disc wheel

2шт.

3

REF

INSTRUCTION

TIRE rear, 16.9 x 24 and 17.5L x 24 fixed disc wheel

2шт.

4

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

7/8 inch hex head (if equipped)

16шт.

4

D140705

BOLT

1 inch hex head (if equipped)

16шт.
