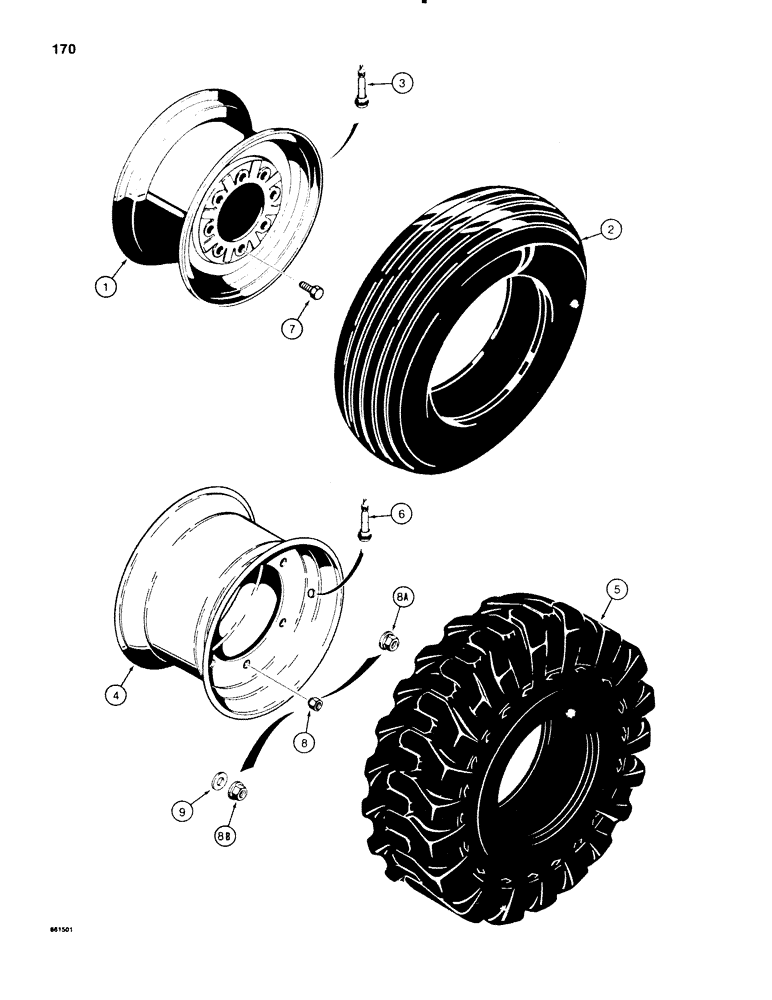

Запчасти Case 580E (170) - FRONT WHEELS AND TIRES, FOR 7.50 X 16 AND 8.00 X 16 TIRES (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A139081
WHEEL
rim, for 7.50 x 16 and 8.00 x 16 tires, two wheel drive models
2шт.
2
REF
INSTRUCTION
TIRE front, for 7.50 x 16 and 8.00 x 16 tires, two wheel drive models
2шт.
3
A38261
VALVE
STEM wheel, for 7.50 x 16 and 8.00 x 16 tires, two wheel drive models
2шт.
1
A139082
WHEEL
rim, for 11L x 16 tires, two wheel drive models
2шт.
2
REF
INSTRUCTION
TIRE front, for 11L x 16 tires, two wheel drive models
2шт.
3
A38261
VALVE
STEM wheel, for 11L x 16 tires, two wheel drive models
2шт.
4
D120271
RIM
WHEEL rim, for 12 x 16.5 tires, four wheel drive models, use with D120346 or D127422 front drive axle
2шт.
5
REF
INSTRUCTION
TIRE front, for 12 x 16.5 tires, four wheel drive models, use with D120346 or D127422 front drive axle
2шт.
6
A38261
VALVE
STEM wheel, for 12 x 16.5 tires, four wheel drive models, use with D120346 or D127422 front drive axle
2шт.
4
D126930
RIM
WHEEL rim, 8 hole pattern, not shown, for 12 x 16.5 tires, four wheel drive models, used with D127440 Carraro 710 front drive axle
2шт.
5
REF
INSTRUCTION
TIRE front, for 12 x 16.5 tires, four wheel drive models, used with D127440 Carraro 710 front drive axle
2шт.
6
A38261
VALVE
STEM wheel, for 12 x 16.5 tires, four wheel drive models, used with D127440 Carraro 710 front drive axle
2шт.
7
A38208
WHEEL BOLT,5/8-18 UNF Class 2A
Retaining, 2WD models
16шт.
8
K965326
WHEEL NUT
wheel retaining, four wheel drive models, used with D127440 Carraro 710 front drive axle
12шт.
8a
D136813
NUT
wheel retaining, flanged, with swivel washer attached, no longer, used, order item 8B nut and item 9 washer
1шт.
four wheel drive models, used with D127440 Carraro 710 front drive axle
16шт.
8b
K395089
WHEEL NUT
wheel retaining, replaces flanged nut on some models, four wheel drive models, used with D127440 Carraro 710 front drive axle
16шт.
9
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
flat, hardened, used with K395089 nut, four wheel drive models, used with D127440 Carraro 710 front drive axle
16шт.
Выбрано товаров: 18
