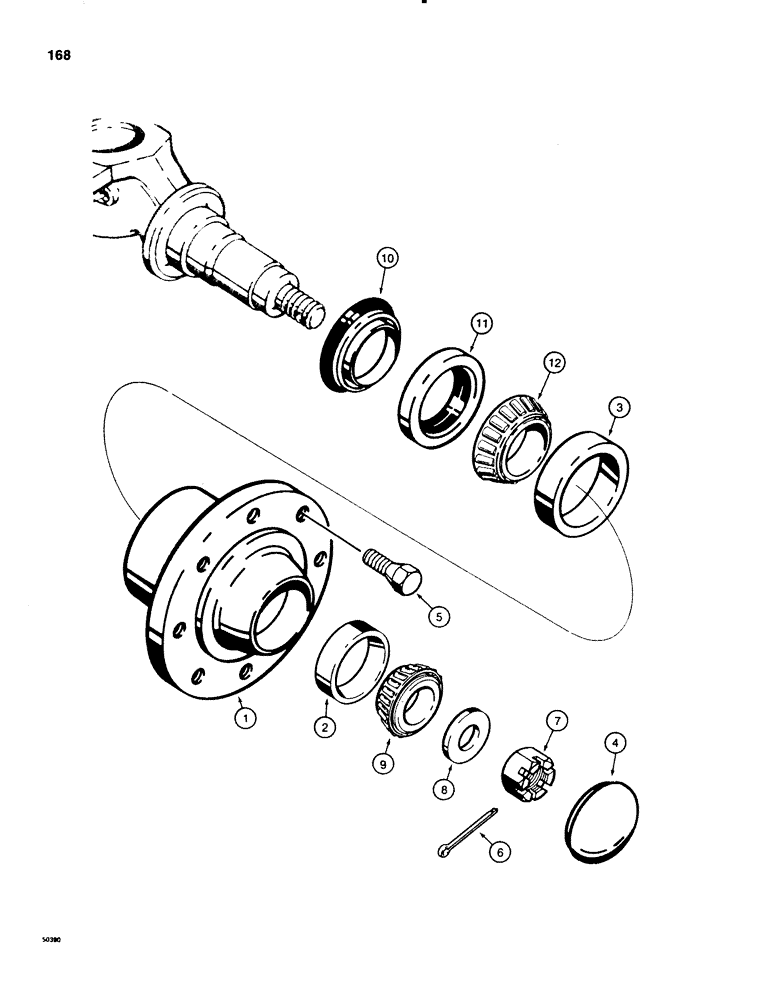

Запчасти Case 580E (168) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING

A66759

HUB

ASSEMBLY, front wheel, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HUB front wheel

1шт.

2

G15214

BEARING CUP

CUP outer, tapered roller bearing

1шт.

3

A61446

BEARING CUP

CUP inner, tapered roller bearing

1шт.

4

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP hub

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining

16шт.

6

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

7

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT hex, slotted, thick, 1-1/8" - 12 NF

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

flat, 1-1/8"

2шт.

9

G15215

ROLLER BEARING

BEARING tapered, roller, outer

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

spindle

2шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

hub

2шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

BEARING tapered, roller, inner

2шт.
