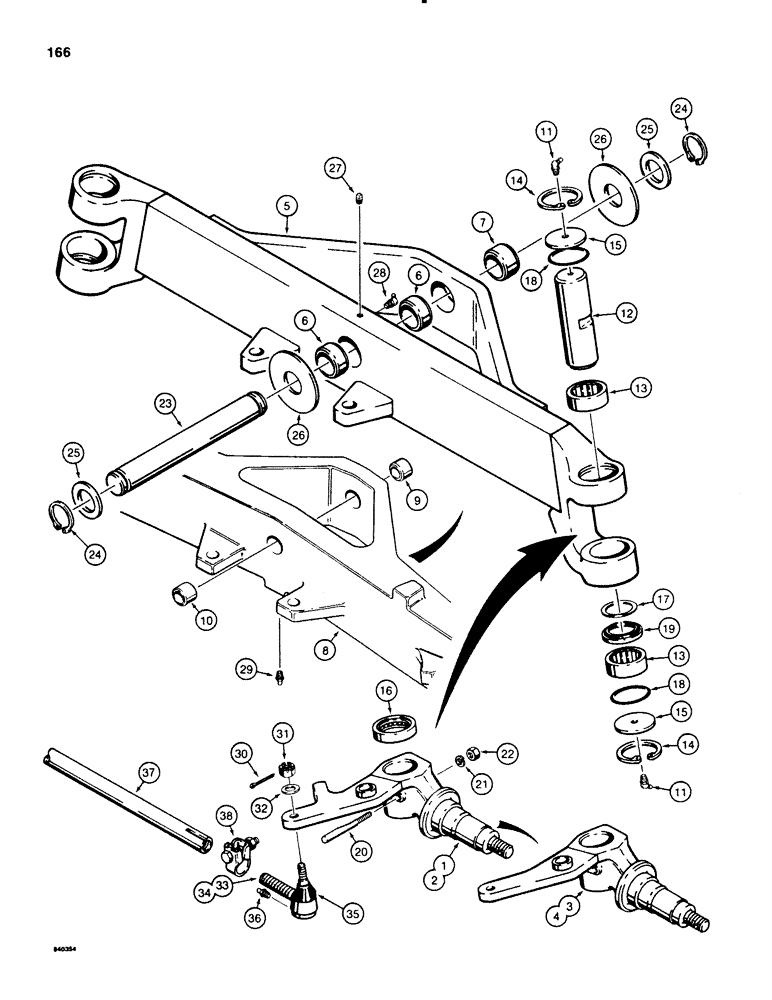

Запчасти Case 580E (166) - FRONT AXLE AND SPINDLES (05) - STEERING

1

D86343

SPINDLE

right hand, used with item 5 only

1шт.

2

D86344

SPINDLE

left hand, used with item 5 only

1шт.

3

D125862

SPINDLE

right hand, used with item 8 only

1шт.

Part of Axle Kit, P/N D101471

1шт.

4

D125863

SPINDLE

left hand, used with item 8 only

1шт.

Part of Axle Kit, P/N D101471

1шт.

5

D67317

SPARE PART

AXLE ASSEMBLY, front, welded, no longer used, order D101471 axle kit, see below, Includes: Ref. 6 - 7

1шт.

Ref #5 D67317 axle assy Welded yokes at

1шт.

ends of this axle are D69359, RH, and D69360, LH.

1шт.

6

D61241

BUSHING,44.68mm ID x 57.15mm OD x 23.88mm L

axle

2шт.

7

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

axle

1шт.

8

D125824

AXLE

ASSEMBLY, front, cast, Includes: Ref. 9 - 10

1шт.

Part of Axle Kit, P/N D101471

1шт.

9

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

axle

1шт.

10

D126498

BUSHING,44.68mm ID x 57.12mm OD x 50mm L

axle

1шт.

11

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING grease, self tapping, 45º, 1/8" pipe

4шт.

12

D72337

PIN,50.8mm OD x 168.91mm L

KINGPIN front axle

2шт.

Ref #12 D72337 kingpin Kingpin kit includes

1шт.

Ref. 11 thru 20 qty's for one side only, available as part nbr D103156.

1шт.

13

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING needle, kingpin

4шт.

14

A27463

SNAP RING,2.375", Int, #237

Brg 2.375", Int, #237

4шт.

15

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER kingpin

4шт.

16

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING roller, spindle

2шт.

17

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

thrust, bearing

2шт.

18

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk, King pin seal

4шт.

19

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

oil

2шт.

20

D57486

PIN

- kingpin lock

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

129-125

NUT,1/2"-20, G5

2шт.

23

D64171

PIN,44.45mm OD x 352.55mm L

axle pivot

1шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , axle pivot pin #175, Ext

2шт.

25

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick

1шт.

used as a spacer

2шт.

26

D61076

WASHER,46mm ID x 114mm OD x 4.78mm Thk

spacer

1шт.

27

221-849

PLUG,Hex Soc, 1/8"-27

hex socket head, 1/8" NPT, Replaces square head plug on some

1шт.

models, used with item 5 only

1шт.

28

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING grease, self tapping, 45º, 1/8" pipe, used with item 5 only

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT, used with item 8 only

1шт.

Part of Axle Kit, P/N D101471

1шт.

30

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.

31

129-610

SLOTTED NUT,5/8"-18, G5

2шт.

32

195-2084

WASHER,13/16" x 1 1/4" x .067", HDN

flat, 3/4" bolt size, 13/16" ID x 1-1/4" OD x 1/16" thick

1шт.

D73398

ROD

TIE ROD ASSEMBLY, tractor

1шт.

33

D88491

BALL JOINT,7/8" - 18 x 3-3/4"

tie rod, right hand

1шт.

34

D88492

BALL JOINT,7/8" - 18 x 3-3/4"

tie rod, left hand, Includes: Ref. 35 - 36

1шт.

35

N7681

BOOT

dust cover, ball joint

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

37

D73397

TIE-ROD,7/8” ID x 1.5” OD x 42.1” L

TIE ROD tractor

1шт.

38

D73799

CLAMP

tie rod, includes hardware

2шт.

D101471

AXLE

KIT, axle, includes: Ref. 3, 4, 8, 29. This kit also includes two stop blocks with installation instruction not for use on the

1шт.

580 Super E

1шт.
