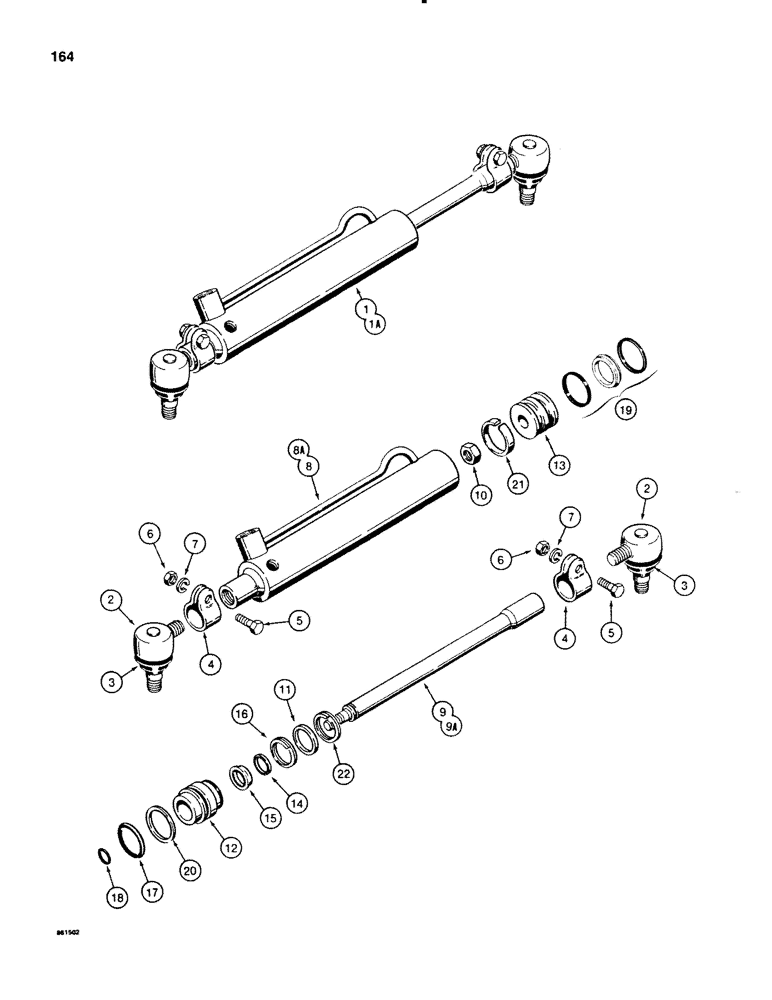

Запчасти Case 580E (164) - STEERING CYLINDERS (05) - STEERING

1

D128454

STEERING CYLINDER

CYLINDER ASSEMBLY, steering, interchangeable with D84800 steering

1шт.

Ref #1 D128454 cylinder assy Replaced by

1шт.

part nbr D147753, not a sub. Refer to Service Bulletin NLB SB 002 91.

1шт.

.

cylinder, used with D120346 or D127422 axle

2шт.

1a

D92099

CYLINDER

ASSEMBLY, steering, used with D127440 Carraro 710 front axle, Includes: Ref. 2 - 22

2шт.

1a

234449A1R

REMAN-HYD CYLINDER

580SE, Reman For New P/N D92099

2шт.

1a

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

A40962

BALL JOINT

male thread, Includes: Ref. 3

2шт.

3

A41424

SEAL

BOOT dust cover

1шт.

.

A27080

CLAMP

ASSEMBLY, end, Includes: Ref. 4 - 7

2шт.

4

NSS

NOT SOLD SEPARAT

CLAMP end

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

D83188

CYLINDER

TUBE cylinder, used with item 1 cylinder

1шт.

8a

N7467

TUBE ASSY.,1.504" ID x 1.75" OD

TUBE cylinder, used with item 1A cylinder

1шт.

9

N8890

PISTON ROD

ROD cylinder, hardened, used with item 1 cylinder

1шт.

9a

N7466

ROD

cylinder, hardened, used with item 1A cylinder

1шт.

10

131-1145

JAM NUT,5/8" - 18

NUT hex, jam, self locking, 9/16" - 18 NF

1шт.

11

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

head

1шт.

12

D83189

GLAND

ASSEMBLY, cylinder, includes bushing

1шт.

13

D83190

PISTON

cylinder

1шт.

.

D148100

GASKET KIT

KIT, cylinder repair, Replaced D83184, Includes: Ref. 14 - 21

1шт.

14

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER rod

1шт.

15

D83187

SEAL,19.05mm ID x 25.4mm OD x 7.18mm W

SEAL rod

1шт.

16

A44652

SNAP RING,#150, 1.591", Int, Spiral

RING lock, gland

1шт.

17

S6582

O-RING,1.234" ID x 1.512" OD x 0.139"

O RING outer gland

1шт.

18

A64436

O-RING,0.549" ID x 0.755" OD

O RING rod to piston

1шт.

19

301316A1

SEAL

SEAL piston

1шт.

20

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

RING backup, O ring

1шт.

21

D83186

SEAL

RING wear, piston

1шт.

22

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING lock, outer

1шт.
