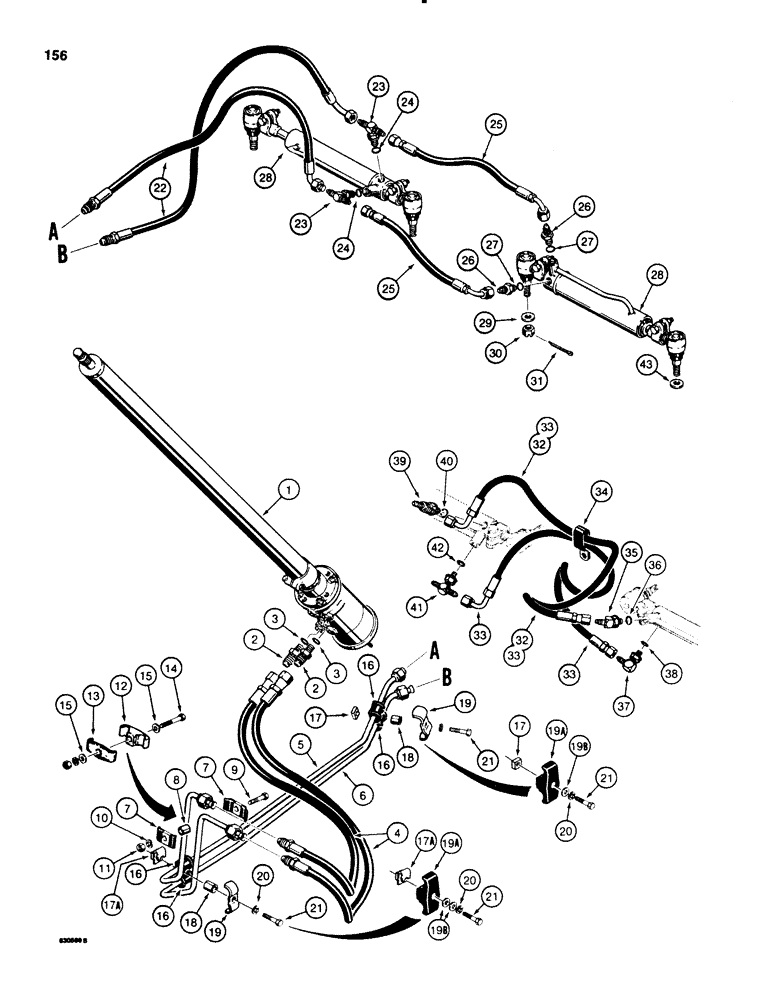

Запчасти Case 580E (156) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

D91505

PUMP

VALVE control, steering, includes steering column, See Figure 160

1шт.

1

D91505R

REMAN-STEERING VALVE

580SE CASE SUPER-E CONSTRUCTION KING LOADER BACKHOE, VALVE control, steering, includes steering column

1шт.

1

D91505C

CORE-STEERING VALVE

Return Number

1шт.

2

D93918

RESTRICTOR

CONNECTOR straight, male, control valve to hose, restrictor, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

4

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

12" (305 mm) long, from control valve

2шт.

5

D94531

HYD TUBE,12.7 mm OD x 754, 230 mm L

TUBE upper

1шт.

6

D94533

HYD TUBE,12.7 mm OD x 761, 273 mm L

TUBE lower

1шт.

7

R17319

CLAMP

tube, metal, if used

2шт.

8

D76208

SPACER

tube clamp, used with item 7, if used

1шт.

9

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Used with item 7, if used Hex, 5/16"-18 x 1 1/4", G5

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

D120679

CLAMP,Tube, 1/2"

spacer, tube, plastic, if used

1шт.

13

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

tube, plastic, used with item 12, if used

1шт.

14

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Used with item 12, if used Hex, 5/16"-18 x 1 3/4", G5

1шт.

15

195-103

WASHER,5/16"

flat, plated, , if used 5/16"

2шт.

16

D67296

GROMMET

INSULATOR tube, if used

4шт.

17

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

1шт.

17a

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

1шт.

18

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

tube, if used

2шт.

19

D68646

CLAMP

tube, if used

2шт.

19a

D120679

CLAMP,Tube, 1/2"

spacer, tube, plastic, if used

2шт.

19b

195-525

WASHER,3/8", SAE

flat, plated, 3/8", if used

3шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

20" (508 mm) long, to left hand steering cylinder

2шт.

23

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

adjustable, left hand cylinder, Includes: Ref. 24

2шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

25

D126884

HOSE,9.53mm ID x 382mm L, SAE 100R1

15" (382 mm) long, to right hand steering cylinder

2шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, right hand cylinder, Incl. Ref. 27

2шт.

27

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

28

D128454

STEERING CYLINDER

CYLINDER steering, parts list Figure 164

2шт.

Ref #28 D128454 cylinder Replaced by part

1шт.

nbr D147753, not a sub. Refer to Service Bulletin NLB SB 002 91.

1шт.

29

95-10

WASHER,5/8"

flat, , two wheel drive models 5/8"

1шт.

30

129-610

SLOTTED NUT,5/8"-18, G5

4шт.

31

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

4шт.

32

D120745

HOSE

21-1/2" (550 mm) long, closed end of left hand cylinder to rod end of right hand cylinder, no longer used, order D123917 hose

1шт.

33

D123917

HOSE

25-1/2" (650 mm) long, cylinders

1-2шт.

34

L17508

CLAMP

items 32 and 33 only, fastens to front axle

1шт.

35

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, adjustable, right hand cylinder, used with item 32, Includes: Ref. 36

1шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

37

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, adjustable, right hand cylinder, used with item 33, Includes: Ref. 38

1шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

39

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

adjustable, left hand cylinder, used with item 32, Includes: Ref. 40

1шт.

40

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

41

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

adjustable, left hand cylinder, used with item 33, Includes: Ref. 42

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

43

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened, rod end of steering cylinders on models with D127440 Carraro 710 transaxle

2шт.
