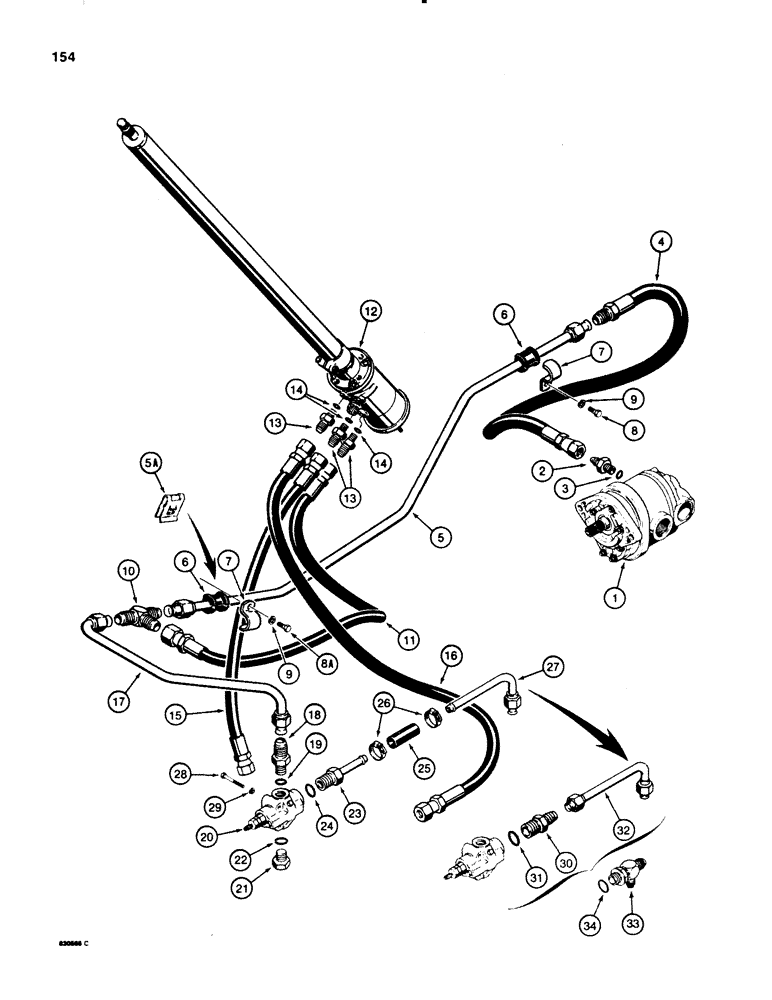

Запчасти Case 580E (154) - STEERING HYDRAULIC CIRCUIT, HYDRAULIC PUMP TO STEERING CONTROL VALVE AND RELIEF VALVE (05) - STEERING

1

REF

INSTRUCTION

PUMP hydraulic, power steering and equipment, See Figure 388, Ref #1 hydraulic pump For fittings and hoses, from pump to loader control valve, See Figure 310.

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, hydraulic pump to hose, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING connector

1шт.

4

D89554

HOSE

19-7/8" (500 mm) long, from hydraulic pump

1шт.

5

D94525

HYD TUBE,19.05 mm OD x 1097, 449 mm L

TUBE from hydraulic pump

1шт.

5a

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

1шт.

6

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube

2шт.

7

D74192

CLAMP

tube

2шт.

8

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

8a

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

218-596

TEE,1 1/16"-12 37 Degree

male

1шт.

11

L51379

HOSE

16-1/2" (419 mm) long, to control valve

1шт.

12

D91505

PUMP

VALVE control, steering, includes steering column, parts list Figure 160

1шт.

12

D91505R

REMAN-STEERING VALVE

580SE CASE SUPER-E CONSTRUCTION KING LOADER BACKHOE, VALVE control, steering, includes steering column

1шт.

12

D91505C

CORE-STEERING VALVE

Return Number

1шт.

13

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, control valve, Includes: Ref. 14

3шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

15

R33545

HOSE

21" (533 mm) long, return, from control valve

1шт.

16

D89556

HOSE

29-1/2" (750 mm) long, to rear line, See Figures 314 item 9 and 318 item 6 for clamp

1шт.

17

D94527

HYD TUBE,19.05 mm OD x 534, 95 mm L

TUBE to relief valve

1шт.

18

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, tube to relief valve, Includes: Ref. 19

1шт.

19

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter, Replaced 218 5007

1шт.

20

D142330

BUSHING

VALVE relief, steering, parts list Figure 444, Replaced REF

1шт.

21

86512512

PLUG,7/8" - 14 ORB

Relief valve, Incl. Ref. 22 Hex Hd, 7/8"-14 ORB

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING plug

1шт.

23

217-394

FITTING,5/8" Hose Barb x 1-1/16" - 12 Male ORB

stem, straight, relief valve outlet, used with D90623 tube, if used, Includes: Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING stem fitting

1шт.

25

D121521

HYDRAULIC HOSE,15.88 mm ID x 75.00 mm

Special, Relief Valve Outlet, Used with D90623 tube, if used 15.88 mm ID x 75.00 mm

1шт.

26

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose, if used

2шт.

27

D90623

HYD TUBE,15.88 mm OD x 93.8, 184 mm L

TUBE relief valve return, no longer used, for service order D128307 tube and 218-5063 adapter

1шт.

28

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

30

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, male, relief valve outlet, if used, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING adapter

1шт.

32

D128307

TUBE ASSY.

TUBE relief valve return, if used

1шт.

33

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

male, adjustable, if used, Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING tee, if used

1шт.
