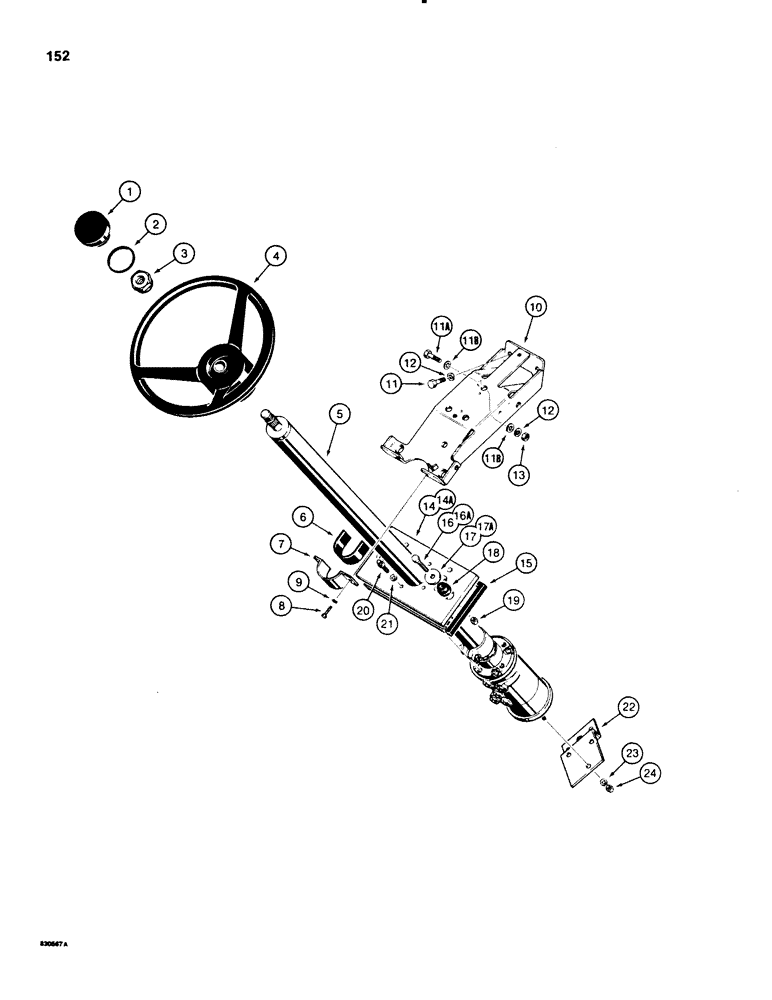

Запчасти Case 580E (152) - STEERING WHEEL AND COLUMN (05) - STEERING

1

A62210

PLUG

CAP steering wheel

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

O RING cap

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT steering wheel retaining

1шт.

4

A65544

STEERING WHEEL

- Tractor

1шт.

5

D91505

PUMP

VALVE control, steering, includes steering column, See Figure 160

1шт.

5

D91505R

REMAN-STEERING VALVE

580SE CASE SUPER-E CONSTRUCTION KING LOADER BACKHOE, VALVE control, steering, includes steering column

1шт.

5

D91505C

CORE-STEERING VALVE

Return Number

1шт.

6

D66844

PADDING

COLLAR steering column

1шт.

7

D66049

CLAMP

steering column

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

D94995

BRACKET

steering column support

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11b

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

D83767

PLATE

control valve, top, 5/16" (8 mm) thick, no longer used

1шт.

*

order D132593 plate, item 14A

1шт.

14a

D132593

PLATE

control valve, top, 1/8" (3 mm) thick, Replaces items 14 and 15

1шт.

*

on some models, see item 15A

1шт.

15

D83770

RUBBER SEAL

control valve plate, used with D83767 plate, item 14, only

1шт.

15a

REF

INSTRUCTION

SEALANT .3 oz (9 ml) required with item 14A plate on cab models only, not shown

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with items 14 and 15 Hex, 3/8"-16 x 1 1/2", G5

2шт.

16a

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with item 14A plate Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

17

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

special, hardened, used with items 14 and 15

2шт.

17a

195-525

WASHER,3/8", SAE

flat, plated, 3/8", used with item 14A plate

2шт.

18

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR control valve plate, used with items 14 and 15

2шт.

19

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

20

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

BOLT Ferry head, grade 8, control valve mounting, 5/16" - 18 NC x 5/8"

4шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

D86426

PLATE

control valve, bottom

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

24

9635082

NUT,5/16" - 18, Gr 5

3шт.

345-108

SEALANT Weatherband, gray, 3M No. 404, 16 oz (473 ml)

1шт.
