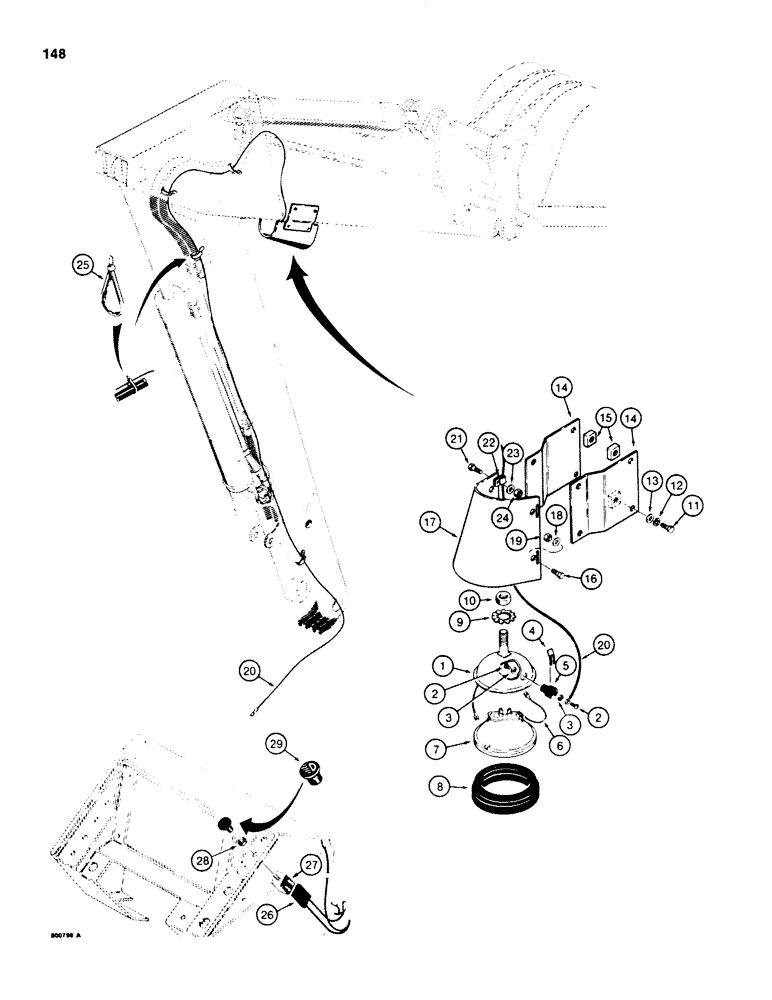

Запчасти Case 580E (148) - DIPPER LAMP, USED WITH NON-EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

D37811

LAMP

ASSEMBLY, dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

2

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

machine, pan head slotted, No. 8 - 32 NC x 1/4"

2шт.

3

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

4

10927

SPRING

lamp

1шт.

5

B50293

TERMINAL CONNECTOR

lamp

1шт.

6

A25262

ELECTRICAL WIRE

WIRE lamp

1шт.

7

A42294

SEALED BEAM UNIT

BULB sealed beam, No. 4406

1шт.

8

D31441

RETAINER

lamp

1шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

10

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

4шт.

14

D56849

BRACKET

support, shield

2шт.

15

D30458

BLOCK

tapped, Serial Range: welded-dipper

4шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

D41427

SHIELD

dipper lamp

1шт.

18

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

4шт.

19

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

4шт.

20

D50717

HARNESS

WIRE to dipper lamp

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

wire, at dipper

1шт.

23

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.

24

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

26

D75761

HARNESS

WIRE from dipper lamp switch

1шт.

27

D74330

SWITCH

dipper lamp, Includes: Ref. 28

1шт.

28

N7557

NUT

special, 3/8" - 24 NF, switch retaining

1шт.

29

D70448

KNOB

dipper lamp switch

1шт.
