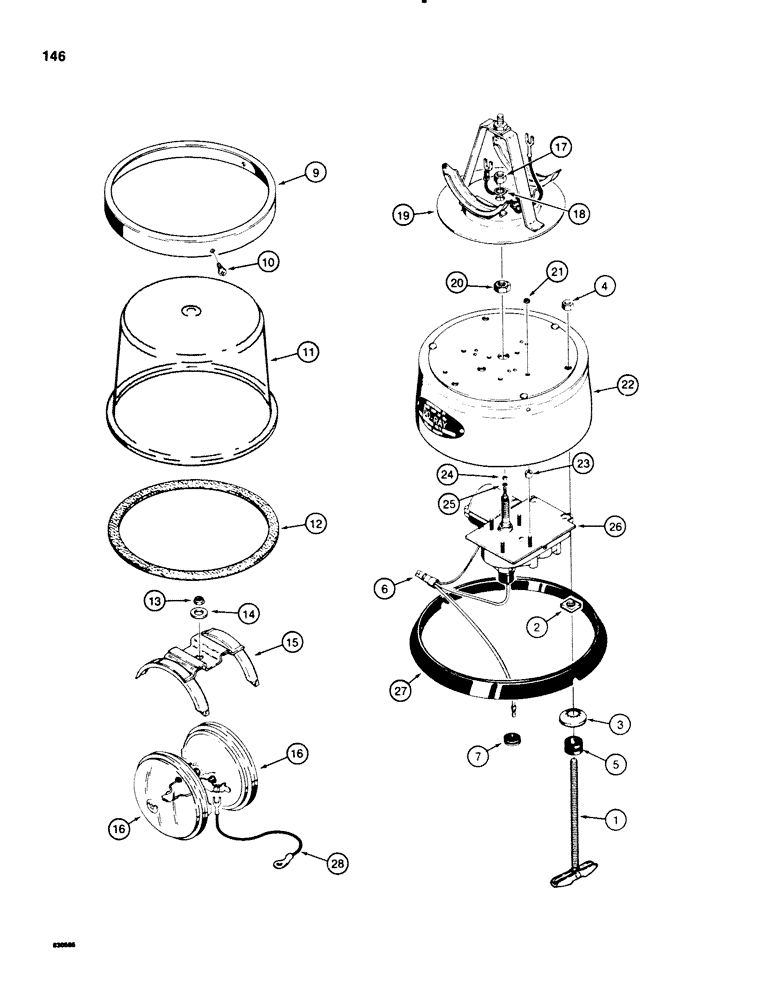

Запчасти Case 580E (146) - ROTATING BEACON (04) - ELECTRICAL SYSTEMS

F93158

LAMP

ROTATING BEACON ASSEMBLY, 360 degree, amber, includes a switch

1шт.

and wire not used on 580 Super E, Includes: Ref. 1 - 28

1шт.

L35092

KIT

mounting, includes an instruction sheet, Includes: Ref. 1 - 8

1шт.

1

L35148

BOLT

toggle, No. 10 - 24 NC

3шт.

2

129-47

NUT

square, No. 10 - 24 NC

3шт.

3

L35146

LOCK WASHER

WASHER lock, No. 10

3шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

5

F13115

GROMMET

rubber, mounting

3шт.

6

T29401

NUT

twist on, wire

1шт.

7

A43211

GROMMET

rubber, wire

1шт.

8

L35145

HARNESS

WIRE, 8 foot block, not shown

1шт.

9

L32219

RING clamp, lens

1шт.

10

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

drive, plated, No. 8 x 3/8"

3шт.

11

L32221

LENS

amber

1шт.

12

L32220

GASKET lens

1шт.

13

131-204

NUT,1/4"-20

NUT hex, self locking, plated, 1/4" - 20 NC

1шт.

14

195-102

WASHER,1/4"

flat, plated, 1/4"

1шт.

15

L32222

BRACKET retainer, sealed beam lamp

1шт.

16

D66204

LAMP

sealed beam, No. 4416

2шт.

17

129-175

NUT,3/8"-16, G5, LH

hex, plated, left hand thread, 3/8" - 16 NC

1шт.

18

193-94

WASHER internal tooth lock, left hand twist, 3/8"

1шт.

19

L32224

PLATE mounting, lamp

1шт.

20

L32225

NUT

special brass

1шт.

21

131-29

LOCK NUT,#8-32, GB

NUT hex, self locking, plated, No. 8 - 32 NC

4шт.

22

L32226

BASE

motor and lens

1шт.

23

L32228

SPACER

, Serial Range: motor-base

4шт.

24

129-13

NUT,#4-40

2шт.

25

192-13

WASHER,#4

Lock, #4

1шт.

26

D65187

MOTOR

electric, 12 volt

1шт.

27

L32227

GASKET

base

1шт.

28

L35144

WIRE ground

1шт.
