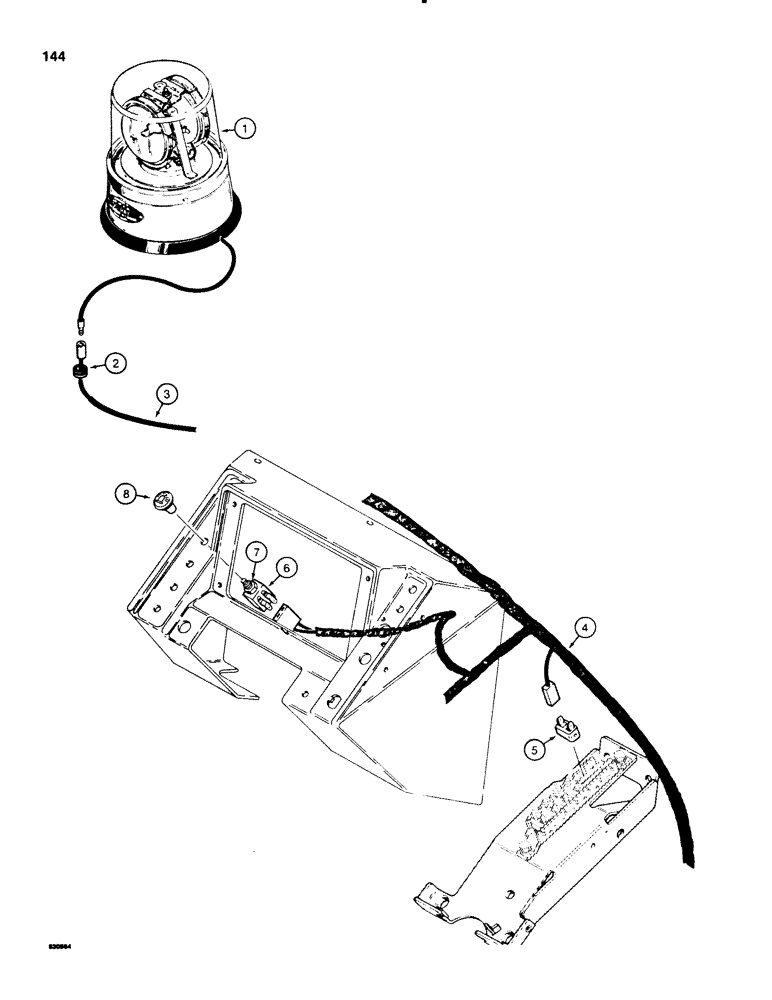

Запчасти Case 580E (144) - ROTATING BEACON AND CIRCUIT (04) - ELECTRICAL SYSTEMS

1

F93158

LAMP

BEACON rotating, See Figure 146

1шт.

2

A23870

GROMMET

wire, canopy only, use in place of item 7 on Figure 146

1шт.

3

REF

INSTRUCTION

HARNESS cab or canopy, See Figure 126 for canopy and Figure 128 for cab

1шт.

4

REF

INSTRUCTION

HARNESS flasher and rotating beacon switches, See Figure 126 for canopy and Figure 128 for cab

1шт.

5

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER 15 amperes

1шт.

6

D74330

SWITCH

rotating beacon, Includes: Ref. 7

1шт.

7

N7557

NUT

special, 3/8" - 24 NF, switch retaining

1шт.

8

D92573

BUTTON

KNOB rotating beacon switch

1шт.
