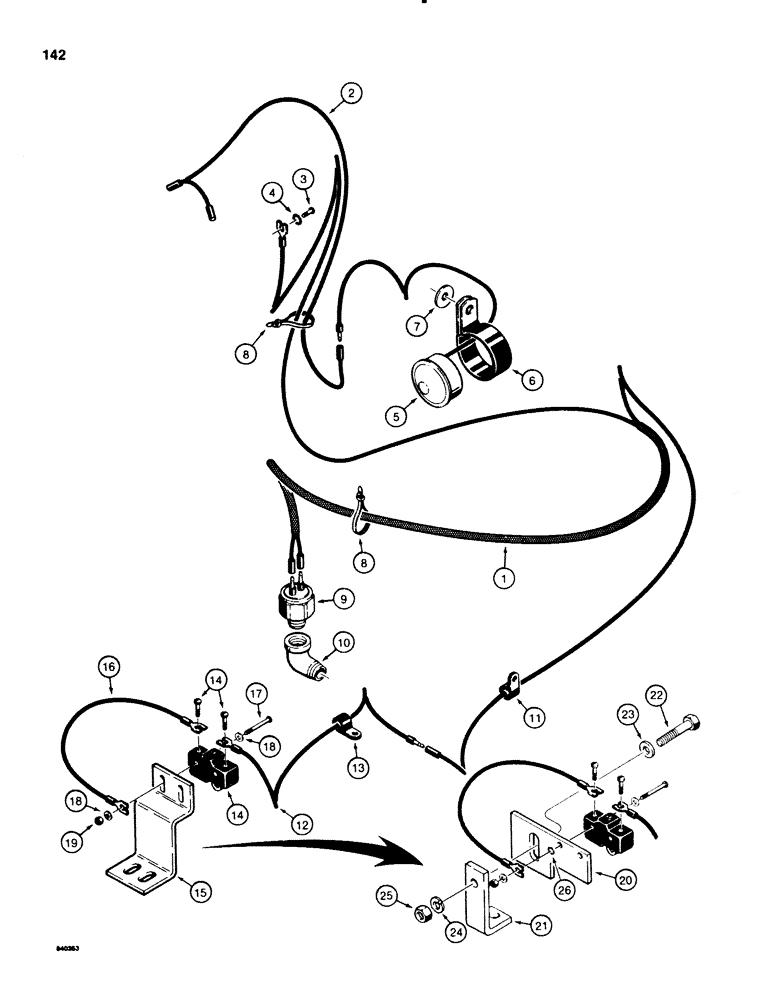

Запчасти Case 580E (142) - PARKING BRAKE ALARM (04) - ELECTRICAL SYSTEMS

1

D126934

ELECTRICAL WIRE

HARNESS parking brake alarm

1шт.

2

D75454

ELECTRICAL WIRE

WIRE circuit, Serial Range: breaker-alarm

1шт.

3

182-81

SCREW,Slotted Pan Hd, #8-32 x 3/16"

machine, pan head slotted, No. 8 -32 NC x 3/16"

1шт.

4

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

1шт.

5

D126995

BUZZER

ALARM parking brake

1шт.

6

D120561

CLAMP

alarm mounting, uses existing solenoid mounting hardware plus item 7 spacer

1шт.

7

195-2011

WASHER,5/16" x 1" x .083"

flat, 1/4" bolt size, 5/16" ID x 1" OD x 3/32" thick, used as a spacer

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

9

D127319

SWITCH

pressure

1шт.

10

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, replaces existing 1/8" plug located on the left hand side of the power shuttle behind 90º, 1/8"-27, NPT

1шт.

the shift lever

1шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

harness, uses existing hydraulic brake tube mounting hardware

1шт.

on right hand side of frame channel

1шт.

12

D126933

ELECTRICAL WIRE

WIRE micro switch to parking brake alarm

1шт.

13

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

wire, uses existing transaxle shift control cover mounting hardware

1шт.

14

D134622

SWITCH

micro

1шт.

15

D126919

ALARM

BRACKET micro switch mounting, uses existing parking brake cable mounting bracket hardware, no longer available, order D101656

1шт.

kit and, 1, 193 4 washer

1шт.

16

D126935

ELECTRICAL WIRE

WIRE ground, micro switch

1шт.

17

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

machine, pan head slotted, plated, No. 6 - 32 NC x 1-1/4"

2шт.

18

195-507

WASHER,#6

flat, plated, No. 6

4шт.

19

193-1003

NUT,Keps, w/LW,#6-32

AND LOCK WASHER plated, No. 6 - 32 NC

2шт.

D101656

ALARM

KIT, service, parking brake alarm micro switch mounting, includes

1шт.

installation instruction, Includes: Ref. 20 - 25

1шт.

20

D128291

PLATE

micro switch mounting

1шт.

21

D65647

BRACKET

plate, support, uses existing parking brake cable mounting

1шт.

bracket hardware

1шт.

22

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

23

95-6

WASHER,3/8"

flat, 3/8"

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

26

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

1шт.
