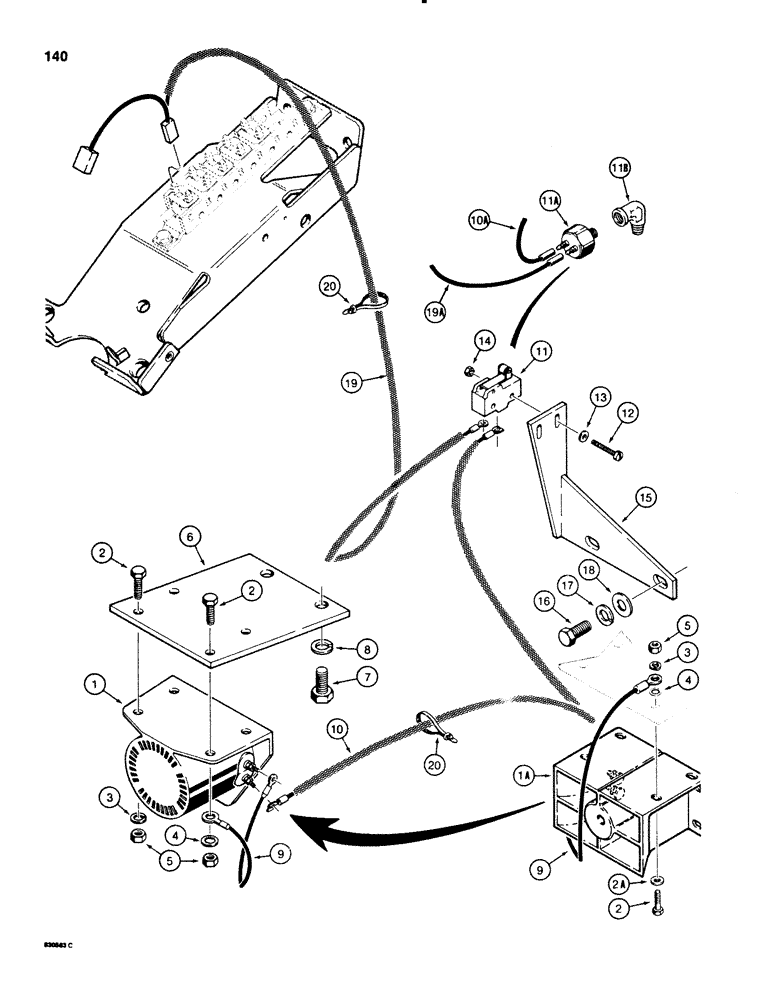

Запчасти Case 580E (140) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D75814

BUZZER

ALARM backup, electric, round type, if used

1шт.

1a

D121972

ALARM

backup, electric, rectangular type, if used

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

2a

195-521

WASHER,5/16", SAE

flat, 5/16", plated, used with rectangular type alarm only

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3-4шт.

4

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

D91219

BRACKET

PLATE backup alarm mounting

1шт.

7

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

D70125

ELECTRICAL WIRE

WIRE ground

1шт.

10

D89613

ELECTRICAL WIRE

WIRE micro switch to alarm, if used

1шт.

10a

D131326

ELECTRICAL WIRE

WIRE pressure switch to alarm, if used

1шт.

11

D134622

SWITCH

micro, backup alarm, if used

1шт.

11a

D127319

SWITCH

pressure, backup alarm, if used

1шт.

11b

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street, Shuttle port, if used 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

12

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

machine, pan head slotted, plated, No. 6 - 32 NC x 1-1/4"

2шт.

13

195-507

WASHER,#6

flat, plated, No. 6

2шт.

14

193-1003

NUT,Keps, w/LW,#6-32

AND LOCK WASHER plated, No. 6 - 32 NC

2шт.

15

D89607

BRACKET

switch

1шт.

16

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

17

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

18

195-105

WASHER,7/16"

flat, plated, 7/16"

2шт.

19

D76756

ELECTRICAL WIRE

WIRE micro switch to circuit breaker, if used

1шт.

19a

D131327

HARNESS

WIRE pressure switch to circuit breaker, if used

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.
