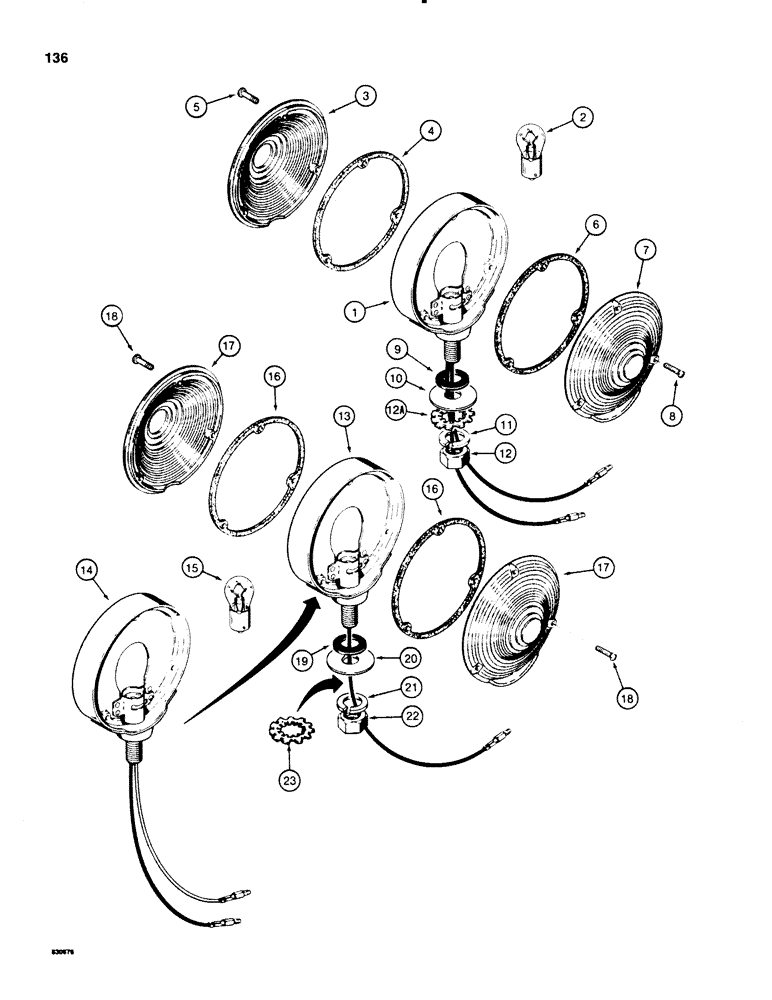

Запчасти Case 580E (136) - TRACTOR LAMPS, STOP AND TAIL AND FLASHER LAMPS, D49733 STOP (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
D49733
LAMP
ASSEMBLY, stop and tail, used on models without cab or canopy, Includes: Ref. 1 - 12
2шт.
For stop and tail lamp on models with cab or canopy, See Figure 134.
1шт.
1
NSS
NOT SOLD SEPARAT
BODY lamp, complete
1шт.
2
T34857
BULB,C6, #1157, 12.8V
stop and tail, No. 1157
1шт.
L32213
LENS
KIT, lens replacement, red, Includes: Ref. 3 - 5
1шт.
3
NSS
NOT SOLD SEPARAT
LENS red
1шт.
4
NSS
NOT SOLD SEPARAT
GASKET lens
1шт.
5
182-565
SCREW,Sltd Pan Hd, #8-32 x 5/8"
machine, pan head slotted, self locking, plated, No. 6 - 32 NC x 5/8"
3шт.
L32214
LENS
KIT, lens replacement, amber, Includes: Ref. 6 - 8
1шт.
6
NSS
NOT SOLD SEPARAT
GASKET lens
1шт.
7
NSS
NOT SOLD SEPARAT
LENS amber
1шт.
8
182-565
SCREW,Sltd Pan Hd, #8-32 x 5/8"
machine, pan head slotted, self locking, plated, No. 6 - 32 NC x 5/8"
3шт.
9
L32256
WASHER
BUSHING rubber
1шт.
10
195-105
WASHER,7/16"
flat, plated, 1/2"
1шт.
11
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
12
129-125
NUT,1/2"-20, G5
1шт.
12a
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
2шт.
D49734
LAMP
ASSEMBLY, flasher, used on models without cab or canopy
2шт.
D122121
LAMP,12V
ASSEMBLY, flasher, used on models with cab or canopy, Includes: Ref. 13 - 22
2шт.
13
NSS
NOT SOLD SEPARAT
BODY D49734 lamp assembly, without ground wire
1шт.
14
NSS
NOT SOLD SEPARAT
BODY D122121 lamp assembly, with additional ground wire
1шт.
15
A41264
BULB,#1156, 12V
Flasher #1156, 12V
1шт.
L32214
LENS
KIT, lens replacement, Includes: Ref. 16 - 18
2шт.
16
NSS
NOT SOLD SEPARAT
GASKET lens
1шт.
17
NSS
NOT SOLD SEPARAT
LENS amber
1шт.
18
182-565
SCREW,Sltd Pan Hd, #8-32 x 5/8"
machine, pan head slotted, self locking, plated, No. 6 - 32 NC x 5/8"
3шт.
19
L32256
WASHER
BUSHING rubber
1шт.
20
195-105
WASHER,7/16"
flat, plated, 1/2"
1шт.
21
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
22
129-125
NUT,1/2"-20, G5
1шт.
23
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , Used on models Ext-Int Tooth, 1/2"
1шт.
without cap or canopy
2шт.
Выбрано товаров: 32
