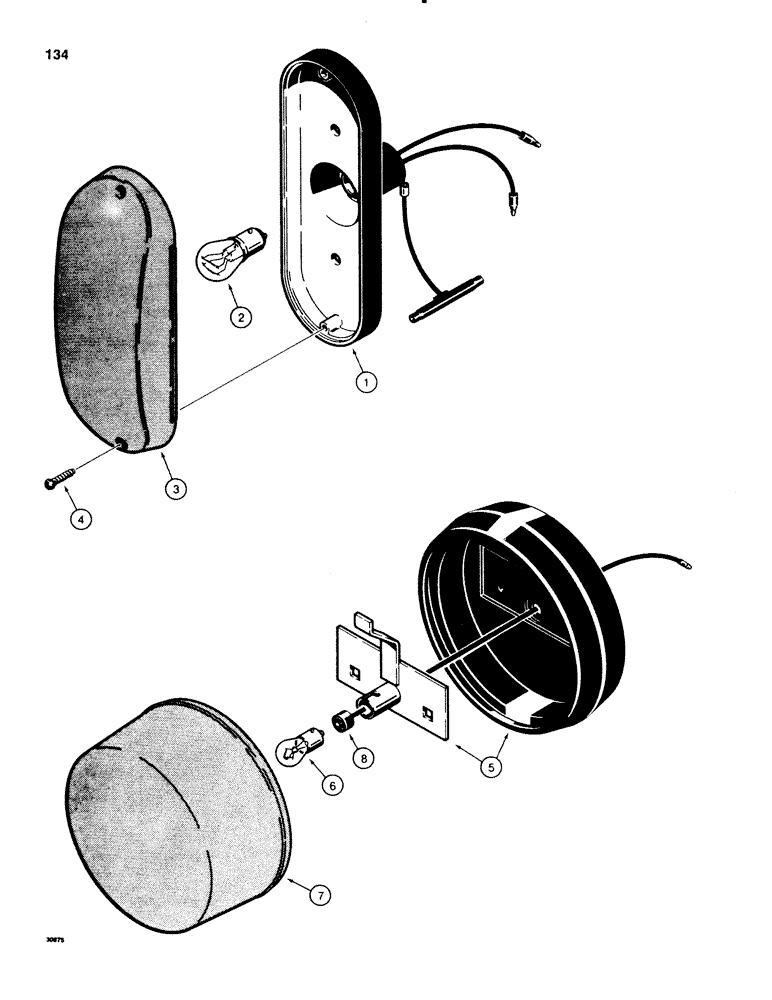

Запчасти Case 580E (134) - TRACTOR LAMPS, STOP AND TAIL LAMPS, D121152 STOP AND TAIL (04) - ELECTRICAL SYSTEMS

D121152

LAMP,12V

ASSEMBLY, stop and tail, used on models with cab or canopy with flasher lamps, Includes: Ref. 1 - 4

2шт.

For stop and tail lamp on models without cab or canopy, See Figure 136.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp, complete

1шт.

2

T34857

BULB,C6, #1157, 12.8V

stop and tail, No. 1157

1шт.

3

N6836

LENS

red

1шт.

4

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW round head, self tapping, plated, No. 6 - 32 NC x 5/8"

2шт.

D91096

LIGHT ASSY.

TAIL LAMP ASSEMBLY, used on models with canopy without side mounted flasher lamps

1шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SOCKET lamp

1шт.

6

N6835

BULB

tail lamp, No. 97

1шт.

7

L31185

LIGHT FAIRING

LENS red

1шт.

8

L31186

ELECTRICAL WIRE

WIRE lamp

1шт.
