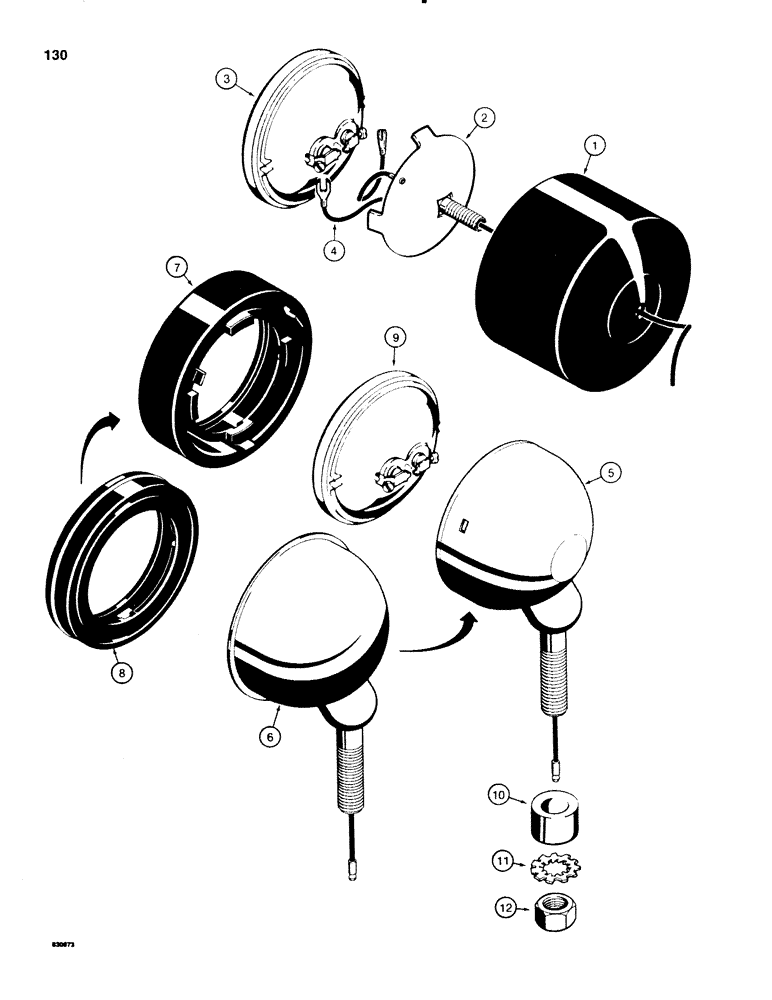

Запчасти Case 580E (130) - INCANDESCENT TRACTOR LAMPS, FRONT DRIVING AND REAR FLOOD LAMPS,USED ON MODELS W/O CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

F96725

LAMP BASE

LAMP ASSEMBLY, front driving, incandescent, used on models without cab or canopy, Includes: Ref. 1 - 3

2шт.

1

F44804

BODY

SHELL lamp

1шт.

2

F44805

SUPPORT ASSY.

WASHER support

1шт.

3

A11280

LAMP

BULB sealed beam, No. 4411

1шт.

4

NSS

NOT SOLD SEPARAT

WIRE lamp, make locally

1шт.

D88684

LAMP

ASSEMBLY, rear, incandescent, interchangeable with D49976

1шт.

used on models without canopy or cab, Includes: Ref. 5 - 12

2шт.

5

NSS

NOT SOLD SEPARAT

SHELL lamp, uses item 7 only

1шт.

6

NSS

NOT SOLD SEPARAT

SHELL lamp, uses item 8 only

1шт.

7

A25213

RETAINER

lamp, rubber, locks to shell with 3 rubber tabs, if used

1шт.

8

N6160

LAMP

RETAINER lamp, rubber, locks over shell flange, if used

1шт.

9

A11280

LAMP

BULB sealed beam, No. 4411

1шт.

10

D37048

BUSHING

pivot

1шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

12

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.
