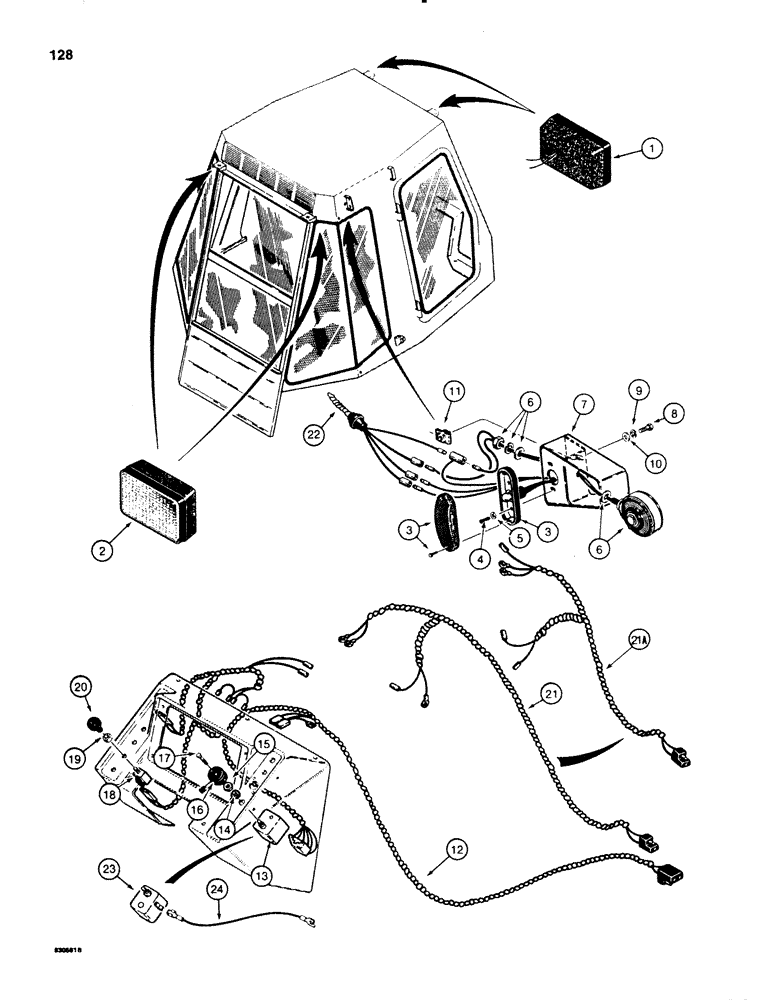

Запчасти Case 580E (128) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

F96838

LAMP

ASSEMBLY, front driving, halogen, used without hinge bracket, See Figure 132, for lamp mounting and cab harness See Figures 616 and 632

2шт.

2

F96838

LAMP

ASSEMBLY, rear flood, halogen, used with hinge bracket, See Figure 132, for lamp mounting and cab harness See Figures 616 and 632

2шт.

3

D121152

LAMP,12V

ASSEMBLY, stop and tail, See Figure 134

2шт.

4

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW pan head, self tapping, plated, No. 8 x 5/8"

4шт.

5

195-510

WASHER,#8

flat, plated, No. 8

4шт.

6

D122121

LAMP,12V

ASSEMBLY, flasher, See Figure 136

2шт.

7

D120124

BRACKET

side lamp

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

195-103

WASHER,5/16"

flat, plated, 5/16"

4шт.

11

131-636

SPRING NUT,J, Ret, 5/16"-18

j type, 5/16" - 18 NC

4шт.

12

D88132

HARNESS

flasher switches, See Figure 106 or 108 for clamps

1шт.

13

A77184

SWITCH

turn signal, no longer used, order D135847 kit, see below

1шт.

14

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

15

D91352

JAM NUT

special, 3/4" - 20 National Extra Fine

1шт.

16

A141736

KNOB

turn signal switch

1шт.

17

193-556

SCREW,SEMS, Pan Hd, #5-40 x 1/2"

AND LOCK WASHER plated, No. 5 - 40 NC x 1/2"

1шт.

18

D74330

SWITCH

flasher, See Figure 106 or 108 for front and rear lamp switches, Includes: Ref. 19

1шт.

19

N7557

NUT

special, 3/8" - 24 NF, switch retaining

1шт.

20

D88134

KNOB

flasher switch

1шт.

21

D88133

HARNESS

cab power, used on models with test switch and solenoid, See Figure 106, See Figure 632 for cab harness

1шт.

21a

D129823

HARNESS

cab power, used on models without test switch and solenoid, See Figure 108, See Figure 632 for cab harness

1шт.

22

F45224

HARNESS

cab

1шт.

D135847

ASSEMBLY

KIT, turn signal and flasher, includes instruction sheet, Includes: Ref. 23 - 24

1шт.

23

D134896

FLASHER UNIT

SWITCH turn signal, used with item 24 ground wire, Replaces switch without ground wire on some models

1шт.

24

D135829

ELECTRICAL WIRE

WIRE ground, used with item 23 switch, wire grounds to harness bracket, item 11 on Figure 108

1шт.
