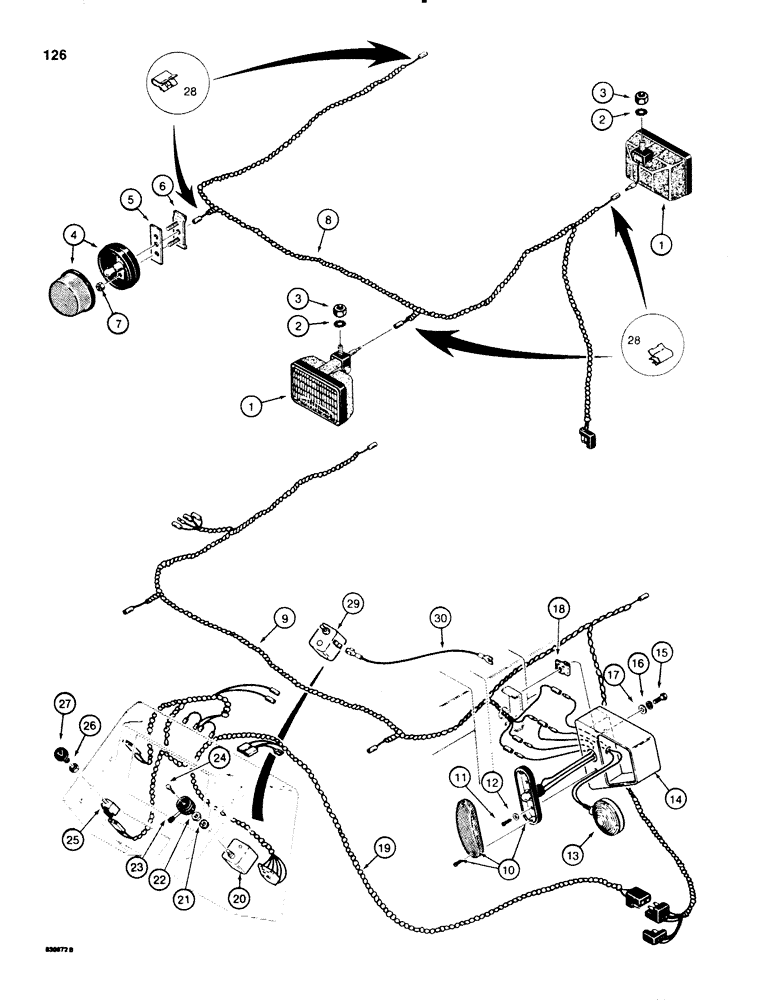

Запчасти Case 580E (126) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

F96838

LAMP

ASSEMBLY, flood, halogen, See Figure 132

3-4шт.

2

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

3-4шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

3-4шт.

4

D91096

LIGHT ASSY.

TAIL LAMP ASSEMBLY, used on models without flasher lamps only, see items 1 and 10, See Figure 134

1шт.

5

D91089

PLATE

retainer, tail lamp, if used

1шт.

6

D91091

BRACKET

tail lamp, if used

1шт.

7

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER plated, 1/4" - 20 NC

2шт.

8

D88042

HARNESS

canopy, used without flasher lamps

1шт.

9

D89974

HARNESS

canopy, used with flasher lamps

1шт.

10

D121152

LAMP,12V

ASSEMBLY, stop and tail, if used, see item 4 above, See Figure 134

2шт.

11

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW pan head, self tapping, plated, No. 8 x 5/8"

4шт.

12

195-510

WASHER,#8

flat, plated, No. 8

4шт.

13

D122121

LAMP,12V

ASSEMBLY, flasher, See Figure 136

2шт.

14

D120124

BRACKET

side lamps, if used

2шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

4шт.

17

195-103

WASHER,5/16"

flat, plated, , if used 5/16"

4шт.

18

131-636

SPRING NUT,J, Ret, 5/16"-18

j type, 5/16" - 18 NC, if used

4шт.

19

D88132

HARNESS

flasher switches, if used, See Figure 106 or 108 for clamps

1шт.

20

A77184

SWITCH

turn signal, no longer used, order D135847 kit, see below

1шт.

21

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

22

D91352

JAM NUT

special, 3/4" - 20 National Extra Fine

1шт.

23

A141736

KNOB

turn signal switch

1шт.

24

193-556

SCREW,SEMS, Pan Hd, #5-40 x 1/2"

AND LOCK WASHER plated, No. 5 - 40 NC x 1/2"

1шт.

25

D74330

SWITCH

flasher, See Figure 106 or 108 for front and rear lamp switches, Includes: Ref. 26

1шт.

26

N7557

NUT

special, switch retaining, 3/8" - 24 NF

1шт.

27

D88134

KNOB

flasher switch

1шт.

28

214-1102

CLIP

wire, if used

3-4шт.

D135847

ASSEMBLY

KIT turn signal, includes instruction sheet, Includes: Ref. 29 - 30

1шт.

29

D134896

FLASHER UNIT

SWITCH turn signal and flasher, used with item 30 ground wire

1шт.

replaces switch without ground wire on some models

1шт.

30

D135829

ELECTRICAL WIRE

WIRE ground, used with item 29 switch, wire grounds to harness bracket, item 11 on Figure 108

1шт.
