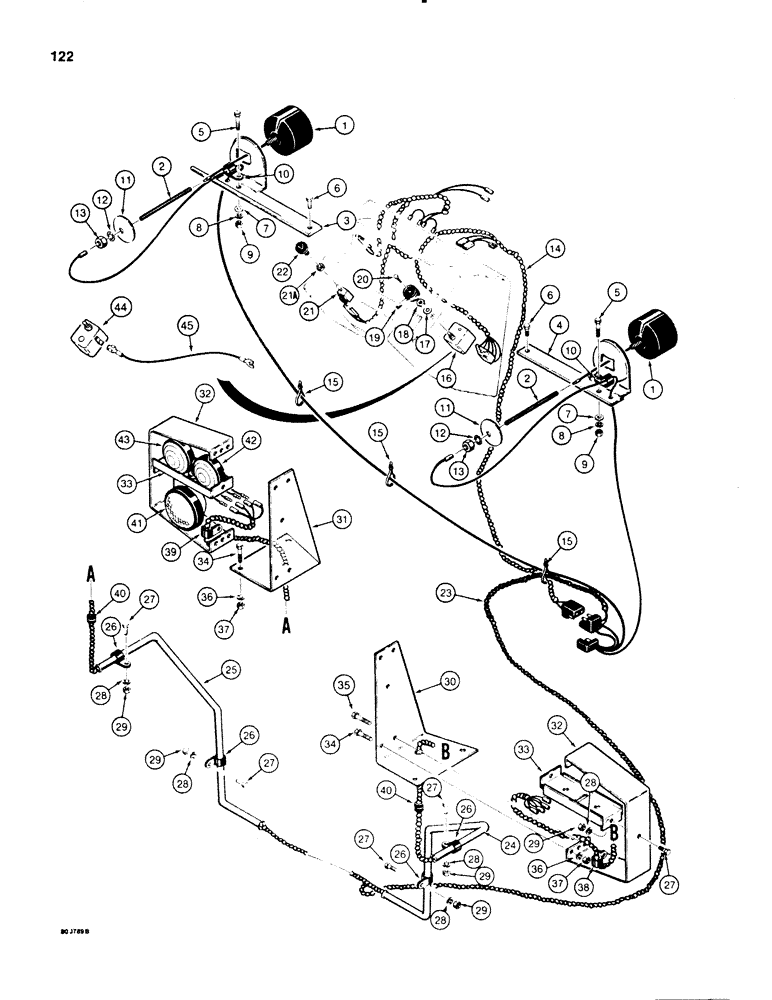

Запчасти Case 580E (122) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITHOUT CANOPY OR CAB (04) - ELECTRICAL SYSTEMS

1

F96725

LAMP BASE

LAMP ASSEMBLY, front driving, incandescent, See Figure 130

2шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE lamp wire

2шт.

3

D89547

BAR

BRACKET AND HANDLE left hand lamp

1шт.

4

D89548

BAR

BRACKET right hand lamp

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Outside Hex, 3/8"-16 x 1 1/2", G5

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Inside Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

7

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

lamp wires

2шт.

11

A59702

RETAINER

WASHER retainer

2шт.

12

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

D88132

HARNESS

front driving lamps and flasher, for clamps See Figure 106 or 108

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

16

A77184

SWITCH

turn signal, no longer used, order D135847 kit, see below

1шт.

17

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

18

D91352

JAM NUT

special, 3/4" - 20 National Extra Fine

1шт.

19

A141736

KNOB

turn signal switch

1шт.

20

193-556

SCREW,SEMS, Pan Hd, #5-40 x 1/2"

AND LOCK WASHER black, No. 5 - 40 NC x 1/2"

1шт.

21

D74330

SWITCH

flasher, See Figure 106 or 108 for front and rear lamp switches, Includes: Ref. 21A

1шт.

21a

N7557

NUT

special, switch retaining, 3/8" - 24 NF

1шт.

22

D88134

KNOB

flasher switch

1шт.

23

D89576

HARNESS

rear lamps and flasher

1шт.

24

D89560

CONDUIT

right hand fender

1шт.

25

D89561

CONDUIT

left hand fender

1шт.

26

R14668

CLAMP

conduit

4шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

30

D89565

BRACKET

upright, right hand

1шт.

31

D89566

BRACKET

upright, left hand

1шт.

32

D58721

BRACKET

rear lamp, outer

2шт.

33

D58713

LARGE PLATE

BRACKET rear lamp, center

2шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

35

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

38

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

wire, right hand side

1шт.

39

49838

CLAMP

wire, left hand side

1шт.

40

D37936

GROMMET

rubber

2шт.

41

D88684

LAMP

ASSEMBLY, rear flood, incandescent, See Figure 130

2шт.

42

D49733

LAMP

ASSEMBLY, stop and tail, See Figure 136

2шт.

43

D49734

LAMP

ASSEMBLY, signal and flasher, See Figure 136

2шт.

D135847

ASSEMBLY

KIT, turn signal, includes instruction sheet, Includes: Ref. 44 - 45

1шт.

44

D134896

FLASHER UNIT

SWITCH turn signal and flasher, used with item 45 ground wire, Replaces switch without ground wire on some models

1шт.

45

D135829

ELECTRICAL WIRE

WIRE ground, used with item 44 switch, wire grounds to harness bracket, item 11 on Figure 108

1шт.
