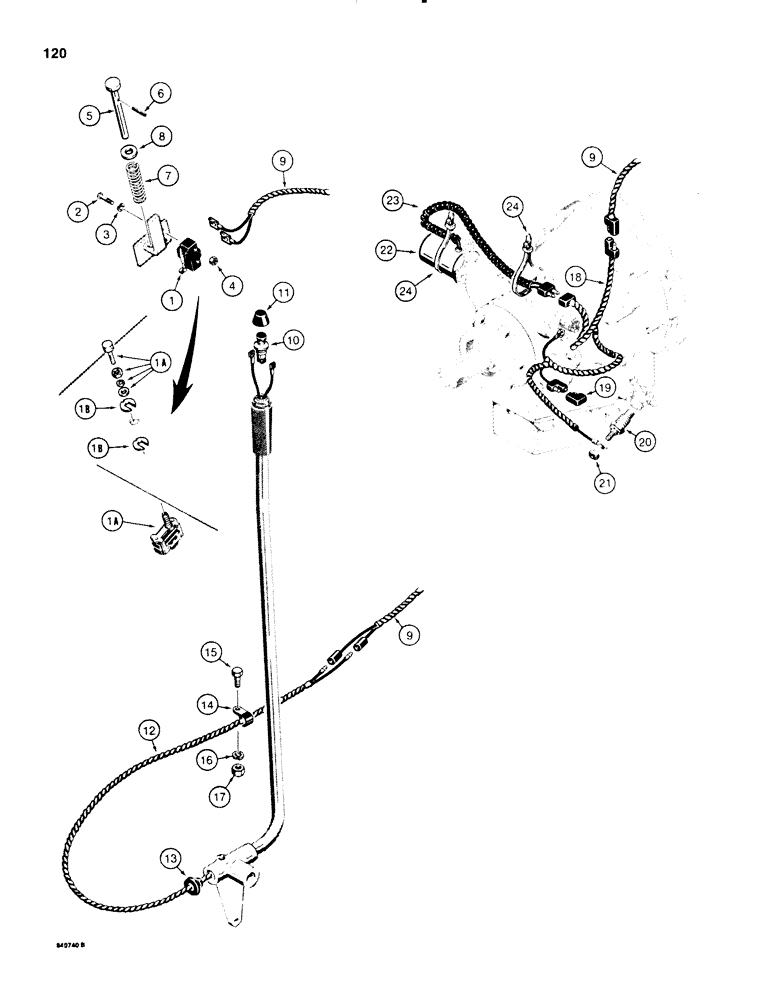

Запчасти Case 580E (120) - POWER SHUTTLE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D134622

SWITCH

clutch cutout, floor, used with D87604 floor plate with switch

1шт.

The switch mounting bracket shown in phantom at Ref. 1 is NSS weldment D90544.

1шт.

mounting bracket, if used, See Figure 586 for floor plate

1шт.

1a

D135612

SWITCH

clutch cutout, floor, used with D126612 floor plate without switch

1шт.

mounting bracket, if used, See Figure 586 for floor plate

1шт.

1b

D126116

BRACKET

WASHER special, used with D135612 clutch cutout switch only

2шт.

2

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

machine, pan head slotted, plated, No. 6 - 32 NC x 1-1/4", if used

2шт.

3

195-507

WASHER,#6

flat, No. 6, plated, if used

2шт.

4

193-1003

NUT,Keps, w/LW,#6-32

AND LOCK WASHER plated, No. 6 - 32 NC, if used

2шт.

5

D84327

ROD

switch actuating, if used

1шт.

6

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , If used 1/8" x 1", Slotted

1шт.

7

T34088

SPRING

rod return, if used

1шт.

8

195-525

WASHER,3/8", SAE

flat, plated, 3/8", if used

1шт.

9

REF

INSTRUCTION

HARNESS main, See Figure 106 or 108

1шт.

10

D91440

SWITCH

clutch cutout, lever handle

1шт.

11

D138252

BOOT

switch cover

1шт.

12

D88009

HARNESS

control lever switch

1шт.

13

D83832

GROMMET

lever

1шт.

14

49845

CLAMP

harness

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

18

D87972

LOOM

HARNESS shuttle

1шт.

19

L71879

DIODE ELEMENT,400V, 3A

DIODE switch protecting

1шт.

20

D65446

SENDER UNIT

SENDER shuttle oil temperature

1шт.

21

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER plated, No. 10 - 32 NF

1шт.

22

D134742

SOLENOID

clutch cutout, at power shuttle

1шт.

23

D88053

SLEEVE

solenoid wires

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.
