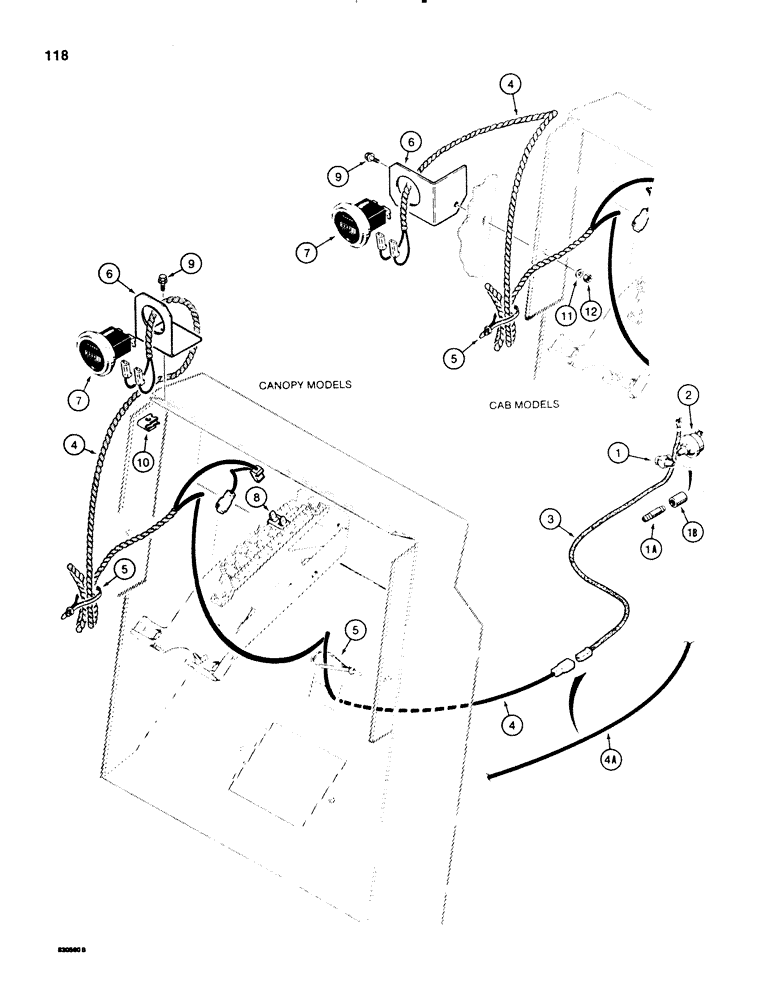

Запчасти Case 580E (118) - HOURMETER ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

1/8" NPT, at engine, if used

1шт.

1a

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE 1/8" NPT x 1-1/2"

1шт.

1b

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

2

H342774

SWITCH

SENDER hourmeter, at engine

1шт.

3

D92170

CABLE

WIRE from sender, used with D76118 harness only

1шт.

4

D76118

HARNESS

hourmeter, if used

1шт.

4a

D126556

HARNESS

hourmeter, if used

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

6

D75592

BRACKET

hourmeter

1шт.

7

D53047

GAUGE

HOURMETER ASSEMBLY, complete

1шт.

8

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER 15 amperes

1шт.

9

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

1шт.

10

131-641

NUT

u type, 5/16" - 18 NC

1шт.

11

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

12

9635082

NUT,5/16" - 18, Gr 5

1шт.
