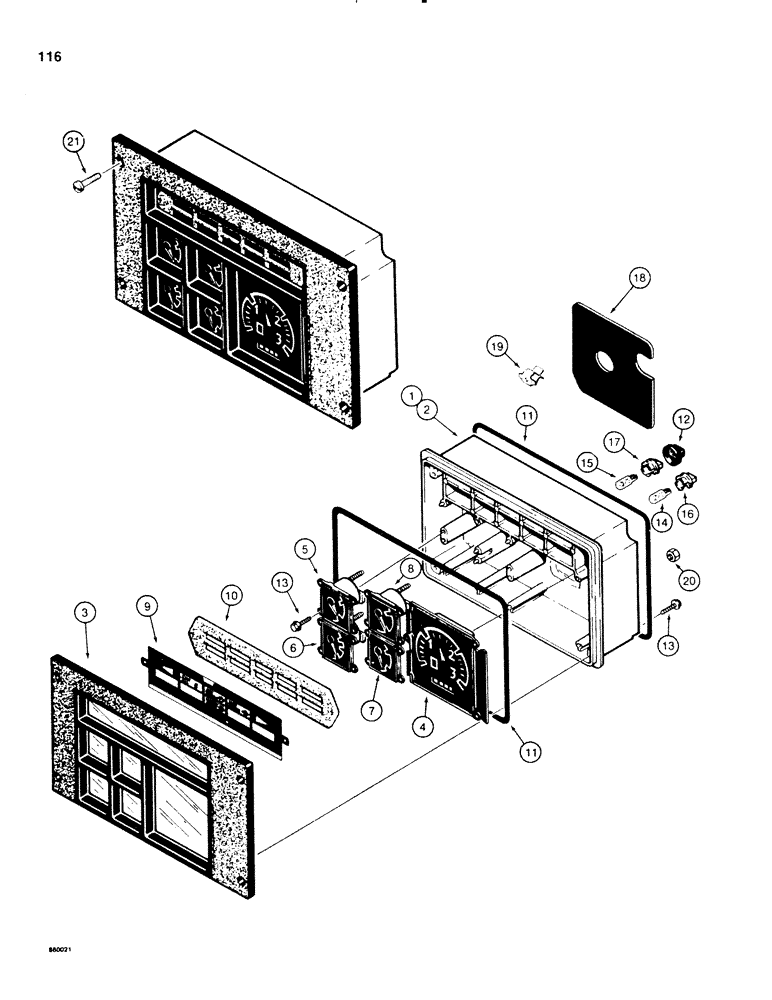

Запчасти Case 580E (116) - INSTRUMENT CLUSTER, USED WITH BOSCH ALTERNATOR, WITH ELECTRIC TACHOMETER (04) - ELECTRICAL SYSTEMS

D132690

CLUSTER

INSTRUMENT CLUSTER ASSEMBLY, electric, Includes: Ref. 1 - 20

1шт.

1

N13545

INSTRUMENT PANEL

instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

CIRCUIT printed, instrument cluster, not shown

1шт.

3

D71334

LENS

COVER instrument cluster

1шт.

4

N13543

TACHOMETER

GAUGE tachometer, includes hourmeter

1шт.

5

N13542

GAUGE

water temperature

1шт.

6

A47688

ELECTRICAL GAUGE

GAUGE fuel level

1шт.

7

N6807

ELECTRICAL GAUGE

GAUGE voltmeter

1шт.

8

N13546

GAUGE

oil temperature

1шт.

9

N13538

BAND

LENS identification, warning lamps

1шт.

10

D71342

GASKET,3.05mm Thk

lens

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

instrument cluster

2шт.

12

D71344

COVER

BOOT rubber

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

special

12шт.

14

D71346

TAIL LAMP,12V

BULB warning, No. 168

9шт.

15

W10478

LAMP

BULB illumination, No. 194

3шт.

16

A47123

SOCKET/RECEPTACLE

SOCKET lamp

9шт.

17

A47125

PEDESTAL

SOCKET lamp, green

3шт.

18

H422758

GASKET,1.52mm Thk

housing

1шт.

19

H422766

CLIP, SPRING

CLIP gauges

12шт.

20

129-15

NUT,#6-32

3шт.

21

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

machine, pan head slotted, plated, No. 10 - 24 NC x 1/2"

4шт.

HEX NUT USED WITH 182 516 #21 IS 129 17

1шт.
