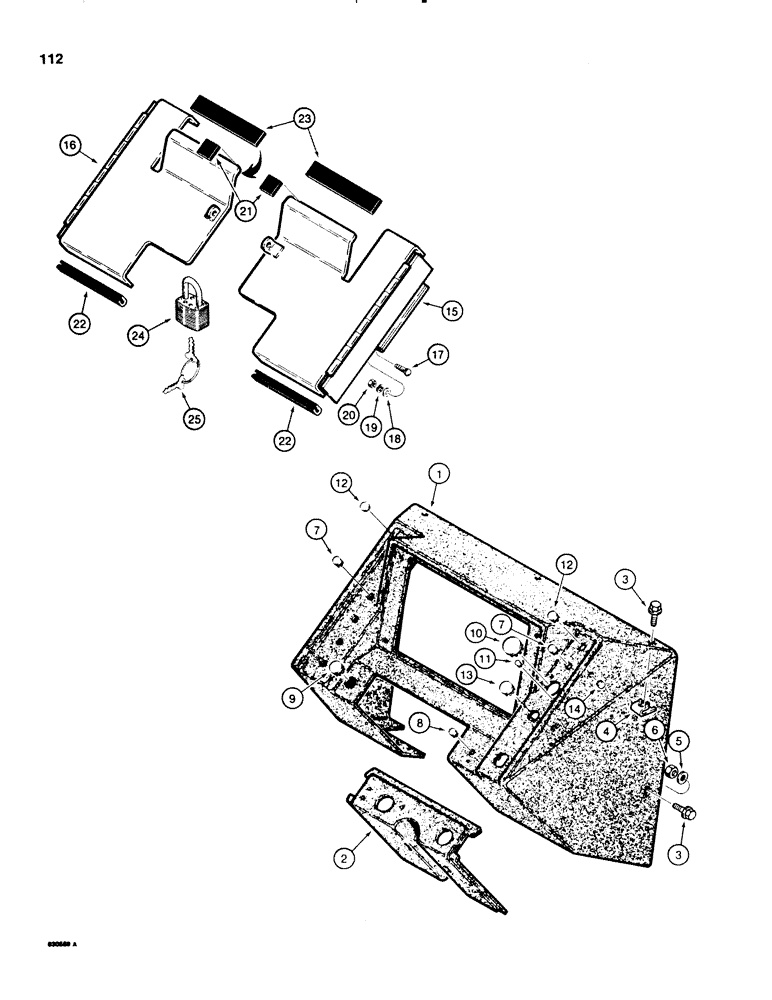

Запчасти Case 580E (112) - INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D123199

PANEL

INSTRUMENT PANEL tractor

1шт.

Ref #1 D123199 instrument panel Panel has

1шт.

four #10 24 nuts molded into panel, used to accept screws which mount instrument cluster D91122.

1шт.

2

D123198

PANEL, INSTRUMENTS

BRACKET steering column and controls

1шт.

3

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

5шт.

4

131-641

NUT

u type, 5/16" - 18 NC

3шт.

5

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

4шт.

8

353-403

PLUG,Dome, .437" hole, Nylon

If used Dome, .437" hole, Nylon

2шт.

9

353-407

PLUG,Dome, .687" hole, Nylon

nylon, 11/16", if used

1шт.

10

353-411

PLUG,Dome, 1.000" hole, Nylon

If used Dome, 1.000" hole, Nylon

1шт.

11

353-400

PLUG,Dome, .250" hole, Nylon

If used Dome, .250" hole, Nylon

2шт.

12

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1-2шт.

13

353-408

PLUG,Dome, .750" hole, Nylon

nylon, 3/4", if used

1шт.

14

353-401

PLUG,Dome, .312" hole, Nylon

nylon, 5/16", if used

4шт.

15

D90320

COVER

anti vandalism, right hand, if used

1шт.

16

D90321

COVER

anti vandalism, left hand, if used

1шт.

17

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

plated, 1/4" - 20 NC x 3/4"

4шт.

18

195-102

WASHER,1/4"

flat, plated, 1/4"

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

21

D83236

PAD

cushion

2шт.

22

D95462

MOLDING

TRIM edge, 9" (229 mm) cut to fit two places

1шт.

23

D66072

SEALING STRIP

cushion

2шт.

24

D93753

PADLOCK

includes keys, Includes: Ref. 25

1шт.

25

R29555

KEY

for Master padlock only

2шт.

25

D93751

SET OF 2 KEYS

KEY for Yale padlock only

2шт.
