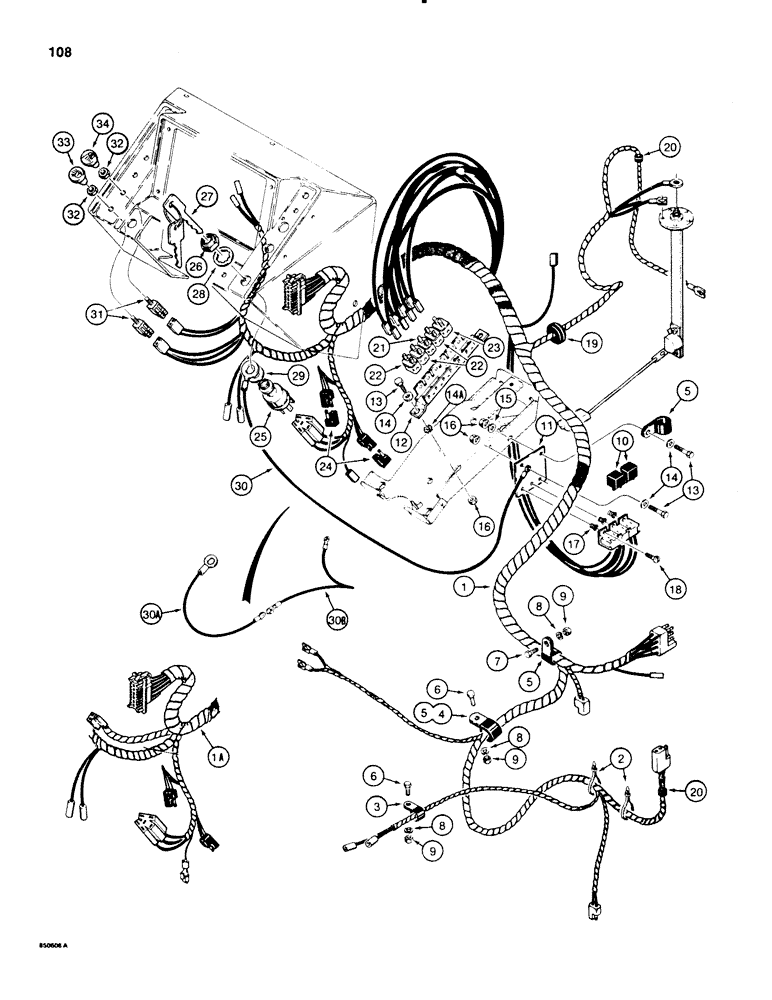

Запчасти Case 580E (108) - MAIN WIRING HARNESS AND CONNECTIONS, MODELS WITHOUT TEST SWITCH AND SOLENOID (04) - ELECTRICAL SYSTEMS

1a

D137337

HARNESS

main, used on models with Bosch alternator with electric tachometer

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

3

49845

CLAMP

harness, lower

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

harness, center, models without cab, but with flasher lamps

1шт.

4

R21385

CLAMP

harness, center, models with cab

1шт.

5

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

harness

3шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

D128310

RELAY

30 amperes

2шт.

Ref. 10 D128310 relay is marked 40 amp on the relay this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

11

D127957

SUPPORT

BRACKET mounting, harness to steering column support bracket

1шт.

Ref #11, #17, #18 Socket showing in

1шт.

illustration which screws to Ref #11 bracket is part nbr S237214.

1шт.

12

D75355

BRACKET

circuit breaker

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

14

195-102

WASHER,1/4"

flat, plated, 1/4"

4шт.

14a

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER internal external tooth lock, plated, 1/4"

2шт.

15

195-2011

WASHER,5/16" x 1" x .083"

flat, special, 1/4"

1шт.

16

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER plated, 1/4" - 20 NC

3шт.

17

D123827

NUT

RETAINER threaded insert

3шт.

18

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

machine, pan head slotted, No. 10 - 32 NF x 1/2"

3шт.

19

A145925

GROMMET

harness, fuel gauge sender wire, at firewall

1шт.

20

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

harness, at floorplate

2шт.

21

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER 10 amperes

1шт.

22

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER 15 amperes

3шт.

23

D84689

CIRCUIT-BREAKER

CIRCUIT BREAKER 25 amperes, cab circuit only, if used

1шт.

24

L71879

DIODE ELEMENT,400V, 3A

DIODE isolation

2шт.

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY, includes keys, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

KEY SWITCH without keys

1шт.

26

A77314

NUT

key switch mounting

1шт.

27

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

28

193-108

LOCK WASHER,Int Tooth, 1"

WASHER internal tooth lock, 1"

1шт.

29

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

flat, special, 1"

1шт.

30

D127037

ELECTRICAL WIRE

WIRE ground, ignition switch, no longer available

1шт.

order D133074 and D133075 ground wires, items 30A and 30B

1шт.

30a

D133074

ELECTRICAL WIRE

WIRE ground, ignition switch, used with item 30B wire

1шт.

30b

D133075

ELECTRICAL WIRE

WIRE ground, used with item 30A wire

1шт.

31

D74330

SWITCH

lamp, Includes: Ref. 32

2шт.

32

N7557

NUT

special, switch retaining, 3/8" - 24 NF

1шт.

33

D70446

KNOB

lamp switch, lower

1шт.

34

D70448

KNOB

lamp switch, flood, upper

1шт.
