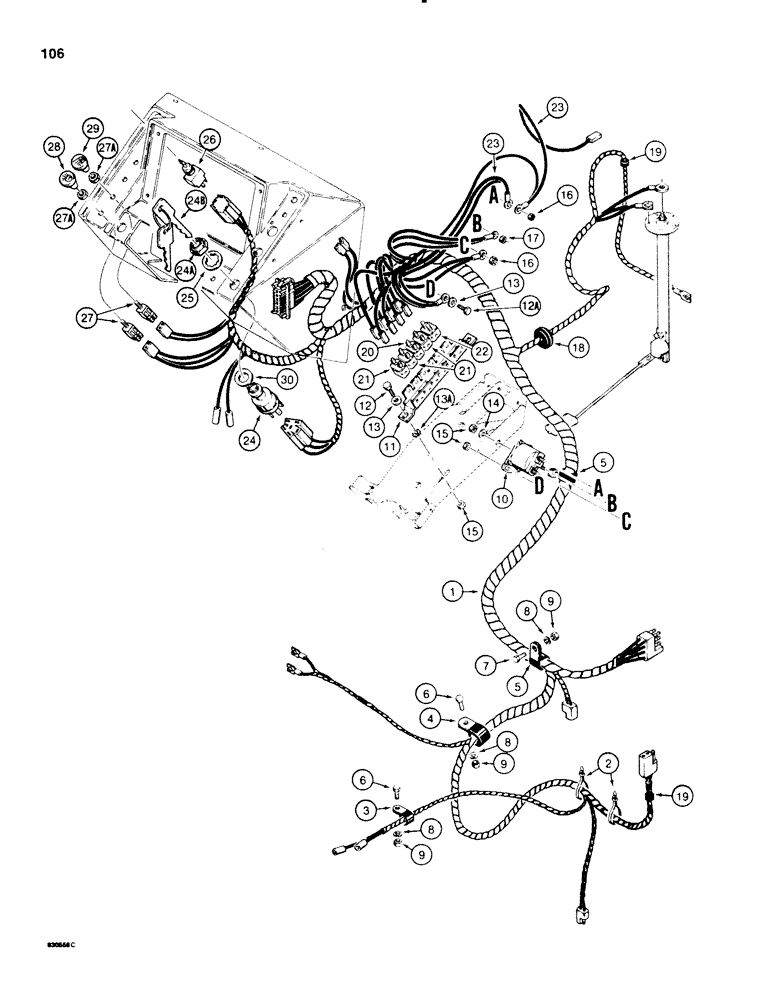

Запчасти Case 580E (106) - MAIN WIRING HARNESS AND CONNECTIONS, MODELS WITH TEST SWITCH AND SOLENOID (04) - ELECTRICAL SYSTEMS

1

D88038

HARNESS

main

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

3

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

harness, lower

1шт.

4

49838

CLAMP

harness, center, models without cab or flasher lamps

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

harness, center, models without cab, but with flasher lamps

1шт.

4

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

harness, center, models with cab

1шт.

5

D88051

CLAMP

harness, upper, models without cab or flasher lamps

2шт.

5

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

harness, upper, models with cab or flasher lamps

2шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

A77311

SWITCH

SOLENOID electrical

1шт.

11

D75355

BRACKET

circuit breaker

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12a

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

13

195-102

WASHER,1/4"

flat, plated, 1/4"

4шт.

13a

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER internal external tooth lock, plated, 1/4"

2шт.

14

195-2011

WASHER,5/16" x 1" x .083"

flat, 1/4", special

1шт.

15

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER plated, 1/4" - 20 NC

3шт.

16

193-1009

NUT,Keps, w/LW, 5/16"-18

AND LOCK WASHER plated, 5/16" - 18 NC

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER plated, No. 10 - 32 NF

1шт.

18

A145925

GROMMET

harness, fuel gauge sender wire, at firewall

1шт.

19

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

harness, at floorplate

2шт.

20

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER 10 amperes

1шт.

21

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER 15 amperes

3шт.

22

D84689

CIRCUIT-BREAKER

CIRCUIT BREAKER 25 amperes, cab circuit only, if used

1шт.

23

D88040

HARNESS

WIRE solenoid to circuit breaker

2шт.

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY, includes keys, Includes: Ref. 24 - 24B

1шт.

24

NSS

NOT SOLD SEPARAT

KEY SWITCH without keys

1шт.

24a

A77314

NUT

key switch mounting

1шт.

24b

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

25

193-108

LOCK WASHER,Int Tooth, 1"

WASHER internal tooth lock, 1"

1шт.

26

D75360

SWITCH

test, warning lamp

1шт.

27

D74330

SWITCH

lamp, Includes: Ref. 27A

2шт.

27a

N7557

NUT

special, switch retaining, 3/8" - 24 NF

1шт.

28

D70446

KNOB

lamp switch, lower

1шт.

29

D70448

KNOB

lamp switch, flood, upper

1шт.

30

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

flat, special, 1"

1шт.
