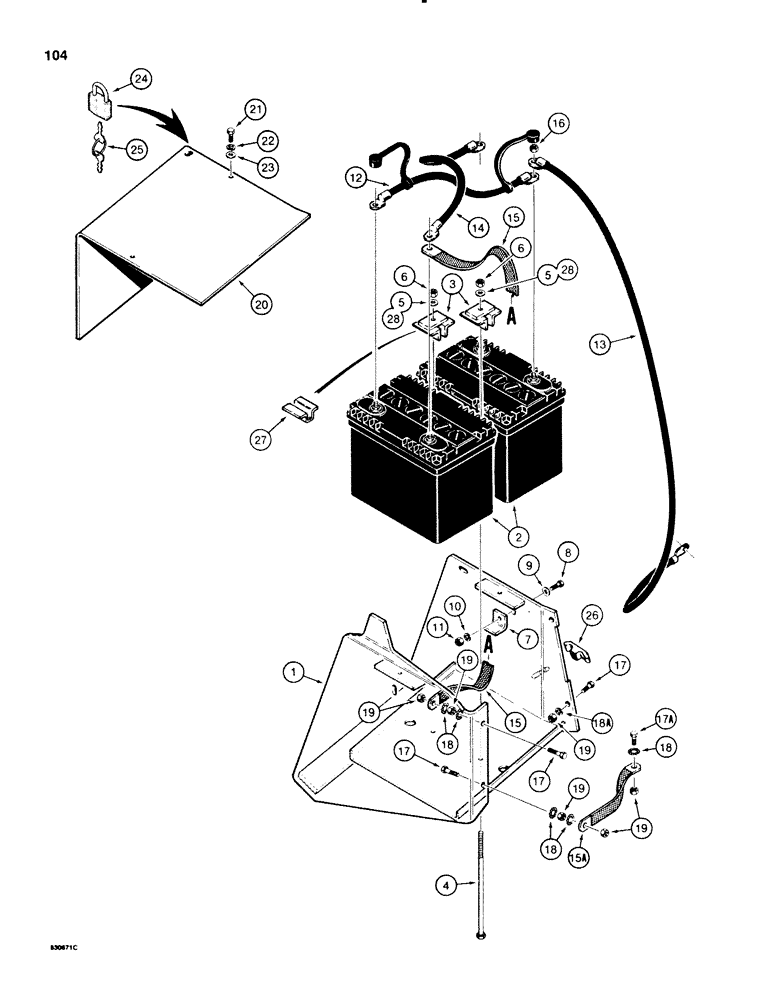

Запчасти Case 580E (104) - BATTERIES AND CABLES, COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

D120634

BOX

battery

1шт.

2

D127414

DRY BATTERY

12 volt, order BMF28S

2шт.

3

D124322

BRACKET

battery hold down, no longer available, for service order

1шт.

2, D135006 bracket and, 2, 195-2174 washer, see items 27 and 28

2шт.

4

115-218

BOLT,Hex, 3/8" - 16 x 10", Gr 2

2шт.

5

195-525

WASHER,3/8", SAE

flat, plated, 3/8" bolt size, 13/32" ID x 13/16" OD x 1/16" thick

1шт.

used with D124322 bracket

2шт.

6

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

7

D42582

SUPPORT

battery

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

D126410

CABLE

positive jumper

1шт.

13

D126411

CABLE

positive

1шт.

14

D126412

CABLE

negative jumper

1шт.

15

D120366

STRAP

negative ground

1шт.

15a

D73383

STRAP

ground

1шт.

16

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

hex, battery terminal, 3/8" - 16 NC

4шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

17a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

193-72

LOCK WASHER

internal external tooth lock, plated, 3/8"

5шт.

18a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

20

D120633

COVER

battery box

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

24

D93753

PADLOCK

includes keys, Includes: Ref. 25 - 26

1шт.

25

R29555

KEY

for Master padlock only

2шт.

25

D93751

SET OF 2 KEYS

KEY for Yale padlock only

2шт.

26

D128965

CLAMP

replaces existing loader lift tube clamp on models with dual battery cold start system, uses existing lift tube clamp

1шт.

mounting hardware

1шт.

27

D135006

BRACKET

battery hold down

2шт.

28

195-2174

WASHER,13/32" x 2" x .109"

flat, plated, 3/8" bolt size, 13/32" ID x 2" OD x 1/8" thick, used

1шт.

with D135006 bracket

2шт.
