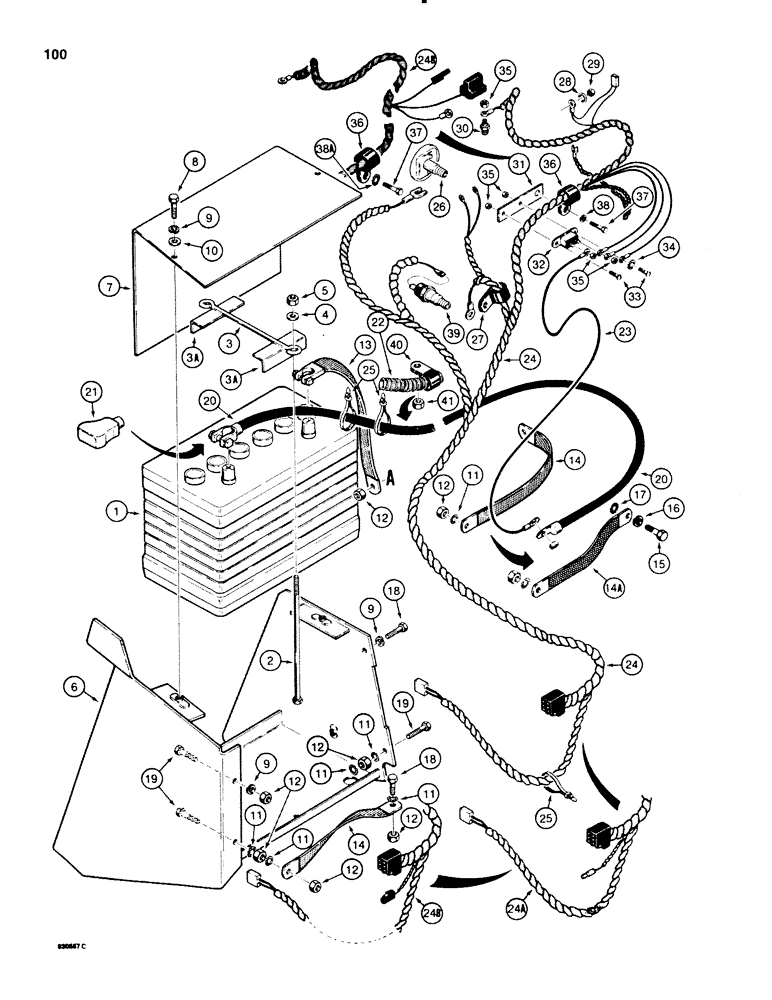

Запчасти Case 580E (100) - BATTERY AND ENGINE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

12 volt, order BMF31E battery, see note

1шт.

For use on models without a cold start system. For models with a cold start system, See Figure 104.

1шт.

2

115-218

BOLT,Hex, 3/8" - 16 x 10", Gr 2

2шт.

3

D55561

RETAINER

battery hold down, see note

1шт.

For use on models without a cold start system. For models with a cold start system, See Figure 104.

1шт.

3a

D125079

BRACKET

battery hold down, see note

2шт.

For use on models without a cold start system. For models with a cold start system, See Figure 104.

1шт.

4

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

5

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

6

D93030

BOX

battery, see note

1шт.

For use on models without a cold start system. For models with a cold start system, See Figure 104.

1шт.

7

D86490

COVER

battery box

1шт.

For use on models without a cold start system. For models with a cold start system, See Figure 104.

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

11

193-72

LOCK WASHER

internal external tooth lock, plated, 3/8"

6шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

13

D83485

CABLE,300mm L

STRAP negative, at battery, see note

1шт.

For use on models without a cold start system. For models with a cold start system, See Figure 104.

1шт.

14

D73383

STRAP

negative, frame and chassis to starter, 13", 330 mm, long, uses strap at starter with 10 mm mounting hardware

1шт.

14a

D127018

STRAP

negative, mounts from chassis to cylinder block, 13", 330 mm, long, uses 12 mm mounting bolt, item 15, if used

1шт.

15

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex head, plated, 12 mm - 1.75 x 25 mm (8.8) if used

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

1шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used Ext-Int Tooth, 1/2"

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

See note Hex, 3/8"-16 x 1 1/2", G5

3шт.

For use on models without a cold start system. For models with a cold start system, See Figure 104.

1шт.

20

D86724

CABLE

positive, see note, Includes: Ref. 21

1шт.

For use on models without a cold start system. For models with a cold start system, See Figure 104.

1шт.

21

383619R1

COVER

positive cable terminal

1шт.

22

D88060

LOOM

SLEEVE positive cable, 56", 1422 mm, long, cut to required length from D99461, see below

1шт.

23

D67876

ELECTRICAL WIRE

WIRE solenoid to circuit breaker, used on models with Delco Remy alternator

1шт.

24

D127283

HARNESS

front, used on models with Delco Remy alternator, with test switch and solenoid, See Figure 106

1шт.

24a

D127911

HARNESS

front, used on models with Delco Remy alternator, without test switch and solenoid, See Figure 108

1шт.

24b

D133352

HARNESS

front, used on models with Bosch alternator, with electric tachometer

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

26

REF

INSTRUCTION

SENDER air cleaner restriction indicator, See Figures 16 and 18 for air cleaner and connecting parts

1шт.

27

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

p type, harness to filter, harness, 1-5/32 inch ID

1шт.

28

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

29

825-1106

NUT,Hex, M6, Cl 8

hex, plated, 6 mm - 1

1шт.

30

D65446

SENDER UNIT

SENDER engine water temperature

1шт.

D99461

LOOM

SLEEVE bulk, 80" (2032 mm) long

1шт.

31

D123602

PLATE

circuit breaker mounting, if used

1шт.

32

A22877

BREAKER,40A

CIRCUIT BREAKER 40 amperes, used on models with Delco Remy alternator

1шт.

33

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW pan head slotted, No. 10 - 32 NF x 1/2", if used

2шт.

34

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , If used Ext-Int Tooth, #10

1шт.

35

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER plated, No. 10 - 32 NF

1-5шт.

36

T42284

CLAMP

harness mounting

1шт.

37

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex head, plated, 12 mm - 1.75 x 25 mm (8.8)

1шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

1шт.

38a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used Ext-Int Tooth, 1/2"

1шт.

39

A162297

SWITCH

SENDER oil pressure gauge

1шт.

40

D94397

CLAMP

cable to frame bolt

1шт.

41

129-183

NUT,5/8"-11, G8

See Figure 584, Ref. 2 for frame mounting bolt 5/8"-11, G8

1шт.
