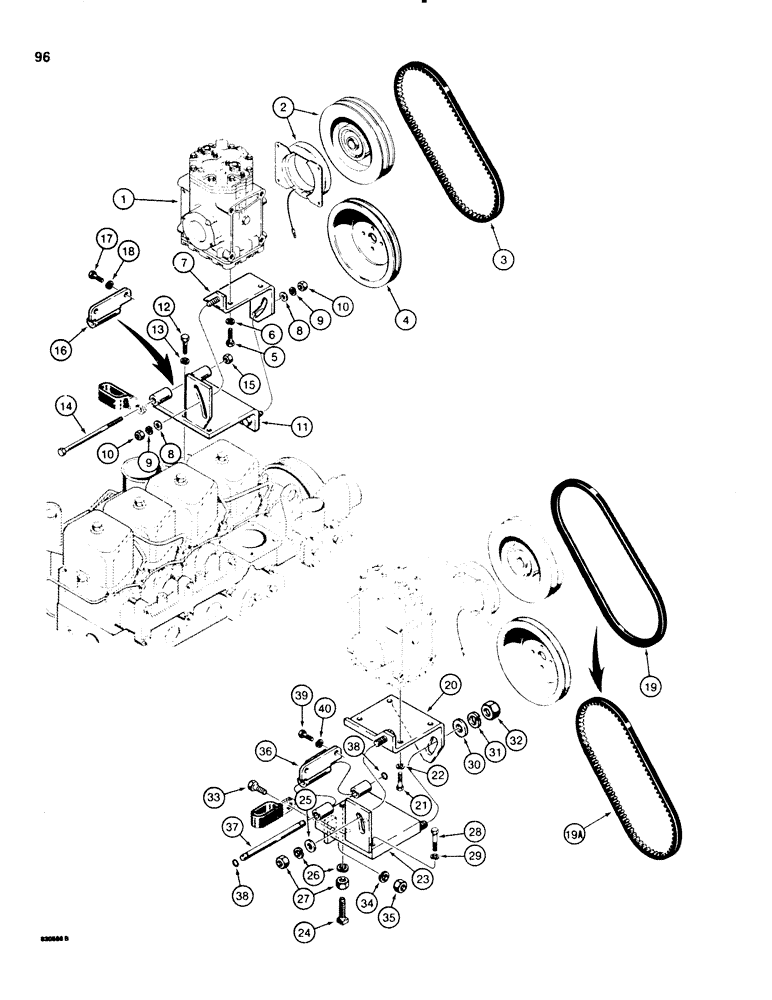

Запчасти Case 580E (096) - AIR CONDITIONING COMPRESSOR MOUNTING, BOLT-ON HINGE BRACKET, (04) - ELECTRICAL SYSTEMS

1

A141060

COMPRESSOR

ASSEMBLY, air conditioning, See Figure 92

1шт.

1

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured, A/C COMPRESSOR

1шт.

1

1924005C1

CORE-A/C COMPRESSOR

Return Number, A/C COMPRESSOR

1шт.

2

A162008

CLUTCH

ASSEMBLY, complete, with mounting bolts

1шт.

3

D84316

V-BELT,12.70 mm W x 1016.00 mm L

Compressor 12.70 mm W x 1016.00 mm L

1шт.

4

J903221

PULLEY

compressor drive

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

D121749

BRACKET

compressor base, no longer used, for service order items 20, 23, and 24 below, and items, 3 - 28, 30, 31, 32, 35, 37, and, 2 - 38

1шт.

8

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

D121742

ANCHOR

PLATE compressor mounting, no longer used, for service order items 20, 23, and 24 below, and items, 3 - 28, 30, 31, 32, 35, 37, and, 2 - 38

1шт.

12

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

13

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

3шт.

14

113-2419

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

hex head, plated, 1/2" - 13 NC x 6-1/2"

1шт.

15

131-70

NUT,1/2"-13, GB

NUT hex, self locking, plated, 1/2" - 13 NC

1шт.

16

D121743

HINGE

BRACKET hinge, compressor side, no longer used, for service order D127528 bracket, item 36

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

D128065

BELT

Drive, Compressor, no Longer Used, for Service Order D84316 Drive Belt

1шт.

19a

D84316

V-BELT,12.70 mm W x 1016.00 mm L

Compressor 12.70 mm W x 1016.00 mm L

1шт.

20

D128415

BRACKET

compressor base

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

D128414

ANCHOR

PLATE compressor mounting, includes item 32 nut

1шт.

24

85-828

SET SCREW,Sq Hd, 1/2"-13 x 1 3/4"

square head, cup point, 1/2" - 13 NC x 1-3/4"

1шт.

25

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

1шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

28

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex head, plated, 10 mm - 1.5 x 45 mm (8.8)

3шт.

29

892-1110

LOCK WASHER,M10

WASHER lock, plated (10 mm)

3шт.

30

195-541

WASHER,5/8", SAE

flat, plated, 5/8"

1шт.

31

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

32

129-107

NUT,5/8"-11, G5

1шт.

33

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

36

D127528

HINGE

BRACKET hinge, compressor side

1шт.

37

D127320

SHAFT

PIN shaft, mounting plate to hinge bracket

1шт.

38

A11538

SNAP RING,#50, Ext

Ring, Snap, , pin #50, Ext

2шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
